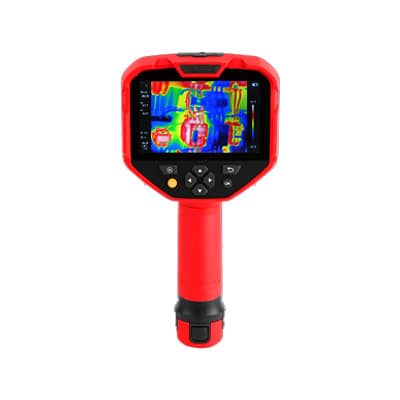

UTi740H Professional Enhanced Thermal Camera:
UTi740H is a professional enhanced thermal camera that is specially designed for industrial use with a wide temperature range:-30℃~650℃. Its large 4.3 ” IPS display screen can display 384×288 IR resolution and a 5MP digital camera. The professional manual focus lens can flexibly adjust the focal length according to different objective distances and provide high-quality images. UTi740H thermal camera also with other features: such as WiFi capability, Isotherm, on-screen analyzer, etc. It is a perfect troubleshooting tool for many industrial applications.
Are you trying to find a good, thermal camera? Yes, this is the perfect moment and place for you. Tools Bangladesh is offering testing supplies and tools in Bangladesh. As a result, You could be able to purchase the desired tool from us in Bangladesh with the most affordable price and delivery options.
Key Features :
- 4.3″ IPS display (800×480)
- IR resolution:384×288
- Temperature measurement range: -30℃ to 650℃
- On-screen analyzer:5 Points/1 Line/5 Rectangles/5 Circles
- Digital camera resolution: 5MP
- Focus: Manual focus
- Digital zoom: 2x, 4x
- Image modes: Thermal, Visual image, Fusion, PIP
- Color palettes: 7(White hot, Black hot, Red hot, Ironbow, HC Rainbow, Rainbow, Lava)
- Isotherm:2(Auto/Manual)
- Wi-Fi connection through Mobile App
- PC software: analysis and real-time image projection
- 5200mAh replaceable battery pack (Type-C rechargeable)
- IP54
- 2m drop-proof
Specifications:
| Technical Data |
| IR resolution (Pixels) |
384×288 |
| Display |
4.3″ IPS (800×480) |
| Field of view(FOV) |
28°×21° |
| Thermal sensitivity(NETD) |
≤60mK |
| Spatial resolution(IFOV) |
1.3mrad |
| Frame rate |
≤25Hz |
| Spectral range |
8~14µm |
| Focus |
Manual |
| Temperature measurement range |
-30℃ ~ 650℃ |
| Accuracy |
-20℃ ~ 650℃, ±2℃ or ±2%
whichever is greater (the ambient temperature at 25℃) |
| Emissivity |
0.01~1.00 adjustable (0.95 default) |
| Functions |
| Colour palettes |
7
(White hot, Black hot, Red hot, Ironbow, Rainbow HC, Rainbow, Lava) |
| Image modes |
Thermal, Visual image, Fusion, PIP |
| On-screen analyzer |
5 Points/1 Line/5 Rectangles/5 Circles |
| Digital camera resolution |
5MP |
| Digital zoom |
2x, 4x |
| Hi/Lo temperature alarm |
Icon |
| Isotherm |
Auto/Manual |
| Software analysis |
PC+APP |
| Wi-Fi |
√ |
| General Characteristics |
| Battery |
Detachable Li-ion battery pack(3.7V 5200mAh) |
| Battery operation time |
About 5 hours (with Wi-Fi off) |
| USB |
Type-C |
| IP rating |
IP54 |
| Drop-proof |
2m |
| Storage |
32G Micro SD card |
| Image/Video storage format |
BMP |
| Certificates |
CE, UKCA,FCC, RoHS |
| Product net weight |
806g |
| Product size |
266.02mm×126.66mm×136mm |
| Packing Details |
| Standard accessories |
Micro SD card, Type-C USB cable, English manual, Li-ion battery pack, Hand strap |
| Standard individual packing |
Toolbox, Gift box |
| Standard Qty per carton |
1 |
| Standard carton size |
400mm×185mm×345mm |
| Standard carton G.W. |
4.13kg |
