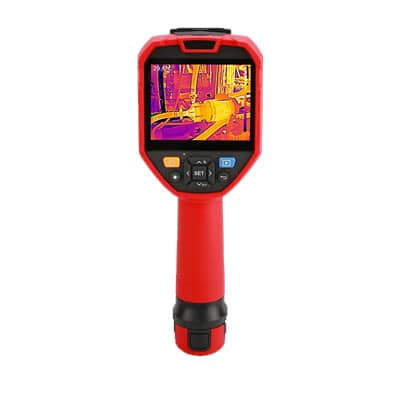

UTi720V Professional Enhanced Thermal Camera :
UTi720V Professional Enhanced Thermal Camera is a wonderful tool for experts. V series features a 5MP digital camera and 3.5′ touch display screen to improve the working efficiency and imaging quality. Build-in laser ranging function meets the need to measure targets at a safe distance. In functions, video & voice recording and Wi-Fi live streaming are added to make the device more playable. It is a reliable measurement tool widely used in the industrial field.
It can be equipped with a macro lens UT-Z003 (Optional), the recommended distance is 4 cm.
Are you looking for an excellent Thermal Camera? Yes, this is the appropriate moment and place for you. Tools Bangladesh is the sole company in Bangladesh offering testing supplies and tools. As a result, you may get the best shipping options and fair pricing on your favourite tool from us in Bangladesh.
Key Features :
- 3.5″ IPS touch display screen (640×480 Pixels)
- IR resolution: 256×192
- Temperature measurement range: -20℃ to 550℃ / -4℉ to 1022 ℉
- Auto alarm for HI/LO temperature
- Auto tracking for HI/LO spot
- On-screen analyzer: 5 Points/1 Line/3 Rectangles/3 Circles
- Isotherm
- With 5MP digital camera
- 2x, 4x magnification
- 4 image modes (Thermal, Visual image, Fusion (T-Mix), PIP)
- QR Code – photo management
- Video & voice recording
- Laser pointer & laser ranging
- LED flashlight
- Wi-Fi connection through Mobile App – Wi-Fi live streaming is supported
- PC software: analysis and real-time image projection
- 5200mAh detachable battery pack (UT-M17)
- IP54
- 2m drop-proof
Specifications:
| Technical Data |
| Display |
3.5″ IPS Touch (640×480) |
| IR resolution(Pixels) |
256×192 |
| Spectral range |
8~14µm |
| Pixel size |
12µm |
| Frame rate |
≤25Hz |
| Thermal sensitivity(NETD) |
≤50mK |
| Focus |
Focus Free |
| Field of view(FOV) |
56°(H) × 42.2°(V) |
| Temperature measurement range |
-20℃~550℃ |
| Accuracy |
±2℃ or ±2% whichever is greater |
| Functions |
| Colour palettes |
White Hot, Black Hot, Red Hot, Rainbow, Rainbow HC, Rainbow, Lava |
| Image modes |
Thermal, Visual image, Fusion (T-Mix), PIP |
| On-screen analyzer |
5 Points/1 Line/3 Rectangles/3 Circles |
| Isotherm |
Auto/Manual |
| Hi/Lo temperature alarm |
LCD animation, LED flashlight, Buzzer |
| Hi/Lo temperature tracking |
√ |
| Digital camera resolution |
5MP |
| Digital zoom |
2x, 4x |
| Video recording |
√ |
| Voice recording |
√ |
| Wi-Fi |
√ |
| Wi-Fi live streaming |
√ |
| LED lighting |
√ |
| Laser pointer |
√ |
| Laser distance measurement |
√ |
| Analysis software |
PC+APP |
| General Characteristics |
| Battery |
5200mAh detachable Li-ion battery pack (UT-M17) |
| Operating time |
≥4 hours (with Wi-Fi off) |
| USB |
Type-C |
| Storage |
32GB Micro SD card |
| Image storage format |
JPG |
| Video storage format |
AVI |
| Protection |
IP54 & 2m drop proof |
| Certificates |
CE, UKCA, FCC, RoHS |
| Languages |
EN, FR, DE, IT, ES, SV, PL, CZ |
| Weight |
654g |
| Dimension |
260mm×97mm×99mm |
| Packing Details |
| Standard accessories |
Type-C USB cable, Micro SD card, Li-ion battery pack×2, Quick Start Guide, Documents Download Operation Guide
Macro Lens–UT-Z003 (Optional)
|
| Standard individual packing |
Toolbox & Gift Box |
| Standard Qty per carton |
1pcs |
| Standard carton size |
400mm×185mm×345mm |
| Standard carton G.W. |
4kg |
