Name: UTi384M Intelligent Pro-grade Thermal Camera
Brand: Uni-T
Availability: InStock

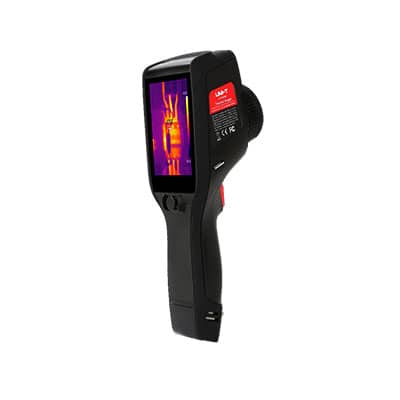

UTi384M Intelligent Pro-grade Thermal Camera:

UTi384M inherits the classic functions of high-end infrared thermal imagers, with a simple appearance and ergonomic design. The touch-display screen menu navigation interface is convenient for users to operate easily. There are professional tips for each step so that first-time users can also become experts! UTi192M/UTi384M is equipped with high-intensity light, so you can easily take clear visible light and infrared contrast pictures, making it easier to find abnormalities. We also offer a wide range of high-quality optional infrared lenses with higher temperatures (1500℃ ) for different applications.

Are you trying to find a good, thermal camera? Yes, this is the perfect moment and place for you. Tools Bangladesh is offering testing supplies and tools in Bangladesh. As a result, You could be able to purchase the desired tool from us in Bangladesh with the most affordable price and delivery options.

N/A

Specifications:

Technical Data
IR resolution (Pixels)	384×288
Display	4” LCD Touch (800×480)
Field of view(FOV)	28.4°×21.5°
Thermal sensitivity(NETD)	≤45mK
Spatial resolution(IFOV)	1.29mrad
Frame rate	≤25Hz
Spectral range	7.5~14µm
Focus	Manual
Temperature measurement range	-20℃~650℃（standard lens） 650~1500℃ (optional lens)
Accuracy	±2℃ or ±2% whichever is greater
Emissivity	0.01~1.00 adjustable (0.95 default)
Functions
Color palettes	8 (White hot, Fulgurite, Ironbow, Hot iron, Medical, Arctic, Rainbow 1, Rainbow 2)
Image modes	Thermal,Visual image,Fusion,PIP
On screen analyzer	5 Points/2 Lines/5 Rectangles/5 Circles
Digital camera resolution	5MP
Digital zoom	1.0~4x continuous
Hi/Lo temperature alarm	Icon,LED flashlight,Buzzer
Isotherm	Above, Below
Software analysis	PC
Video recording	√
Voice recording	√
Wi-Fi / Bluetooth	√
Bluetooth	√
Laser pointer	√
General Characteristics
Battery	Detachable Li-ion battery (7.2V 2300mAh)
Battery operation time	≥ 4 hours
USB	HDMI,Micro USB
IP rating	IP54
Storage	16GB Internal, 16GB Micro SD card
Image/Video storage format	Pic: JPEG; Video: irgd
Certificates	CE,FCC,RoHS
Product net weight	840g
Product size	274mm×106mm×78mm
Packing Details
Standard accessories	Lithium battery, Adapter, Adapter plugs, USB cable, Wristband, HDMI cable, CTP gloves, Quick start guide, English manual, TF card
Standard individual packing	Toolbox,Gift box
Standard Qty per carton	1
Standard carton size	480mm×370mm×235mm
Standard carton G.W.	7.6kg
