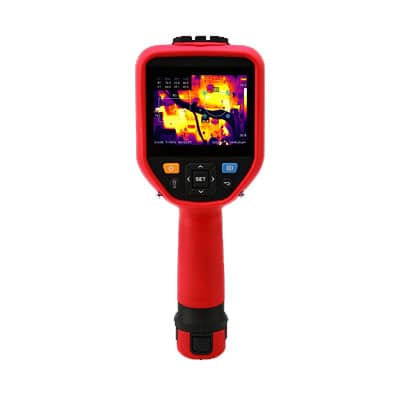

UTi256G Professional Enhanced Thermal Camera:
UTi256G is a professionally enhanced thermal camera that is specially designed for industrial use with a high IR resolution of 256×192 and a wide temperature range:-20℃~550℃. The professional manual focus lens can flexibly adjust the focal length according to different objective distances and provide high-quality images. The 3.5’’ large IPS touch screen makes a more efficient and convenient operation experience for users. UTi256G also supports various outstanding functions: such as Wi-Fi, voice recording, laser pointer, on-screen analyzer， etc. They are perfect troubleshooting tools for many industrial applications.
Are you trying to find a good, thermal camera? Yes, this is the perfect moment and place for you. Tools Bangladesh is the only business in Bangladesh offering testing supplies and tools. As a result, you may get the best shipping options and fair pricing on the tool you want from us in Bangladesh.
Key Features :
- 3.5″ IPS touchscreen (640×480)
- IR resolution:256×192
- Temperature measurement range: -20℃to 550℃
- On-screen analyzer :3 Points/3 Lines/3 Rectangles/3 Circles
- Digital camera resolution: 5MP
- Focus: Manual focus
- Digital zoom: 2x, 4x
- Wi-Fi and Bluetooth connection through Mobile App
- PC software: analysis and real-time image projection
- Voice recording
- Image modes: Thermal, Visual image, Fusion, PIP
- Color palettes: 7(White hot, Black hot, Red hot, Ironbow, HC Rainbow, Rainbow, Lava)
- Isotherm: 5(Auto/Manual/Above/Below/Section)
- 5200mAh replaceable battery pack (Type-C rechargeable)
- IP54
- 2m drop-proof
Specifications:
| Technical Data |
| IR resolution (Pixels) |
256×192 |
| Display |
3.5‘’ Touch (640×480) |
| Field of view(FOV) |
28°×20° |
| Thermal sensitivity(NETD) |
≤40mK |
| Spatial resolution(IFOV) |
1.91mrad |
| Frame rate |
≤30Hz |
| Spectral range |
7.5~14µm |
| Focus |
Manual |
| Temperature measurement range |
-20℃~550℃ |
| Accuracy |
±2℃ or ±2% whichever is greater |
| Emissivity |
0.01~1.00 adjustable (0.95 default) |
| Functions |
| Colour palettes |
7
(White hot, Black hot, Red hot, Ironbow, Rainbow HC, Rainbow, Lava) |
| Image modes |
Thermal, Visual image, Fusion,PIP |
| On-screen analyzer |
3 Points/3 Lines/3 Rectangles/3 Circles |
| Digital camera resolution |
5MP |
| Digital zoom |
2x, 4x |
| Hi/Lo temperature alarm |
Icon |
| Isotherm |
Auto/Manual/Above/Below/Section |
| Software analysis |
PC+APP |
| Voice recording |
√ |
| Wi-Fi / Bluetooth |
√/√ |
| Laser pointer |
√ |
| General Characteristics |
| Battery |
Detachable Li-ion battery pack(3.7V 5200mAh) |
| Battery operation time |
About 5 hours (with Wi-Fi off) |
| USB |
Type-C |
| IP rating |
IP54 |
| Drop-proof |
2m |
| Storage |
8GB Internal
32GB External |
| Image storage format |
JPEG |
| Certificates |
CE, UKCA, FCC, RoHS |
| Product net weight |
880g |
| Product size |
261mm×104mm×97mm |
| Packing Details |
| Standard accessories |
Micro SD card, Type-C USB cable, Wrist strap, English manual, Li-ion battery pack×2, Documents download operation guide card |
| Standard individual packing |
Toolbox, Gift box |
| Standard Qty per carton |
1 |
| Standard carton size |
400mm×185mm×345mm |
| Standard carton G.W. |
3.9kg |
