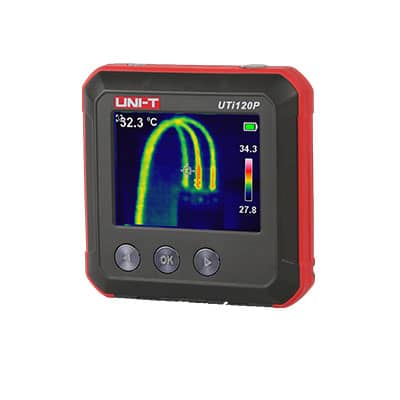

UTi120P Pocket-sized Thermal Camera:
UTi120P thermal camera is mini and portable in size, users can put it into a pocket to go anywhere to identify and troubleshoot problems, it can automatically track the objective’s temperature from -20°C to 400°C, which can be widely used in many applications.
Are you trying to find a good, thermal camera? Yes, this is the perfect moment and place for you. Tools Bangladesh is offering testing supplies and tools in Bangladesh. As a result, You could be able to purchase the desired tool from us in Bangladesh with the most affordable price and delivery options.
Specifications:
| Functions |
☑ Color palettes: 3 (Ironbow, Grey, Rainbow)
☑ Auto tracking and alarm for high/low temperature
☑ PC software analysis
☑ Auto power off: 5/10/30mins(default)/off |
| Technical Data |
| IR resolution (Pixels) |
120×90 |
| Display |
2.4” TFT LCD (320×240) |
| Field of view(FOV) |
50°×38° |
| Thermal sensitivity(NETD) |
≤60mK |
| Spatial resolution(IFOV) |
7.3mrad |
| Frame rate |
≤25Hz |
| Spectral range |
8~14µm |
| Focus |
Focus Free |
| Temperature measurement range |
-20℃~400℃ |
| Accuracy |
±2℃ or ±2% whichever is greater |
| Emissivity |
0.01~1.00 adjustable (0.95 default) |
| General Characteristics |
| Battery |
Fixed Li-ion battery (3.7V 1350mAh) |
| Battery operation time |
≥3.5 hours |
| USB |
Micro USB |
| Drop-proof |
1m |
| Storage |
Up to 32GB Micro SD card |
| Image/Video storage format |
BMP |
| Certificates |
CE, RoHS |
| Product net weight |
125g |
| Product size |
76mm×76mm×24mm |
| Packing Details |
| Standard accessories |
Hand strap, Carrying bag, Micro SD card,
Micro USB cable, English manual, Documents download operation guide card |
| Standard individual packing |
Gift box |
| Standard Qty per carton |
5 |
| Standard carton size |
455mm×145mm×150mm |
| Standard carton G.W. |
2.8kg |
