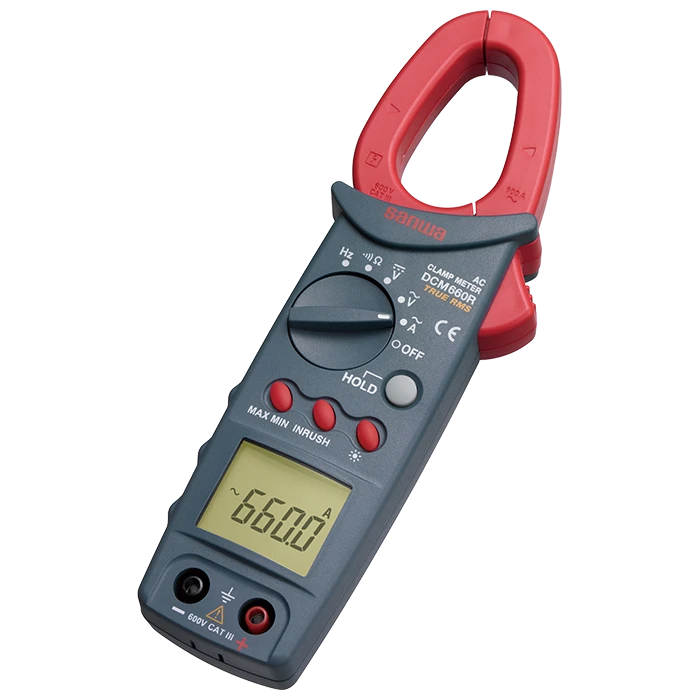

Sanwa DCM660R Clamp Meter

Looking for a high-quality clamp meter for precise electrical measurements? The Sanwa DCM660R Clamp Meter is a professional-grade tool designed for electricians, technicians, and DIY enthusiasts alike. With its advanced features and durable construction, this clamp meter ensures accurate readings for current, voltage, and resistance, making your electrical work safer and more efficient.

The Sanwa DCM660R Clamp Meter features a large, easy-to-read display and a compact design for convenient handling. Its robust clamp allows non-contact current measurement, eliminating the need to disconnect circuits during testing. Perfect for residential, commercial, and industrial applications, this meter combines accuracy, speed, and reliability in one tool.

At Tools Bangladesh, we provide the genuine Sanwa DCM660R Clamp Meter at a competitive price. If you are searching for Sanwa DCM660R Clamp Meter Price in Bangladesh, you’ve come to the right place. Our shop ensures the best deals, quick delivery, and full product support for all your electrical testing needs.

Whether you are upgrading your toolkit or starting out in electrical diagnostics, the Sanwa DCM660R is your go-to clamp meter for precise measurement and dependable performance. Its intuitive interface, safety features, and long-lasting battery make it a must-have for anyone working with electrical circuits.

Buy from Tools Bangladesh today and enjoy a seamless shopping experience, authentic products, and excellent after-sales support. Ensure safety, accuracy, and efficiency with the Sanwa DCM660R Clamp Meter – the professional choice for electrical measurement in Bangladesh.

Key Features

Inrush current measurement (within 100ms/above 10A)
MAX/MIN value hold
Frequency measurement by clamping and using test lead

Specifications

Function	Measuring range	Best accuracy	Resolution	Input impedance
ACA	66/660A	±(2%+5)	0.01A
DCV	600V	±(1%+2)	0.1V	1MΩ
ACV	600V	±(1.2%+5)	0.1V	1MΩ
Frequency (A)	660/6.6k/30k	±(0.2%+1)	0.1Hz
Frequency (V)	660/6.6k/66k/100k	±(0.2%+1)	0.1Hz
Resistance	660Ω	±(1%+7)	0.1Ω
Continuity	Buzzer sounds at less than 30Ω Open voltage: approx. 1.2V

Sampling rate	3 times/sec.
Bandwidth	50-500Hz
Display	6600
Clamp diameter/Conductor size	Φ30mm/10×50mm
Battery	LR03×2
Battery life	Approx. 55 hrs.（Alkaline battery/Backlight off)
Size/Mass	H208×W69×D38mm/Approx. 265g
Safety standards	IEC61010 CAT.Ⅲ600V
