LCD display, Wire tracing, LAN cable mapping, 9 different tone cable status indication

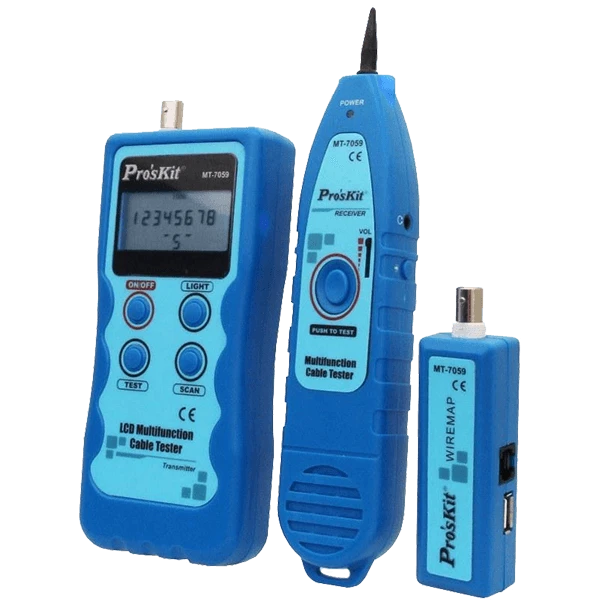

Key Features: Proskit MT-7059 LCD Multifunction Cable Tester
- The wire can be tracked directly in connection with Ethernet service, router, and PC terminal
- Validate and troubleshoot wiring on RJ11/RJ45 cables, Coaxial cable, USB cable, IEEE 1394 cable
- Test cable status for continuity, shorts, opens, miswired, crossover
- 9 different tones selection for convenience use under different environment condition
Specifications: Proskit MT-7059 LCD Multifunction Cable Tester
| MT-7059 Transmitter specifications |
| Indicator |
LCD 53X25mm,with back light |
| Tone frequency |
225kHz |
| Max. distance of transmission |
2km |
| Max. distance of cable map |
300m |
| Max. working current |
≤70mA |
| Tone mode |
9 Tone adjustable |
| Compatible connectors |
RJ45(8 pin) / RJ11(6 pin) / BNC /
USB / IEEE 1394 |
| Continuity test |
LCD (SHORT) |
| Max. signal voltage |
1.5Vp-p |
| Function selection |
3 Push button & 1 Power switch |
| Function and faults LCD display |
LCD display(Wiremap, Tone, Short,
Noadapter, UTP, STP, Low battery) |
| Cable map indication |
LCD (#1~#8) |
| Shielded indication |
LCD (#9) |
| Voltage protection |
AC 60V / DC 42V |
| Low battery display |
LCD (6.5V) |
| Battery type |
DC 9.0V(NEDA 1604/6F22 DC9V ×1pcs) |
| Dimension (LxWxD) |
185X80X32mm |
| MT-7059 Receiver specifications |
| Frequency |
225kHz |
| The Max. working current |
≦70mA |
| Ear jack & LED illumination |
1 & 2 LEDs |
| Battery type |
DC 9.0V(NEDA 1604/ 6F22 DC9V×1) |
| Dimension (LxWxD) |
218X46X29mm |
| MT-7059 Remote unit specifications |
| Compatible connectors |
RJ-45(8 pin), RJ-11(6 pin), BNC, USB,
IEEE 1394 |
| Dimension (LxWxD) |
107X30X24mm |
| Individual packing |
Color box |
Includes: Proskit MT-7059 LCD Multifunction Cable Tester
- Proskit MT-7059 LCD Multifunction Cable Tester
