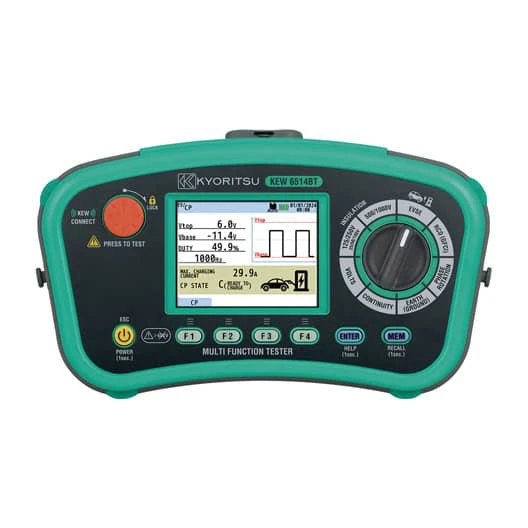

KYORITSU KEW 6514BT MULTI FUNCTION INSTALLATION TESTER:
The KYORITSU KEW 6514BT is a robust multi-function installation tester equipped with Bluetooth connectivity for easy data transfer and remote monitoring. It performs essential electrical tests, including insulation resistance, loop impedance, continuity, and RCD testing, ensuring compliance with safety standards. Compact and user-friendly, the KEW 6514BT is ideal for accurate and efficient testing in professional electrical installation and maintenance tasks.
Are you trying to find a good, Insulation Tester? Yes, this is the perfect moment and place for you. Tools Bangladesh is offering testing supplies and tools in Bangladesh. As a result, You could be able to purchase the desired tool from us in Bangladesh with the most affordable price and delivery options.
Key Features:
Versatile tester supporting various electrical testing for completion inspections, maintenance and troubleshooting.
EVSE dedicated test function offers extra by combination use of EVSE ADAPTER.
(EVSE： Electric Vehicle Supply Equipment)
- Offers various tests for electrical installation
Insulation / Earth / Continuity / Motor rotation / 2-Wire Loop / RCD / Phase rotation / Frequency / AC V / SPD(Varistor)
- Auto memory
- Color LCD Display
- Dedicated function for EVSE
Specifications:
|
Insulation resistance
|
SPD (Varistor) |
| Test voltage |
25V |
50V |
100V |
125V |
250V |
500V |
1000V |
Max.1000V |
Measuring range
(Auto-ranging) |
2.000/20.00MΩ |
2.000/20.00/200.0MΩ |
2.000/20.00/
200.0/1000MΩ |
2.000/20.00/
200.0/2000MΩ |
0 to 1000V
(goes up by 1V) |
| Accuracy |
±2%rdg±2dgt
(0.100 to 10.00MΩ)
±5%rdg
(other)
|
±2%rdg±2dgt
(0.100 to 25.0MΩ)
±5%rdg
(other) |
±2%rdg±2dgt
(0.100 to 50.0MΩ)
±5%rdg
(other) |
±2%rdg±2dgt
(0.100 to 100.0MΩ)
±5%rdg
(other) |
±2%rdg±2dgt
(0.100 to 1000MΩ)
±5%rdg
(other) |
±5%rdg±5dgt |
| Rated current |
1.0 to 1.2ｍA |
－ |
0.025
MΩ |
0.05
MΩ |
0.1
MΩ |
0.125
MΩ |
0.25MΩ |
0.5MΩ |
1MΩ |
－ |
| Short circuit current |
1.5mA max |
|
Earth
| Range |
20.00/200.0/2000Ω (Auto-ranging) |
| Accuracy |
±2%rdg±0.08Ω (20.00Ω)
±2%rdg±3dgt (200/2000Ω) |
Loop impedance (L-PE (2-wire))
| Rated voltage |
85 to 260V (50/60Hz) |
| Impedance range |
200.0/2000Ω |
| Accuracy |
±3%rdg±10dgt |
| Measurement current |
L-PE:7mA |
Continuity
| Range |
20.00/200.0/2000Ω (Auto-ranging) |
| Open circuit voltage (DC) |
7 to 14V |
| Measuring current |
200ｍA or more (2Ω or less) |
| Accuracy |
±2.0%rdg±8dgt |
RCD
| Rated voltage |
85 to 440V (50/60Hz) |
Function
|
×1/2, ×1, Ramp |
| 15/30/50/100/200/500mA |
| RCD type |
AC(G) |
| Accuracy |
Trip
cuurent |
×1/2 |
-8 to -2% |
| ×1 |
+2 to +8% |
| Ramp |
-4 to +4% |
| Trip time |
×1/2 |
±1%rdg±2ms |
| ×1 |
EVSE (EV charger)
| Measuring range |
Vtop |
2.0 to 15.0V |
| Vbase |
-15.0 to -2.0V |
| Frequency |
980 to 1020Hz |
| Duty |
10.0 to 96.0% |
Max. charging
current |
6.0 to 80.0A |
| Accuracy |
Vtop |
±4dgt |
| Vbase |
| Frequency |
±0.5%rdg±4dgt |
| Duty |
±10dgt |
Max. charging
current |
Varies depending on the accuracy of duty measurement. |
Volts
| Range |
300.0/600V (Auto-ranging) |
| Measuring range |
Volts |
2 to 600V |
| Frequency |
45 to 65Hz |
| Accuracy |
Volts |
±2%rdg±4dgt |
| Frequency |
±0.5%rdg±2dgt |
Phase rotation
| Measuring range |
Phase rotation |
3 to 600V (45 to 65Hz) |
Moter rotation
check |
0.1 to 2V (1 to 10Hz) |
| Indication |
Clockwise direction: “1.2.3”and clockwise phase sequence icon
Counterclockwise direction: “3.2.1”and counterclockwise phase sequence icon |
General
| Applicable srandards |
IEC 61010-1, IEC 61010-2-030 CAT Ⅳ 300V / CAT Ⅲ 600V Pollution degree 2
IEC 61010-2-034, IEC 61557-1,2,3,4,5,6,7,10, IEC 60529 (IP40) |
| Communication interface |
USB, Bluetooth® 5.0 |
| Power source |
LR6 (AA)(1.5V) × 8 |
| Dimansion |
136(L) × 235(W) × 114(D) mm |
| Weight |
Approx. 1300g (including batteries) |
| Accessories |
7281 (Test leads with remote control switch)
7247 (Distribution board test lead)
7228A (Earth resistance test leads)
8017B (Extension prod long)
8041 (Auxiliary earth spikes [2spaikes/1set])
8923 (Fuse [0.5A/600V]×1 (included), 1 (spare)
9084 (Soft case)
9142 (carrying case)
9151 (Shoulder strap)
9199 (shoulder pad)
LR6(AA) × 8, Instruction manual |
| Optional accessories |
7272 (Precision measurement cord set)
8212-USB (USB adapter)
8259 (Adapter fpr measurement terminal)
8601 (EVSE ADAPTER)
8602 (EVSE ADAPTER) |
