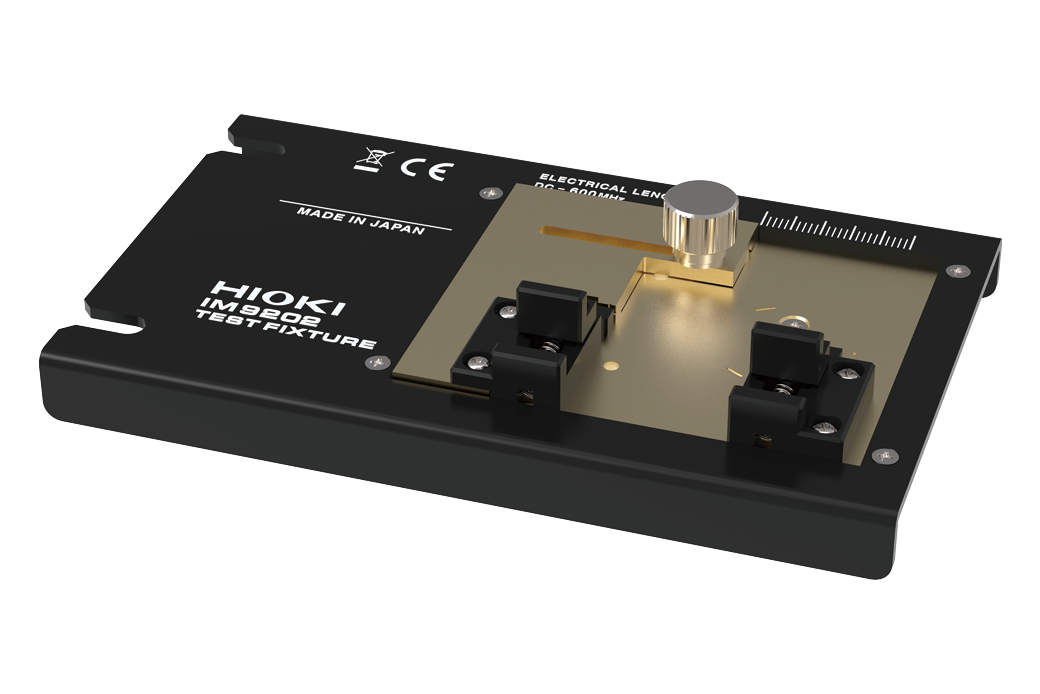

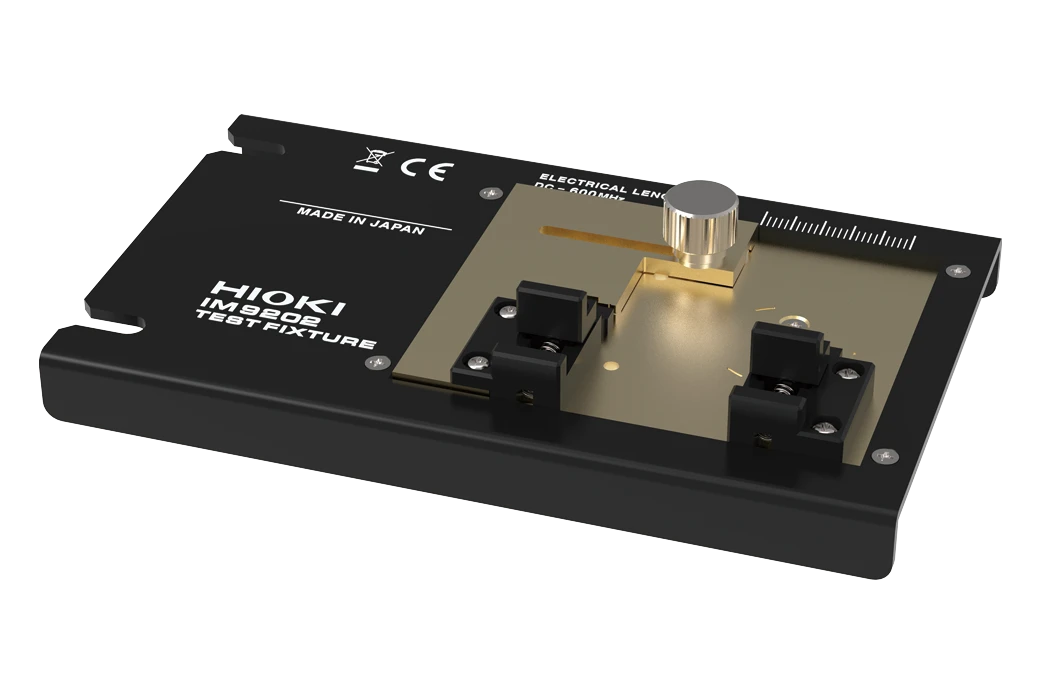

HIOKI TEST FIXTURE IM9202

Home › Hioki
Thumbnail
Shop : Tools Bangladesh
Product ID : 4190
Brand : Hioki
Availability : Out of Stock
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

Hioki LCR Meters and Impedance Analyzers range from DC to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM9202 Test Fixture supports high frequency testing up to 600 MHz when paired with the IM7580 Impedance Analyzer series, and delivers a unique staging mechanism that lets you validate components and devices in various shapes and sizes, including RFID and NFC chips.

Discover precision testing with the HIOKI TEST FIXTURE IM9202, designed for reliable LCR measurements. HIOKI TEST FIXTURE IM9202 Price in Bangladesh offers great value for professionals seeking accurate and stable performance in electrical testing applications. Ideal for labs and industrial environments.

Key Features

  • Test fixture for IMPEDANCE ANALYZER IM7580 Series
  • High frequency testing up to 600 MHz
  • Test the impedance of devices in a diverse range of shapes and sizes, including leaded/though-hole devices, SMD, and RFID and NFC chips
  • Aids in properly identifying self-resonance frequency (SRF) and equivalent series resistance (ESR) to validate component performance

Basic specifications

Frequency range DC to 600 MHz
Measurable DUT LEADED
Axial
• Distance between leads (component length): 1 mm to 25 mm (0.04 in. to 0.98 in.)
• Lead length: 2 mm to 10 mm (0.08 in. to 0.39 in.)
• Height to lead: 2.5 mm or shorter (0.10 in. or shorter)
Radial
• Distance between leads: 2 mm to 26 mm (0.08 in. to 1.02 in.)
• Lead length: 2 mm or longer (0.08 in. or longer)

SMD
• Component length: 1.6 mm to 23 mm (0.06 in. to 0.91 in.)
• Component width: 0.8 mm or longer (0.03 in. or longer)
• Component height: 0.65 mm or longer (0.03 in. or longer)
Electrode structure 2-terminal connection to side electrodes
Maximum voltage ±42 Vpeak (AC+DC)
Supported units IM7580, IM7580A, IM7581, IM7583, IM7585, IM7587
Included accessories H-side lead component clip ×1, L-side lead component electrode ×1, L-side SMD electrode ×1, SMD open correction jig ×1, Short plate ×1, Brush for cleaning ×1, Carrying case ×1, Instruction manual ×1
Included accessories H-side lead component clip ×1, L-side lead component electrode ×1, L-side SMD electrode ×1, SMD open correction jig ×1, Short plate ×1, Brush for cleaning ×1, Carrying case ×1, Instruction manual ×1
Included accessories H-side lead component clip ×1, L-side lead component electrode ×1, L-side SMD electrode ×1, SMD open correction jig ×1, Short plate ×1, Brush for cleaning ×1, Carrying case ×1, Instruction manual ×1

Hioki LCR Meters and Impedance Analyzers range from DC to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM9202 Test Fixture supports high frequency testing up to 600 MHz when paired with the IM7580 Impedance Analyzer series, and delivers a unique staging mechanism that lets you validate components and devices in various shapes and sizes, including RFID and NFC chips.

Discover precision testing with the HIOKI TEST FIXTURE IM9202, designed for reliable LCR measurements. HIOKI TEST FIXTURE IM9202 Price in Bangladesh offers great value for professionals seeking accurate and stable performance in electrical testing applications. Ideal for labs and industrial environments.

Key Features

  • Test fixture for IMPEDANCE ANALYZER IM7580 Series
  • High frequency testing up to 600 MHz
  • Test the impedance of devices in a diverse range of shapes and sizes, including leaded/though-hole devices, SMD, and RFID and NFC chips
  • Aids in properly identifying self-resonance frequency (SRF) and equivalent series resistance (ESR) to validate component performance

Basic specifications

Frequency range DC to 600 MHz
Measurable DUT LEADED
Axial
• Distance between leads (component length): 1 mm to 25 mm (0.04 in. to 0.98 in.)
• Lead length: 2 mm to 10 mm (0.08 in. to 0.39 in.)
• Height to lead: 2.5 mm or shorter (0.10 in. or shorter)
Radial
• Distance between leads: 2 mm to 26 mm (0.08 in. to 1.02 in.)
• Lead length: 2 mm or longer (0.08 in. or longer)

SMD
• Component length: 1.6 mm to 23 mm (0.06 in. to 0.91 in.)
• Component width: 0.8 mm or longer (0.03 in. or longer)
• Component height: 0.65 mm or longer (0.03 in. or longer)
Electrode structure 2-terminal connection to side electrodes
Maximum voltage ±42 Vpeak (AC+DC)
Supported units IM7580, IM7580A, IM7581, IM7583, IM7585, IM7587
Included accessories H-side lead component clip ×1, L-side lead component electrode ×1, L-side SMD electrode ×1, SMD open correction jig ×1, Short plate ×1, Brush for cleaning ×1, Carrying case ×1, Instruction manual ×1

Included accessories H-side lead component clip ×1, L-side lead component electrode ×1, L-side SMD electrode ×1, SMD open correction jig ×1, Short plate ×1, Brush for cleaning ×1, Carrying case ×1, Instruction manual ×1

Included accessories H-side lead component clip ×1, L-side lead component electrode ×1, L-side SMD electrode ×1, SMD open correction jig ×1, Short plate ×1, Brush for cleaning ×1, Carrying case ×1, Instruction manual ×1
