HIOKI SMD TEST FIXTURE IM9201

Home › Hioki
Thumbnail
Shop : Tools Bangladesh
Product ID : 4192
Brand : Hioki
Availability : Out of Stock
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

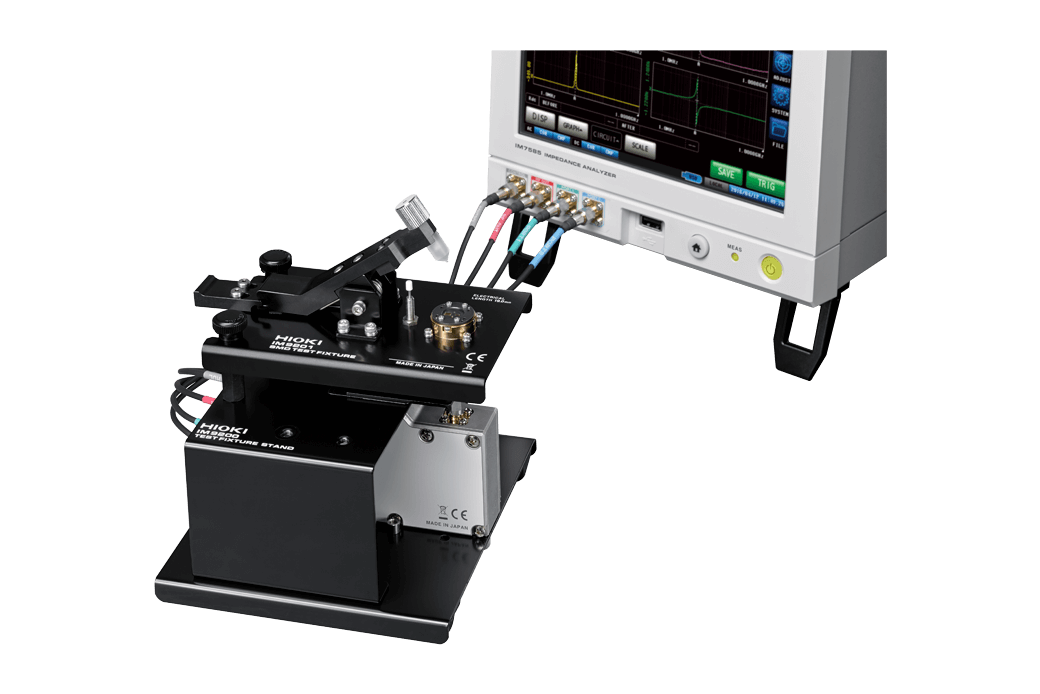

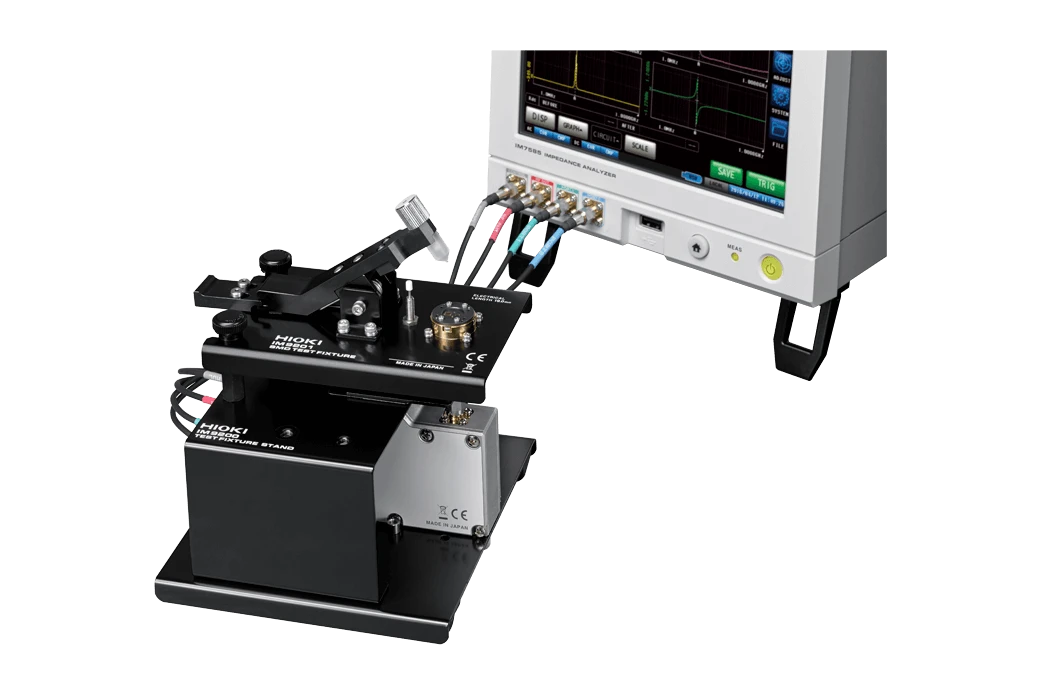

Hioki LCR Meters and Impedance Analyzers range from 1 mHz to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM9201 is a high frequency SMD test fixture for the IM7580 series impedance analyzers that delivers ultimate flexibility by supporting 6 different SMD package sizes.

Ensure precise and reliable SMD testing with the Hioki IM9201. HIOKI SMD TEST FIXTURE IM9201 Price in Bangladesh offers great value for professionals needing accurate component measurement. Ideal for use with LCR meters, this fixture ensures stability and efficiency in high-frequency SMD evaluations.

Key Features

  • SMD TEST FIXTURE exclusively for the IM7580 series
  • 2 device guides let you measure 6 different SMD sizes
  • Definitive 3GHz high frequency analysis made easy
  • Supports SMD sizes 0201, 0402, 0603, 0805, 1206, and 1210 (inch)

Basic specifications

Frequency range DC to 3 GHz
Dimensions of　measurable DUT 0201, 0402, 0603, 0805, 1206, 1210 (inch)
Electrode structure 2-terminal connection to bottom electrodes
Maximum voltage ±42 Vpeak (AC+DC)
Additional error Impedance: ±Ze [%]
Phase: θe = ±0.58 × Ze [° ]
Ze = Ae + (Zse / Zx + Yoe × Zx) × 100
Zx: Impedance measurement value [Ω]
Ae: 4 × f² [%]
Zse: (100 + 500 × f) / 1000 [Ω]
Yoe: (10 + 100 × f) / 1000000 [S]
f [GHz]
Supported units IM7580, IM7580A, IM7581, IM7583, IM7585, IM7587
Included accessories Short plate (5 types), GND plate (2 types), Device guide (2 types), Hexagon socket head bolts ×8, Tip pin (2 types), Knob ×1, Brush for cleaning ×1, Hex driver ×1, Carrying case ×1, Instruction Manual ×1
Included accessories Short plate (5 types), GND plate (2 types), Device guide (2 types), Hexagon socket head bolts ×8, Tip pin (2 types), Knob ×1, Brush for cleaning ×1, Hex driver ×1, Carrying case ×1, Instruction Manual ×1
Included accessories Short plate (5 types), GND plate (2 types), Device guide (2 types), Hexagon socket head bolts ×8, Tip pin (2 types), Knob ×1, Brush for cleaning ×1, Hex driver ×1, Carrying case ×1, Instruction Manual ×1

Hioki LCR Meters and Impedance Analyzers range from 1 mHz to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM9201 is a high frequency SMD test fixture for the IM7580 series impedance analyzers that delivers ultimate flexibility by supporting 6 different SMD package sizes.

Ensure precise and reliable SMD testing with the Hioki IM9201. HIOKI SMD TEST FIXTURE IM9201 Price in Bangladesh offers great value for professionals needing accurate component measurement. Ideal for use with LCR meters, this fixture ensures stability and efficiency in high-frequency SMD evaluations.

Key Features

  • SMD TEST FIXTURE exclusively for the IM7580 series
  • 2 device guides let you measure 6 different SMD sizes
  • Definitive 3GHz high frequency analysis made easy
  • Supports SMD sizes 0201, 0402, 0603, 0805, 1206, and 1210 (inch)

Basic specifications

Frequency range DC to 3 GHz
Dimensions of　measurable DUT 0201, 0402, 0603, 0805, 1206, 1210 (inch)
Electrode structure 2-terminal connection to bottom electrodes
Maximum voltage ±42 Vpeak (AC+DC)
Additional error Impedance: ±Ze [%]
Phase: θe = ±0.58 × Ze [° ]
Ze = Ae + (Zse / Zx + Yoe × Zx) × 100
Zx: Impedance measurement value [Ω]
Ae: 4 × f² [%]
Zse: (100 + 500 × f) / 1000 [Ω]
Yoe: (10 + 100 × f) / 1000000 [S]
f [GHz]
Supported units IM7580, IM7580A, IM7581, IM7583, IM7585, IM7587
Included accessories Short plate (5 types), GND plate (2 types), Device guide (2 types), Hexagon socket head bolts ×8, Tip pin (2 types), Knob ×1, Brush for cleaning ×1, Hex driver ×1, Carrying case ×1, Instruction Manual ×1

Included accessories Short plate (5 types), GND plate (2 types), Device guide (2 types), Hexagon socket head bolts ×8, Tip pin (2 types), Knob ×1, Brush for cleaning ×1, Hex driver ×1, Carrying case ×1, Instruction Manual ×1

Included accessories Short plate (5 types), GND plate (2 types), Device guide (2 types), Hexagon socket head bolts ×8, Tip pin (2 types), Knob ×1, Brush for cleaning ×1, Hex driver ×1, Carrying case ×1, Instruction Manual ×1
