HIOKI SMD TEST FIXTURE IM9110

Home › Hioki
Thumbnail
Shop : Tools Bangladesh
Product ID : 4194
Brand : Hioki
Availability : Out of Stock
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

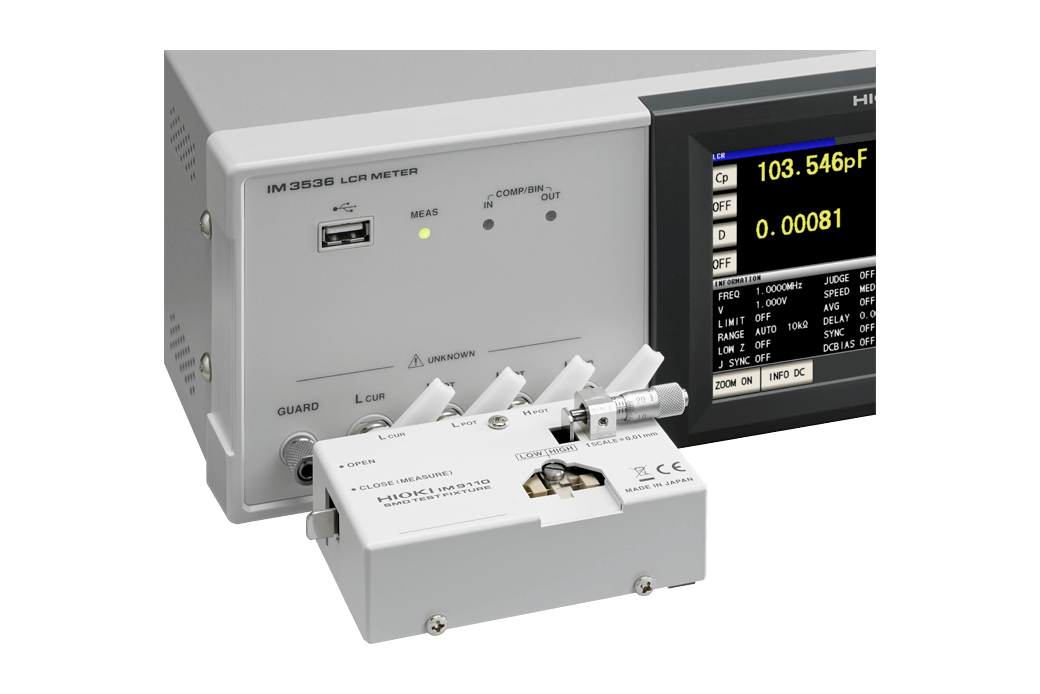

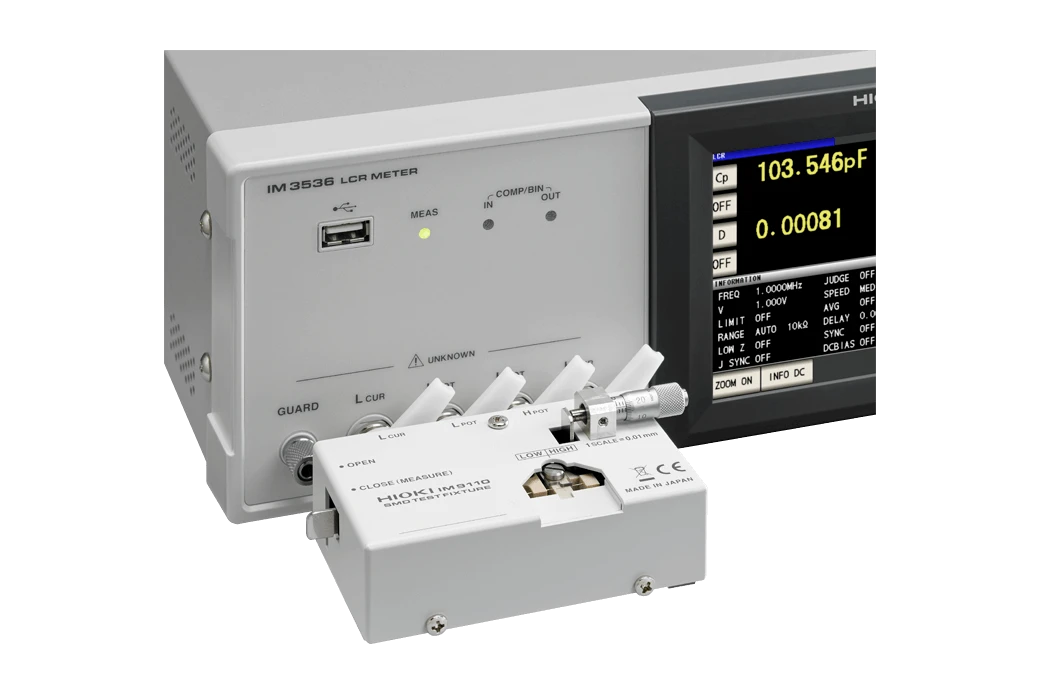

Hioki LCR Meters and Impedance Analyzers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. The IM9110 is a general-purpose SMD test fixture for the IM35xx series of LCR meters/Impedance analyzers that accommodates ultra-small components and delivers repeatable results.

Explore precise surface-mount device testing with the Hioki SMD Test Fixture IM9110. HIOKI SMD TEST FIXTURE IM9110 Price in Bangladesh offers excellent value for advanced electronics analysis. Perfect for laboratories and industries demanding reliable measurement performance.



Key Features

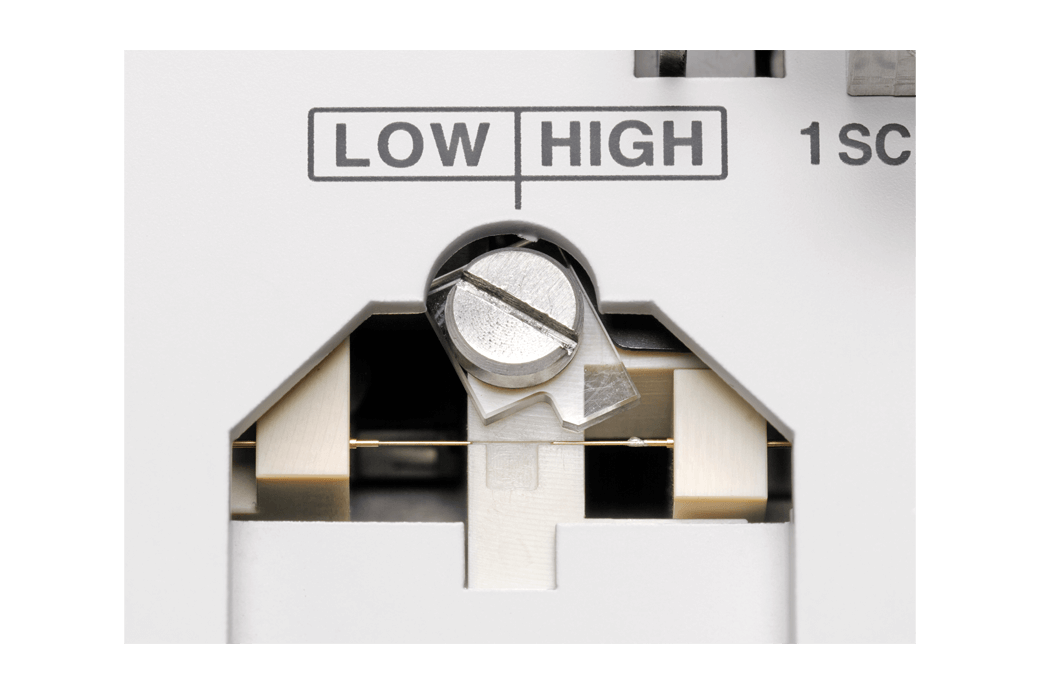

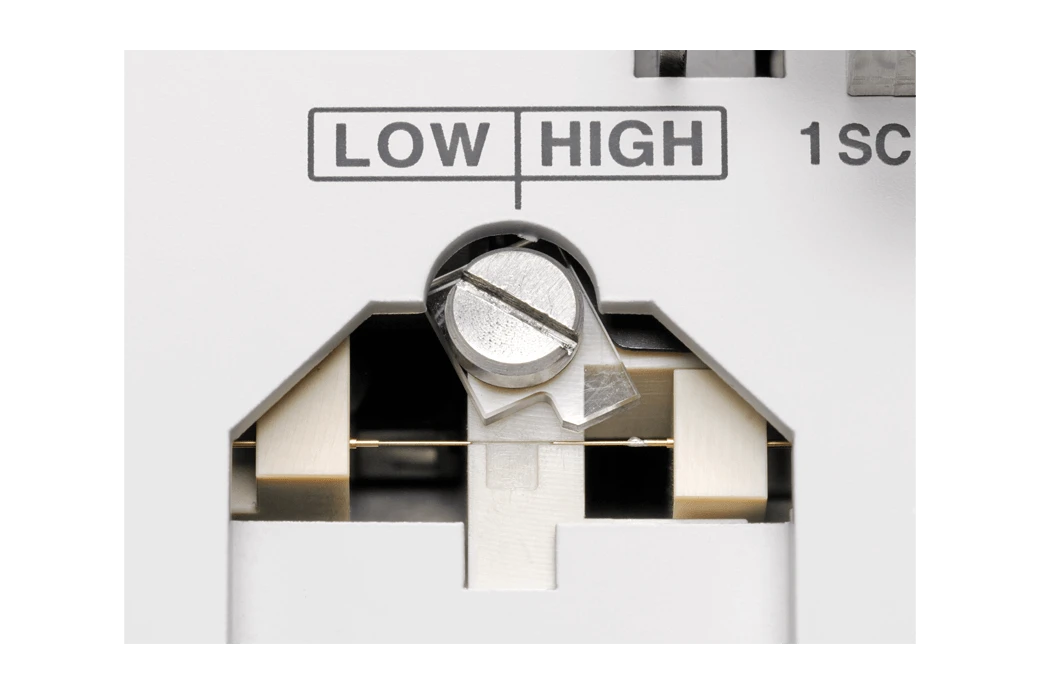

  • Easily place samples via built-in cover that keeps the sample from popping out
  • Advanced contact technology delivers highly reproducible measurement results

Specifications Overview

Connection with sample 2-terminal connection from opposite sides
Measurable sample sizes 0.25 ±20% × 0.125 ±10% × 0.125 ±10% mm (EIA size category: 008004 inch)
Please contact Hioki for information about other sizes.
Allowable input voltage / current Voltage: ±42 V peak (AC + DC)
Current: 0.15 A rms (±0.15 A DC)
Measurement frequency range DC to 1 MHz
Supported instruments IM3590, IM3570, IM3536, IM3533, IM3533-01, IM3523, 3506-10

Legacy products: 3511-50, 3532-50, 3522-50
Included accessories Instruction manual ×1, short compensation fixture ×3, cleaning brush ×1
Included accessories Instruction manual ×1, short compensation fixture ×3, cleaning brush ×1
Included accessories Instruction manual ×1, short compensation fixture ×3, cleaning brush ×1

Hioki LCR Meters and Impedance Analyzers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. The IM9110 is a general-purpose SMD test fixture for the IM35xx series of LCR meters/Impedance analyzers that accommodates ultra-small components and delivers repeatable results.

Explore precise surface-mount device testing with the Hioki SMD Test Fixture IM9110. HIOKI SMD TEST FIXTURE IM9110 Price in Bangladesh offers excellent value for advanced electronics analysis. Perfect for laboratories and industries demanding reliable measurement performance.



Key Features

  • Easily place samples via built-in cover that keeps the sample from popping out
  • Advanced contact technology delivers highly reproducible measurement results

Specifications Overview

Connection with sample 2-terminal connection from opposite sides
Measurable sample sizes 0.25 ±20% × 0.125 ±10% × 0.125 ±10% mm (EIA size category: 008004 inch)
Please contact Hioki for information about other sizes.
Allowable input voltage / current Voltage: ±42 V peak (AC + DC)
Current: 0.15 A rms (±0.15 A DC)
Measurement frequency range DC to 1 MHz
Supported instruments IM3590, IM3570, IM3536, IM3533, IM3533-01, IM3523, 3506-10

Legacy products: 3511-50, 3532-50, 3522-50
Included accessories Instruction manual ×1, short compensation fixture ×3, cleaning brush ×1

Included accessories Instruction manual ×1, short compensation fixture ×3, cleaning brush ×1

Included accessories Instruction manual ×1, short compensation fixture ×3, cleaning brush ×1
