HIOKI SMD TEST FIXTURE IM9100

Home › Hioki
Thumbnail
Shop : Tools Bangladesh
Product ID : 4195
Brand : Hioki
Availability : Out of Stock
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

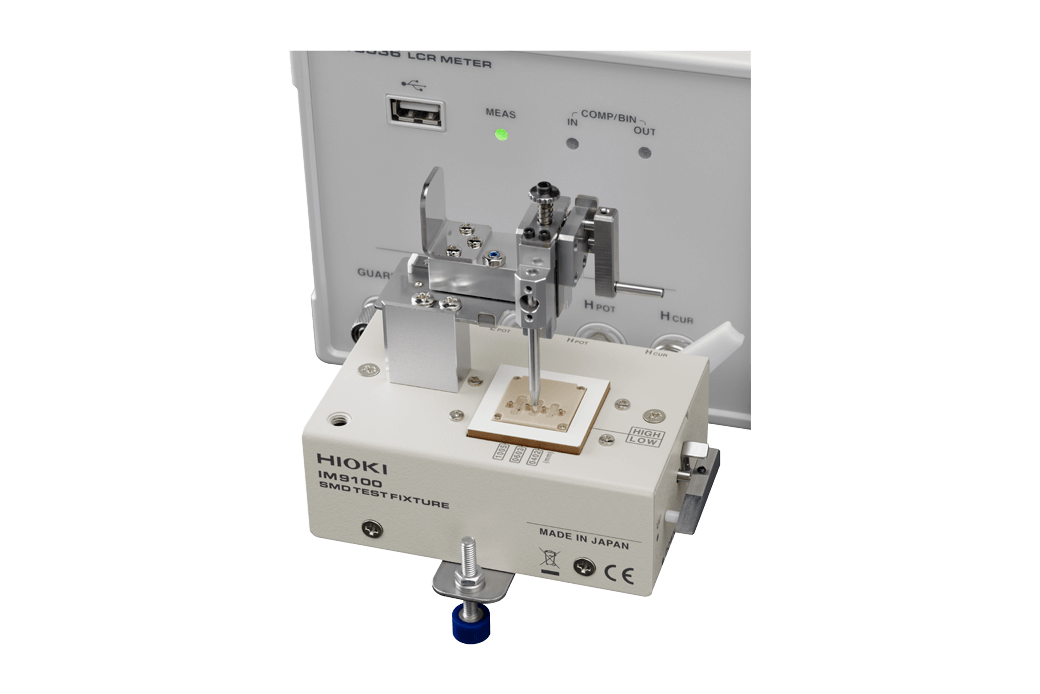

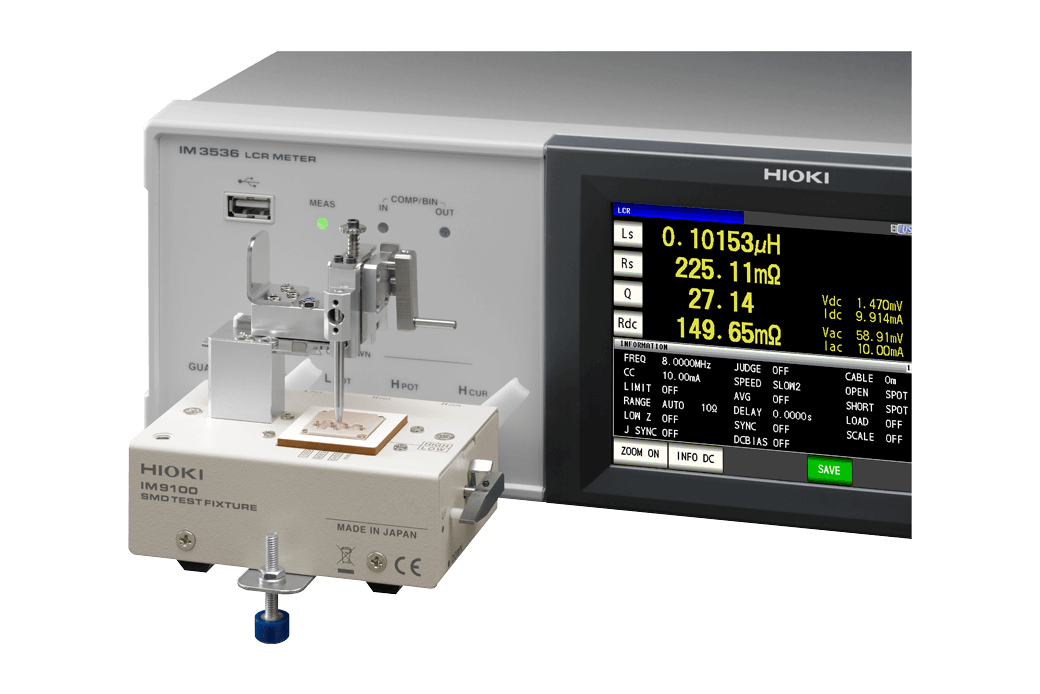

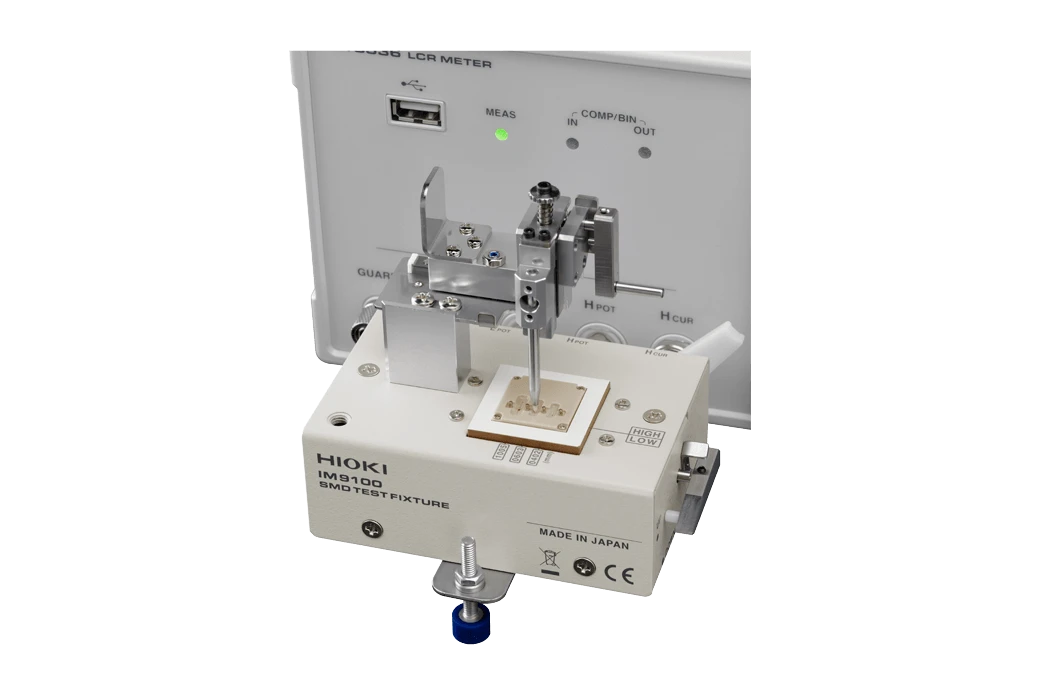

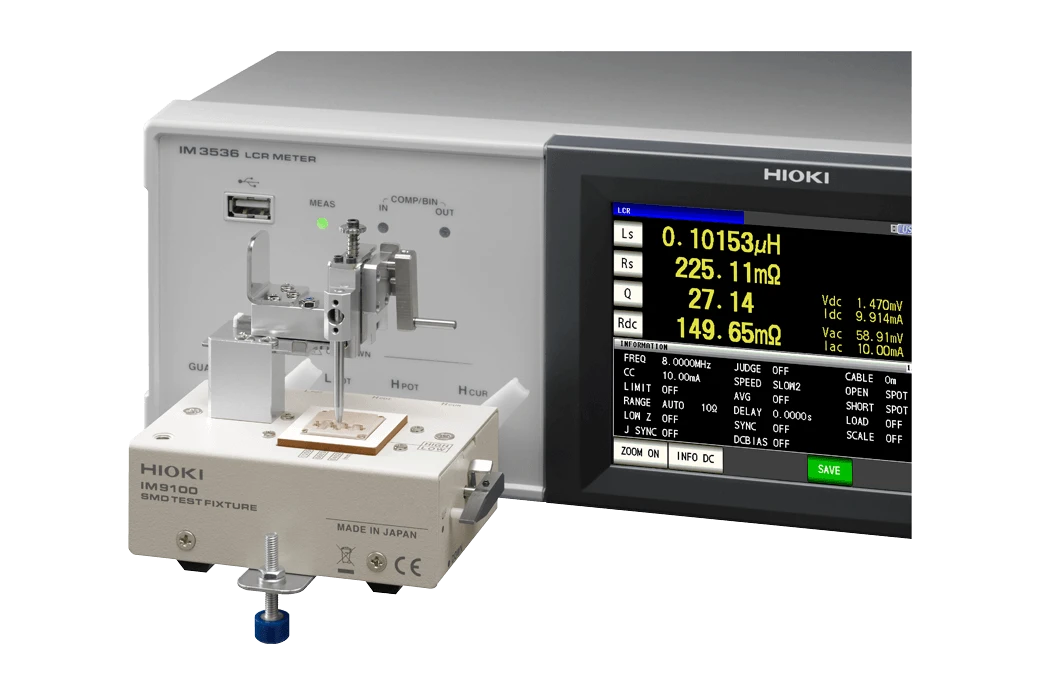

Hioki LCR Meters and Impedance Analyzers range from 1 mHz to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM9100 is a 4-wire direct connection test fixture that supports testing of components in various sizes that are designed with electrodes on the bottom.

Discover precision testing with the HIOKI SMD Test Fixture IM9100. Ideal for high-frequency component analysis, HIOKI SMD TEST FIXTURE IM9100 Price in Bangladesh is competitive for quality-focused professionals. Ensure reliable performance and seamless integration with your impedance analyzers.

Key Features

  • Direct connection type
  • For measuring SMDs with electrodes on the bottom
  • DC to 8 MHz measurement frequency
  • Measurable sample sizes: Metric (Inch): 0402 (01005), 0603 (0201), 1005 (0402)

Specifications Overview

Measurement terminals Four terminal direct connection type, BNC terminals
Connecting section Four terminal type
Measurable sample sizes Metric (Inch): 0402 (01005), 0603 (0201), 1005 (0402)
Allowable input voltage / current Voltage: ±42 V peak (AC + DC)
Current: 0.15 A rms (±0.15 A DC)
Measurement frequency range DC to 8 MHz
Supported instruments IM3590, IM3570, IM3536, IM3533, IM3523, 3506-10

Legacy products: 3511-50, 3532-50, 3522-50
Included accessories Instruction manual ×1, Short supplement jig (for all sizes) ×1, Open supplement jig (for all sizes) ×2
Included accessories Instruction manual ×1, Short supplement jig (for all sizes) ×1, Open supplement jig (for all sizes) ×2
Included accessories Instruction manual ×1, Short supplement jig (for all sizes) ×1, Open supplement jig (for all sizes) ×2

Hioki LCR Meters and Impedance Analyzers range from 1 mHz to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM9100 is a 4-wire direct connection test fixture that supports testing of components in various sizes that are designed with electrodes on the bottom.

Discover precision testing with the HIOKI SMD Test Fixture IM9100. Ideal for high-frequency component analysis, HIOKI SMD TEST FIXTURE IM9100 Price in Bangladesh is competitive for quality-focused professionals. Ensure reliable performance and seamless integration with your impedance analyzers.

Key Features

  • Direct connection type
  • For measuring SMDs with electrodes on the bottom
  • DC to 8 MHz measurement frequency
  • Measurable sample sizes: Metric (Inch): 0402 (01005), 0603 (0201), 1005 (0402)

Specifications Overview

Measurement terminals Four terminal direct connection type, BNC terminals
Connecting section Four terminal type
Measurable sample sizes Metric (Inch): 0402 (01005), 0603 (0201), 1005 (0402)
Allowable input voltage / current Voltage: ±42 V peak (AC + DC)
Current: 0.15 A rms (±0.15 A DC)
Measurement frequency range DC to 8 MHz
Supported instruments IM3590, IM3570, IM3536, IM3533, IM3523, 3506-10

Legacy products: 3511-50, 3532-50, 3522-50
Included accessories Instruction manual ×1, Short supplement jig (for all sizes) ×1, Open supplement jig (for all sizes) ×2

Included accessories Instruction manual ×1, Short supplement jig (for all sizes) ×1, Open supplement jig (for all sizes) ×2

Included accessories Instruction manual ×1, Short supplement jig (for all sizes) ×1, Open supplement jig (for all sizes) ×2
