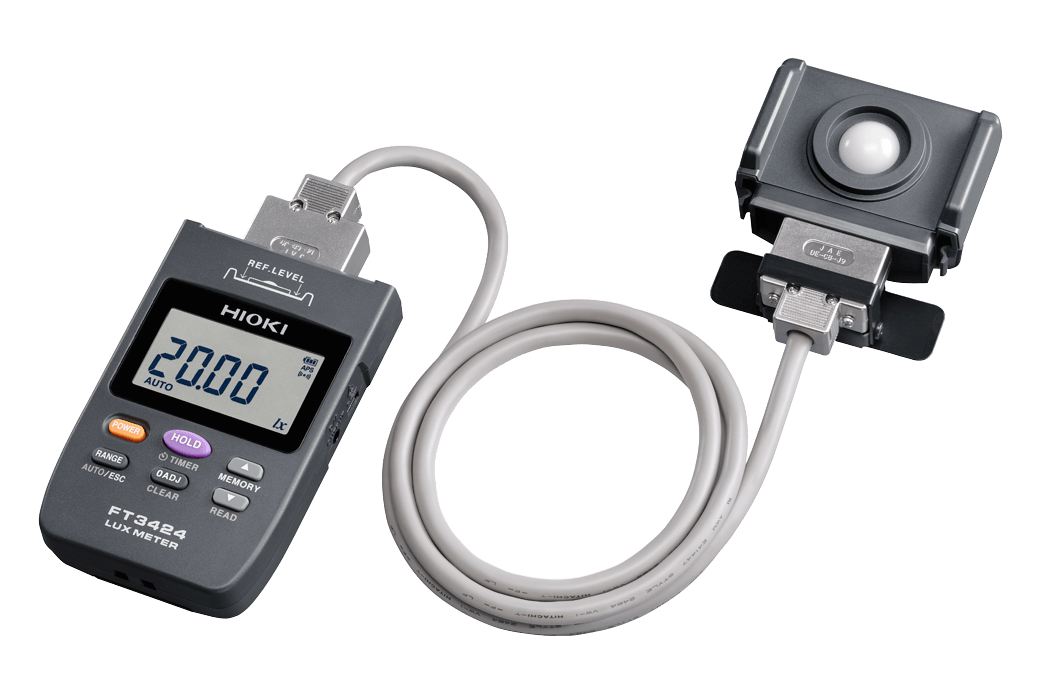

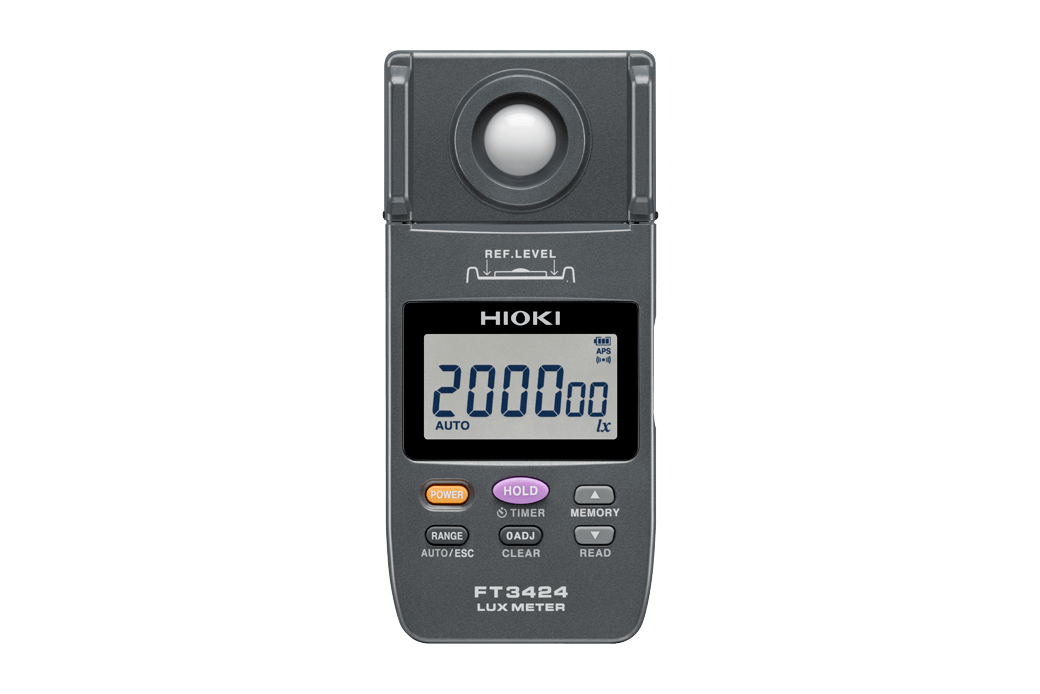

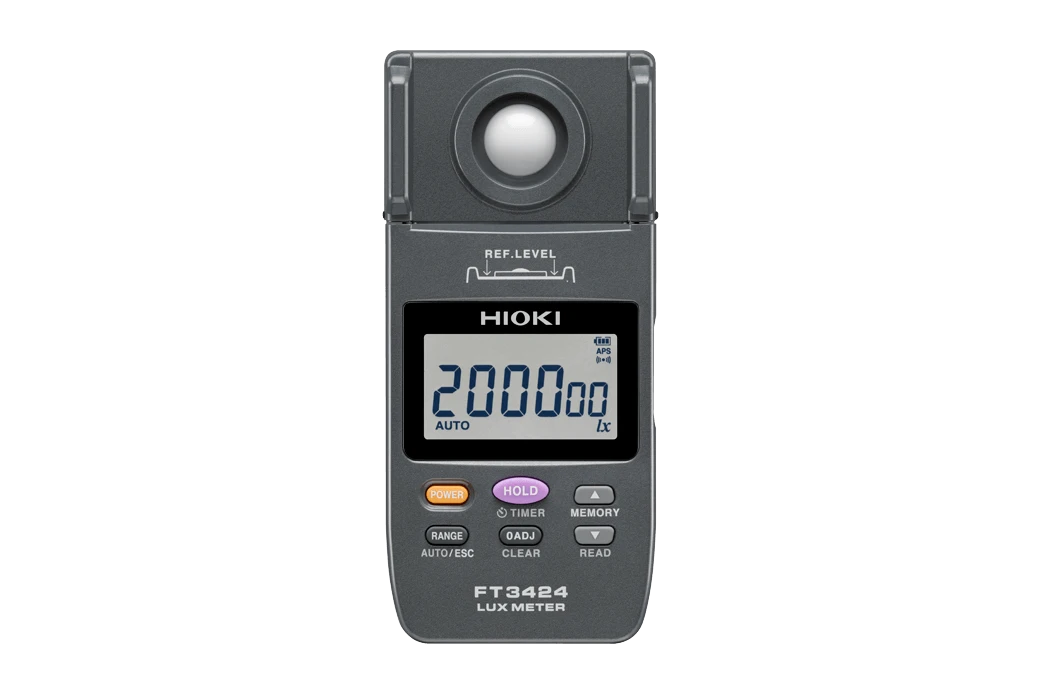

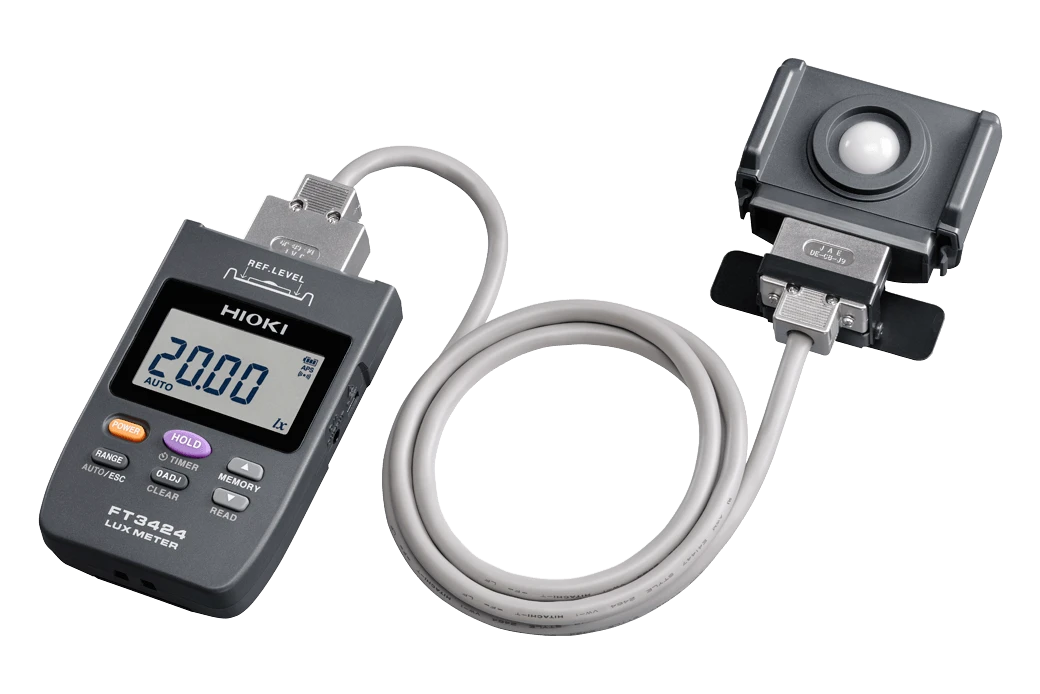

The FT3424 is a light meter designed for an extensive range of applications involving illumination equipment, lighting work and facility management. Capable of testing even LED lighting, the FT3424 provides five measurement ranges, 20 lx to 200 000 lx, to support a wide range of luminance levels.

HIOKI LUX METER FT3424 Price in Bangladesh offers excellent value for professionals needing precise light measurements. This high-performance digital lux meter ensures accurate illuminance readings in various environments. Ideal for workplace safety, industrial inspections, and lighting audits, it combines durability with user-friendly functionality. Discover the latest HIOKI LUX METER FT3424 Price in Bangladesh and enhance your lighting assessments with this trusted and efficient measurement tool.

Key Features

  • Compatible with LED lighting
  • Complies with DIN 5032-7:1985 class B and JIS C 1609-1:2006 general AA class
  • Timer hold function lets you make measurements in remote locations while avoiding the effects of shadows and reflections
  • Save up to 99 measured values in the instrument’s internal memory
  • Transfer data to the PC later and improve work efficiency

Basic specifications

Accuracy guaranteed: 2 years

Standards DIN 5032-7: 1985 class B, JIS C 1609-1: 2006 general AA class
Light receiving element Silicon photo diode
Range selection Auto/ Manual
Linearity ±2% rdg. (Multiply by 1.5 for display values in excess of 3000 lx.)
Accuracy guarantee for temperature and humidity 21 °C to 27 °C (69.8 °F to 80.6 °F), 75% rh or less (non-condensing)
Response time Auto range: within 5 seconds, Manual range: within 2 seconds
D/A output Output level: 2 V/range f.s. (2.5 V is output when the range f.s. is exceeded.)
Output accuracy: ±1% rdg. ±5 mV (at display count)
Functions Timer hold function, Memory function (Up to 99 measured data can be saved.), Hold, Auto power off function, Buzzer sound, Backlight, Zero adjustment
Power supply LR6 Alkaline battery ×2 (continuous use 300 hours), Max. rated power 500 mVA, or R6 Manganese battery ×2, or USB bus power (5 VDC)
Dimensions and mass 78 mm (3.07 in)W × 170 mm (6.69 in)H × 39 mm (1.54 in)D, 310 g (10.9 oz) (including the batteries)
Included accessories Instruction Manual ×1, LR6 Alkaline battery ×2, Sensor cap (with strap) ×1, Carrying case (soft) ×1, Strap (for instrument) ×1, USB cable (0.9 m/2.95 ft) ×1, CD (USB driver, dedicated computer application software, and communications specifications) ×1

Measurement ranges

Range Measurement range Display steps
20 lx 0.00 lx to 20.00 lx 1 count step
200 lx 0.0 lx to 200.0 lx
2000 lx 0 lx to 2000 lx
20000 lx 0(0) lx to 2000(0) lx 10 count step
200000 lx 0(00) lx〜2000(00) lx 100 count step
Included accessories Instruction Manual ×1, LR6 Alkaline battery ×2, Sensor cap (with strap) ×1, Carrying case (soft) ×1, Strap (for instrument) ×1, USB cable (0.9 m/2.95 ft) ×1, CD (USB driver, dedicated computer application software, and communications specifications) ×1
Included accessories Instruction Manual ×1, LR6 Alkaline battery ×2, Sensor cap (with strap) ×1, Carrying case (soft) ×1, Strap (for instrument) ×1, USB cable (0.9 m/2.95 ft) ×1, CD (USB driver, dedicated computer application software, and communications specifications) ×1

The FT3424 is a light meter designed for an extensive range of applications involving illumination equipment, lighting work and facility management. Capable of testing even LED lighting, the FT3424 provides five measurement ranges, 20 lx to 200 000 lx, to support a wide range of luminance levels.

HIOKI LUX METER FT3424 Price in Bangladesh offers excellent value for professionals needing precise light measurements. This high-performance digital lux meter ensures accurate illuminance readings in various environments. Ideal for workplace safety, industrial inspections, and lighting audits, it combines durability with user-friendly functionality. Discover the latest HIOKI LUX METER FT3424 Price in Bangladesh and enhance your lighting assessments with this trusted and efficient measurement tool.

Key Features

  • Compatible with LED lighting
  • Complies with DIN 5032-7:1985 class B and JIS C 1609-1:2006 general AA class
  • Timer hold function lets you make measurements in remote locations while avoiding the effects of shadows and reflections
  • Save up to 99 measured values in the instrument’s internal memory
  • Transfer data to the PC later and improve work efficiency

Basic specifications

Accuracy guaranteed: 2 years

Standards DIN 5032-7: 1985 class B, JIS C 1609-1: 2006 general AA class
Light receiving element Silicon photo diode
Range selection Auto/ Manual
Linearity ±2% rdg. (Multiply by 1.5 for display values in excess of 3000 lx.)
Accuracy guarantee for temperature and humidity 21 °C to 27 °C (69.8 °F to 80.6 °F), 75% rh or less (non-condensing)
Response time Auto range: within 5 seconds, Manual range: within 2 seconds
D/A output Output level: 2 V/range f.s. (2.5 V is output when the range f.s. is exceeded.)
Output accuracy: ±1% rdg. ±5 mV (at display count)
Functions Timer hold function, Memory function (Up to 99 measured data can be saved.), Hold, Auto power off function, Buzzer sound, Backlight, Zero adjustment
Power supply LR6 Alkaline battery ×2 (continuous use 300 hours), Max. rated power 500 mVA, or R6 Manganese battery ×2, or USB bus power (5 VDC)
Dimensions and mass 78 mm (3.07 in)W × 170 mm (6.69 in)H × 39 mm (1.54 in)D, 310 g (10.9 oz) (including the batteries)
Included accessories Instruction Manual ×1, LR6 Alkaline battery ×2, Sensor cap (with strap) ×1, Carrying case (soft) ×1, Strap (for instrument) ×1, USB cable (0.9 m/2.95 ft) ×1, CD (USB driver, dedicated computer application software, and communications specifications) ×1

Measurement ranges

Range Measurement range Display steps
20 lx 0.00 lx to 20.00 lx 1 count step
200 lx 0.0 lx to 200.0 lx
2000 lx 0 lx to 2000 lx
20000 lx 0(0) lx to 2000(0) lx 10 count step
200000 lx 0(00) lx〜2000(00) lx 100 count step

Included accessories Instruction Manual ×1, LR6 Alkaline battery ×2, Sensor cap (with strap) ×1, Carrying case (soft) ×1, Strap (for instrument) ×1, USB cable (0.9 m/2.95 ft) ×1, CD (USB driver, dedicated computer application software, and communications specifications) ×1

Included accessories Instruction Manual ×1, LR6 Alkaline battery ×2, Sensor cap (with strap) ×1, Carrying case (soft) ×1, Strap (for instrument) ×1, USB cable (0.9 m/2.95 ft) ×1, CD (USB driver, dedicated computer application software, and communications specifications) ×1
