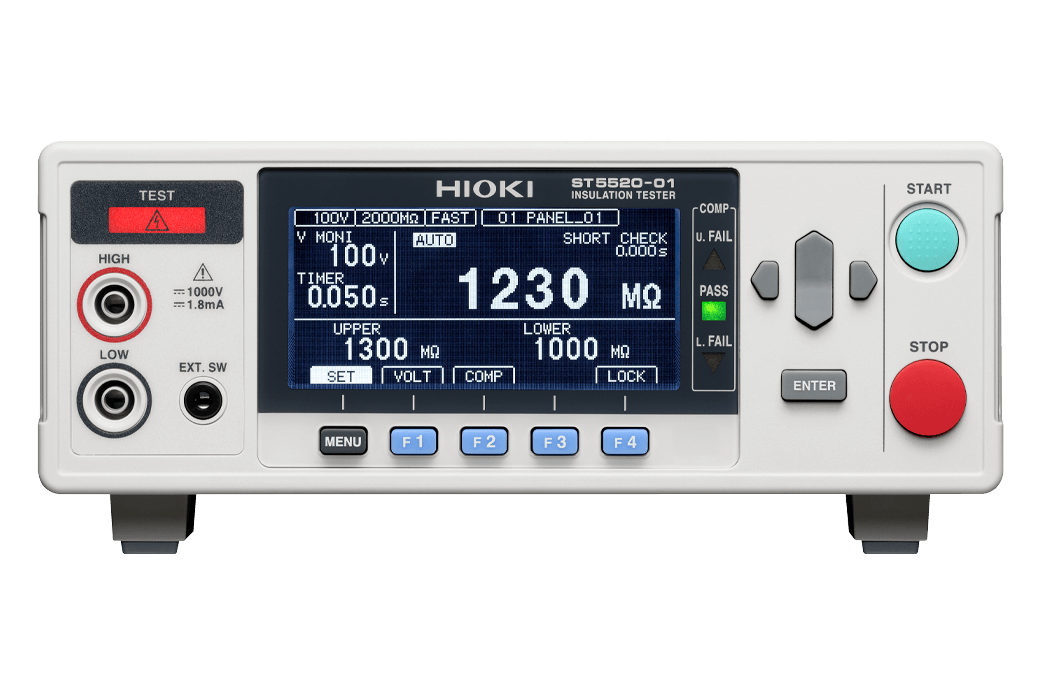

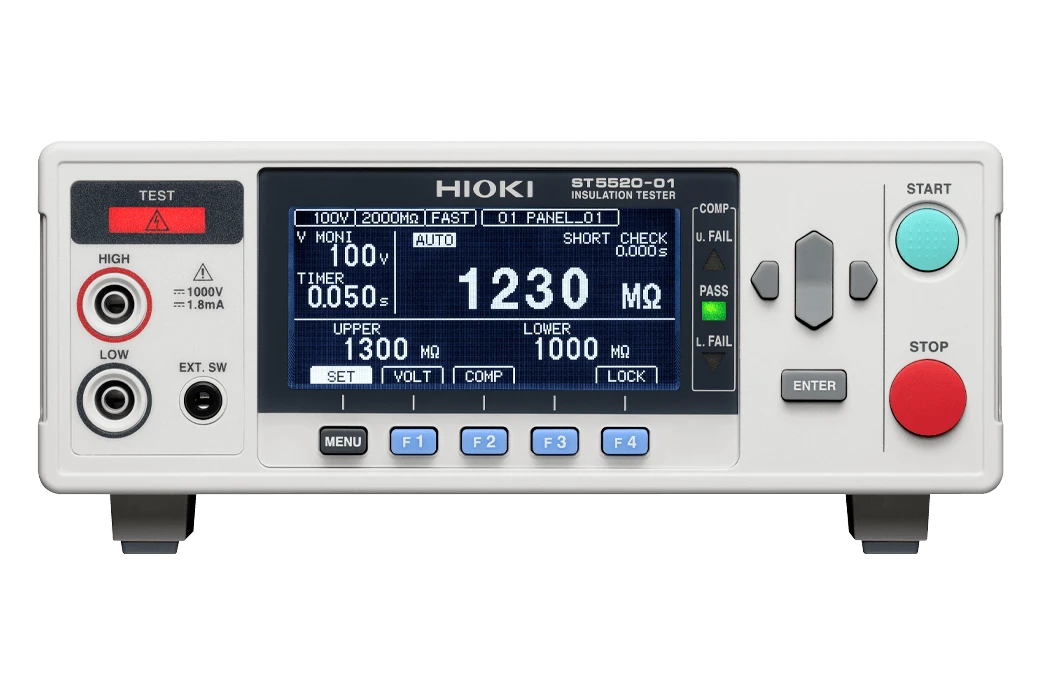

HIOKI INSULATION TESTER ST5520

Home › Hioki
Thumbnail
Shop : Tools Bangladesh
Product ID : 4288
Brand : Hioki
Availability : Out of Stock
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

The Hioki electrical safety testers are designed for insulation resistance and voltage withstand testing of electrical devices and components according to various safety standards. The ST5520 is the fastest insulation tester in the industry, delivering pass/fail assessment in as fast as 50 ms. 25 V to 1000 V test voltage with 1 V resolution. HIOKI INSULATION TESTER ST5520 Price in Bangladesh is affordable for professionals seeking high-precision insulation testing. This advanced tester ensures safety, accuracy, and reliability in electrical measurements. Ideal for industrial and commercial use, the ST5520 offers exceptional performance with user-friendly features, making it a top choice for insulation testing in Bangladesh.

Key Features

  • Rapidly assess in as fast as 50 ms
  • Quick discharge of residual voltage
  • Freely configurable test voltage (set from 25 V to 1000 V, 1 V resolution)
  • Contact check function (prevents errors due to poor contact)
  • Short-circuit check function (stops potential defects from reaching the market)

Basic specifications

Accuracy guaranteed: 1 year

Measurement items Insulation resistance (Applied DC voltage method)
Testing voltage (Measurement range: AUTO/MANUAL setting is possible)
25 V ≤ V < 100 V (2.000/20.00/200.0 MΩ),
100 V ≤ V < 500 V (2.000/20.00/200.0/2000 MΩ),
500 V ≤ V ≤ 1000 V (2.000/20.00/200.0/4000 MΩ)
Basic accuracy ±2 % rdg. ±5 dgt.
25 V ≤ V < 100 V [0 to 20 MΩ]
100 V ≤ V < 500 V [0 to 20 MΩ]
500 V ≤ V ≤ 1000 V [0 to 20 MΩ]
Measurement speed Fast: 30 ms/time, Slow: 500 ms/time (selectable)
Display LCD (service life: 100,000 hours), 4-level backlight
Internal memory Saved items: rated measurement voltage, comparator upper limit /lower limit values, test mode, beep sound to distinguish the result, test time, response time, resistance range, measurement speed
Memory capacity: up to 10 items (can be saved/loaded)
Comparator setting UPPER_FAIL: Measured value ≥ upper limit value
PASS: Upper limit value > measured value > lower limit value
LOWER_FAIL: Measured value ≤ lower limit value
Judgement process Beep sound, PASS / U.FAIL/L. FAIL: light up on LED display, When UL_FAIL, U.FAIL / L.FAIL light up simultaneously, EXT.I/O output, judgement result can be obtained via RS-232C
Test duration Definition of test duration: Test duration = Response time + Measurement time
Function: Set the time from voltage application until pass/fail assessment
Configuration range: 0.045 s to 999.999 s (0.001 s resolution)
Response time timer After the start of the test, comparator judgment operation can be prohibited until a set interval from 0.005 sec. to 999.999 sec. (at 0.001 sec. resolution) has passed.
Analog output DC +4 V f.s.

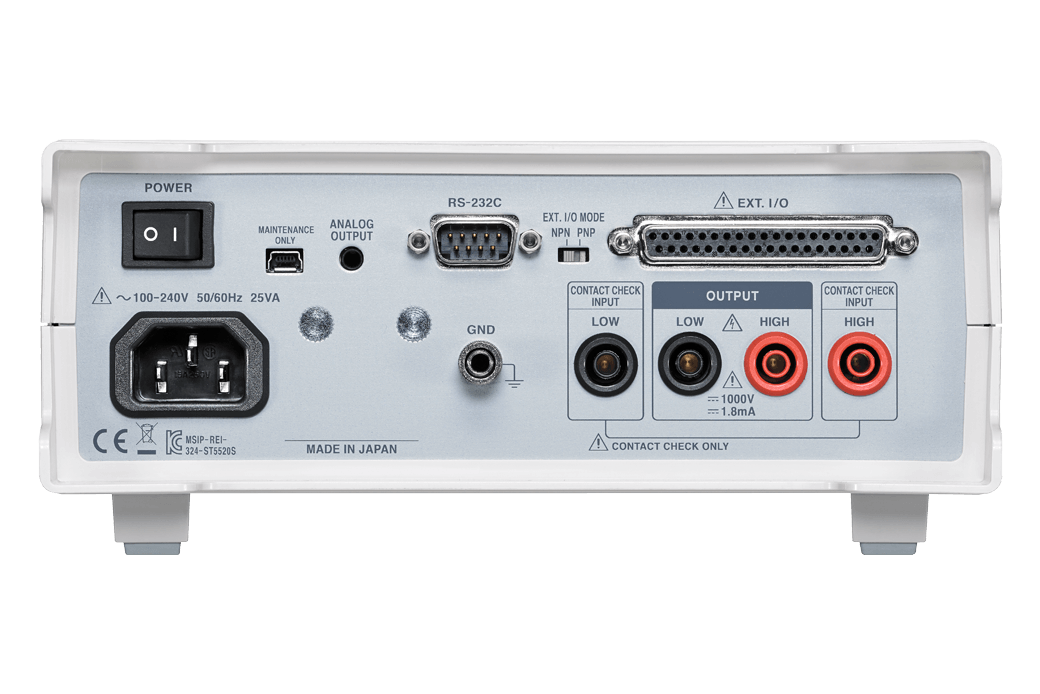

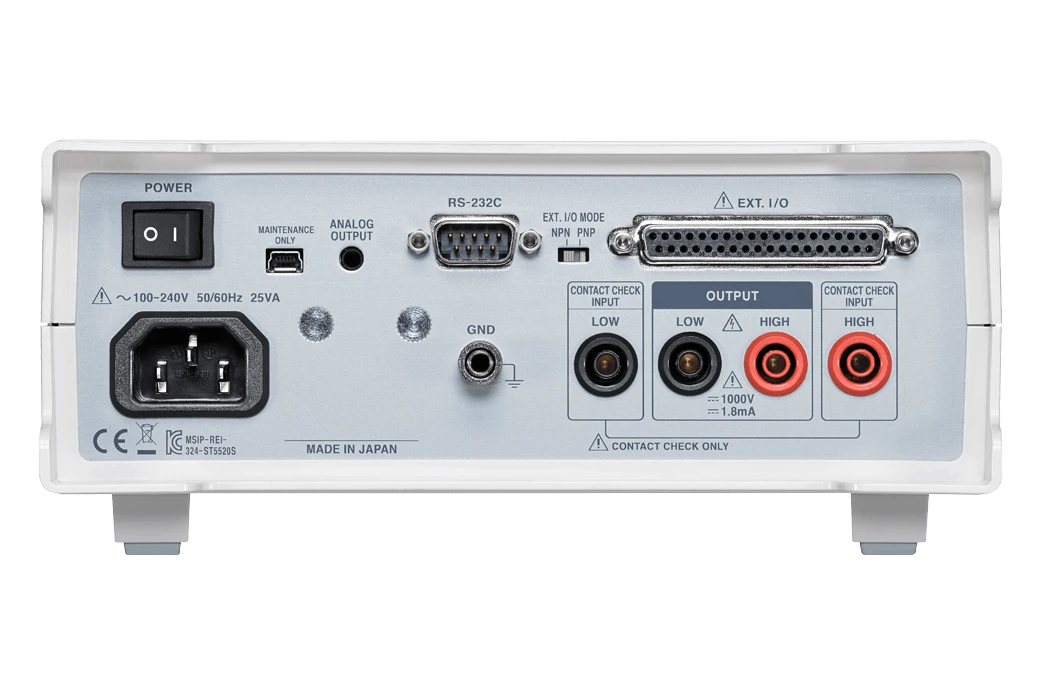

Interface RS-232C (standard), External I/O (External control input, Judgment result)
BCD output (ST5520-01 only)
Power supply 100 to 240 V AC, 50/60 Hz, 25 VA max.
Dimensions and mass 215 mm (8.46 in)W × 80 mm (3.15 in)H × 166 mm (6.54 in)D, 1.1 kg (38.8 oz)
Included accessories Instruction Manual ×1, Power cord ×1, EXT. I/O Connector ×1, Connector Cover ×1
Included accessories Instruction Manual ×1, Power cord ×1, EXT. I/O Connector ×1, Connector Cover ×1
Included accessories Instruction Manual ×1, Power cord ×1, EXT. I/O Connector ×1, Connector Cover ×1

The Hioki electrical safety testers are designed for insulation resistance and voltage withstand testing of electrical devices and components according to various safety standards. The ST5520 is the fastest insulation tester in the industry, delivering pass/fail assessment in as fast as 50 ms. 25 V to 1000 V test voltage with 1 V resolution. HIOKI INSULATION TESTER ST5520 Price in Bangladesh is affordable for professionals seeking high-precision insulation testing. This advanced tester ensures safety, accuracy, and reliability in electrical measurements. Ideal for industrial and commercial use, the ST5520 offers exceptional performance with user-friendly features, making it a top choice for insulation testing in Bangladesh.

Key Features

  • Rapidly assess in as fast as 50 ms
  • Quick discharge of residual voltage
  • Freely configurable test voltage (set from 25 V to 1000 V, 1 V resolution)
  • Contact check function (prevents errors due to poor contact)
  • Short-circuit check function (stops potential defects from reaching the market)

Basic specifications

Accuracy guaranteed: 1 year

Measurement items Insulation resistance (Applied DC voltage method)
Testing voltage (Measurement range: AUTO/MANUAL setting is possible)
25 V ≤ V < 100 V (2.000/20.00/200.0 MΩ),
100 V ≤ V < 500 V (2.000/20.00/200.0/2000 MΩ),
500 V ≤ V ≤ 1000 V (2.000/20.00/200.0/4000 MΩ)
Basic accuracy ±2 % rdg. ±5 dgt.
25 V ≤ V < 100 V [0 to 20 MΩ]
100 V ≤ V < 500 V [0 to 20 MΩ]
500 V ≤ V ≤ 1000 V [0 to 20 MΩ]
Measurement speed Fast: 30 ms/time, Slow: 500 ms/time (selectable)
Display LCD (service life: 100,000 hours), 4-level backlight
Internal memory Saved items: rated measurement voltage, comparator upper limit /lower limit values, test mode, beep sound to distinguish the result, test time, response time, resistance range, measurement speed
Memory capacity: up to 10 items (can be saved/loaded)
Comparator setting UPPER_FAIL: Measured value ≥ upper limit value
PASS: Upper limit value > measured value > lower limit value
LOWER_FAIL: Measured value ≤ lower limit value
Judgement process Beep sound, PASS / U.FAIL/L. FAIL: light up on LED display, When UL_FAIL, U.FAIL / L.FAIL light up simultaneously, EXT.I/O output, judgement result can be obtained via RS-232C
Test duration Definition of test duration: Test duration = Response time + Measurement time
Function: Set the time from voltage application until pass/fail assessment
Configuration range: 0.045 s to 999.999 s (0.001 s resolution)
Response time timer After the start of the test, comparator judgment operation can be prohibited until a set interval from 0.005 sec. to 999.999 sec. (at 0.001 sec. resolution) has passed.
Analog output DC +4 V f.s.
Interface RS-232C (standard), External I/O (External control input, Judgment result)
BCD output (ST5520-01 only)
Power supply 100 to 240 V AC, 50/60 Hz, 25 VA max.
Dimensions and mass 215 mm (8.46 in)W × 80 mm (3.15 in)H × 166 mm (6.54 in)D, 1.1 kg (38.8 oz)
Included accessories Instruction Manual ×1, Power cord ×1, EXT. I/O Connector ×1, Connector Cover ×1

Included accessories Instruction Manual ×1, Power cord ×1, EXT. I/O Connector ×1, Connector Cover ×1

Included accessories Instruction Manual ×1, Power cord ×1, EXT. I/O Connector ×1, Connector Cover ×1
