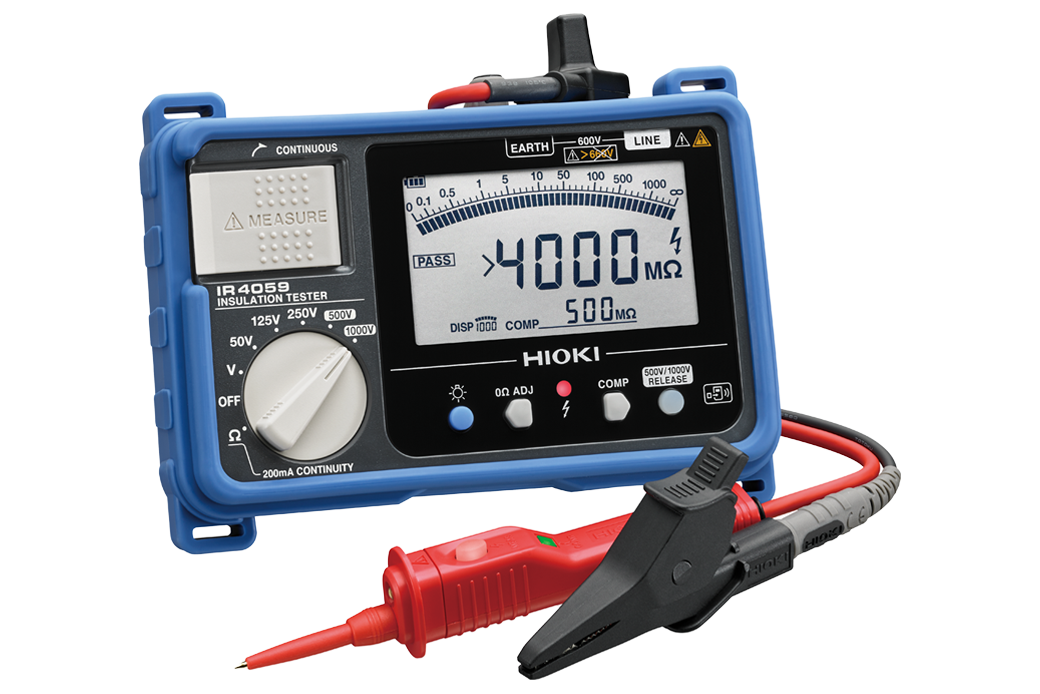

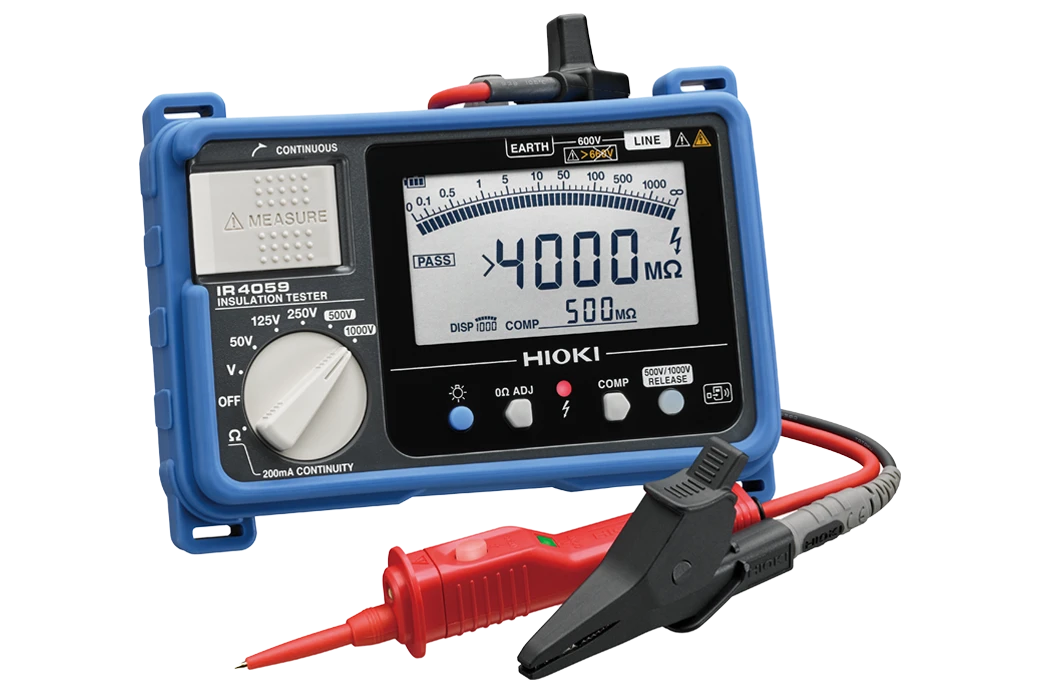

The IR4059 is a Bluetooth® compatible insulation tester. It has a 5-range, 50 V to 1000 V digital insulation resistance tester with a bargraph and delivers efficient functions and features to help shorten the work time associated with field insulation testing. Safety CAT III 600 V.
Best for measuring the insulation resistance of electric vehicles.
The IR4059 is the ideal insulation tester for a technician to use when checking the insulation resistance of an electric car, thanks to its safety features, reliable performance, and user-friendly design.
HIOKI INSULATION TESTER IR4059 Price in Bangladesh offers top-tier performance for accurate insulation resistance testing. Designed for safety and efficiency, this tester features a user-friendly interface, rapid response time, and durable build quality. Ideal for professional electricians and engineers, it ensures precise diagnostics in demanding environments. Discover the best HIOKI INSULATION TESTER IR4059 Price in Bangladesh with guaranteed quality and reliable support for all your electrical testing needs.
Key Features
- 5-range testing voltage of 50 V/100 MΩ to 1000 V/4000 MΩ
- Digital bar graph
- Multi-functional test lead with remote switch improves work efficiency: flashlight, remote test start, LED light for PASS/FAIL notification.
- Stable and high-speed digital readings; 0.3 second response time for PASS/ FAIL judgment.
- Bright LED, luminous LCD, test lead (included accessory: L9788-10) with bright LED lamp to illuminate near hand.
- Continuity check via 200 mA testing
- Built in AC/DC voltage meter, useful for testing solar power generation systems and electric vehicles
- Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)
- Drop proof onto concrete from 1m (3.28 feet)
Basic specifications
Accuracy guaranteed: 1 year
| Rated output voltage |
50 V DC |
125 V DC |
250 V DC |
500 V DC |
1000 V DC |
| Effective maximum indicated value |
100 MΩ |
250 MΩ |
500 MΩ |
2000 MΩ |
4000 MΩ |
Accuracy
1st effective measuring range MΩ |
±2 % rdg. ±2 dgt.
0.200 - 10.00 |
±2 % rdg. ±2 dgt.
0.200 - 25.0 |
±2 % rdg. ±2 dgt.
0.200 - 50.0 |
±2 % rdg. ±2 dgt.
0.200 - 500 |
±2 % rdg. ±2 dgt.
0.200 - 1000 |
| Lower limit resistance |
0.05 MΩ |
0.125 MΩ |
0.25 MΩ |
0.5 MΩ |
1 MΩ |
| Overload protection |
600 V AC (10s) |
660 V AC (10s) |
| DC voltage range |
4.2 V (0.001 V resolution) to 600 V (1 V resolution), 4 ranges,
Accuracy: ±1.3% rdg. ±4 dgt., Input resistance: 100 kΩ or higher |
| AC voltage range |
420 V (0.1 V resolution) / 600 V (1 V resolution), 2 ranges, 50/60 Hz,
Accuracy: ±2.3% rdg. ±8 dgt., Input resistance: 100 kΩ or higher, Average rectifier |
| Low resistance range |
For checking the continuity of ground wiring, 10 Ω (0.01 Ω resolution) to 1000 Ω (1 Ω resolution), 3 ranges, Basic accuracy: ±3 % rdg. ±2 dgt., testing current 200 mA or more (at 6 Ω or less) |
| Display |
Semi-transmissive FSTN LCD with back lighting, bar-graph indicator |
| Response time |
Approx. 0.3 second for PASS/FAIL decision (based on in-house testing) |
| Other functions |
Indicate MΩ measurement value after a lapse of one minute, Live circuit indicator, Automatic electric discharge, Automatic DC/AC detection, Comparator, Drop proof, Auto power save |
| Power supply |
LR6 (AA) alkaline batteries × 4, Continuous use: 20 hours (based on in-house testing)
Number of measurements: 1000 times (at 5 s ON, 25 s OFF cycle, insulation measurement of lower limit resistance value to maintain nominal output voltage) |
| Dimensions and mass |
160 mm (6.30 in) W × 98 mm (3.86 in) H× 46 mm (1.81 in) D, 536 g (18.9 oz) (including batteries, excluding test leads) |
| Included accessories |
Connection cable L4930 ×1, Alligator clip set L4935 ×1, Test pin set L4938 ×1, Neck strap ×1, Test lead set with remote switch
(Red) LR9788-10×1, Protector Z5042×1, Instruction manual ×1, LR6 (AA) alkaline batteries ×4 |
| Included accessories |
Connection cable L4930 ×1, Alligator clip set L4935 ×1, Test pin set L4938 ×1, Neck strap ×1, Test lead set with remote switch
(Red) LR9788-10×1, Protector Z5042×1, Instruction manual ×1, LR6 (AA) alkaline batteries ×4 |
| Included accessories |
Connection cable L4930 ×1, Alligator clip set L4935 ×1, Test pin set L4938 ×1, Neck strap ×1, Test lead set with remote switch
(Red) LR9788-10×1, Protector Z5042×1, Instruction manual ×1, LR6 (AA) alkaline batteries ×4 |
