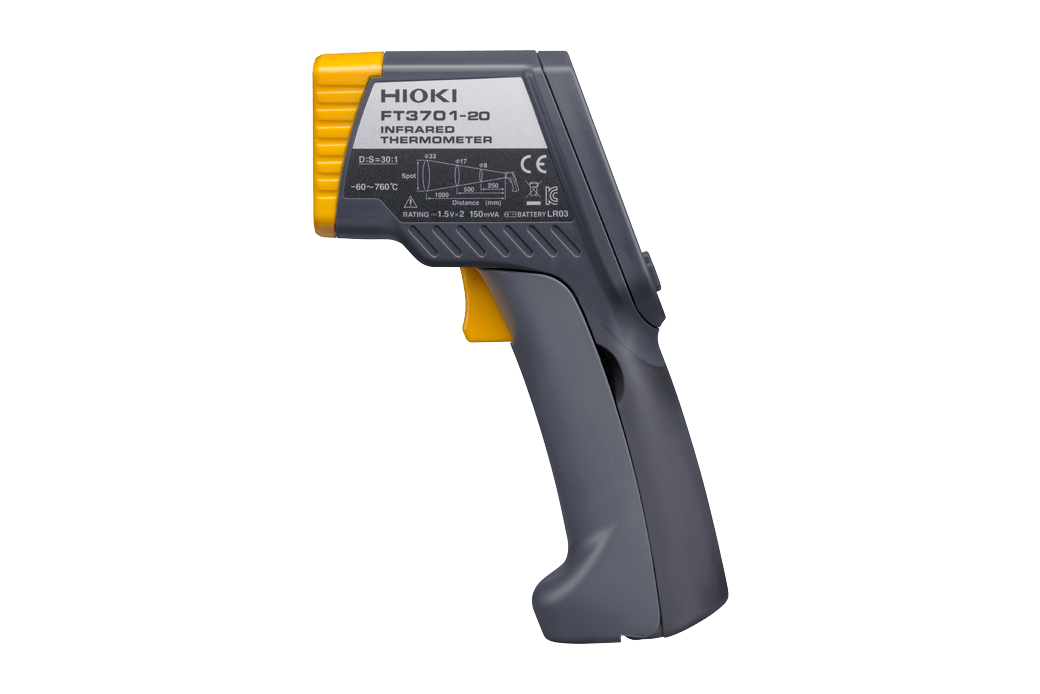

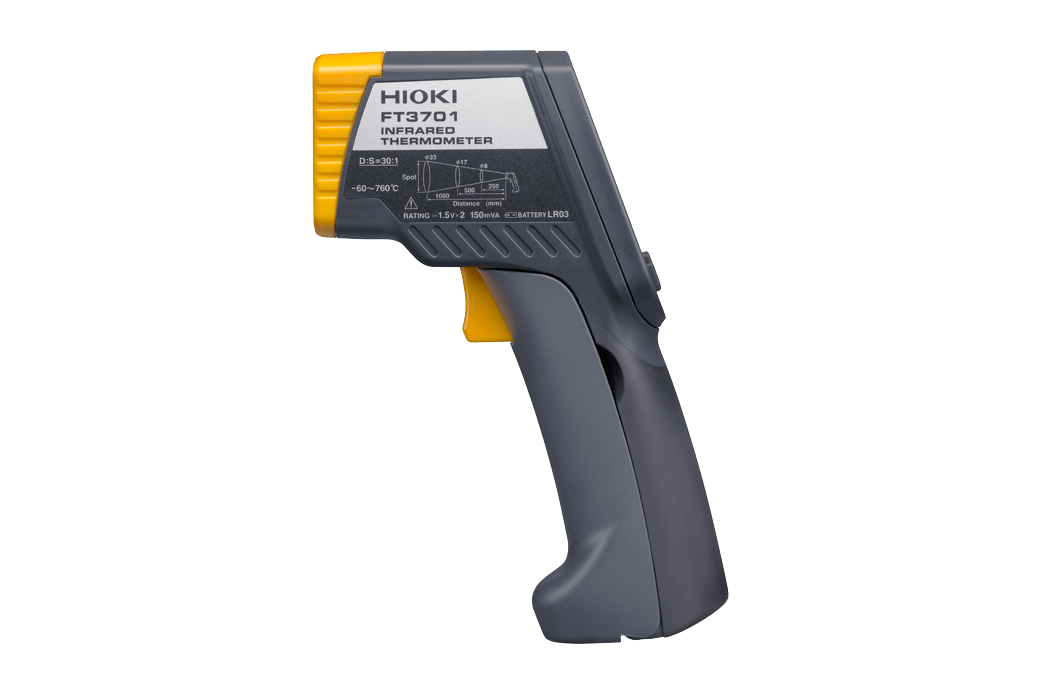

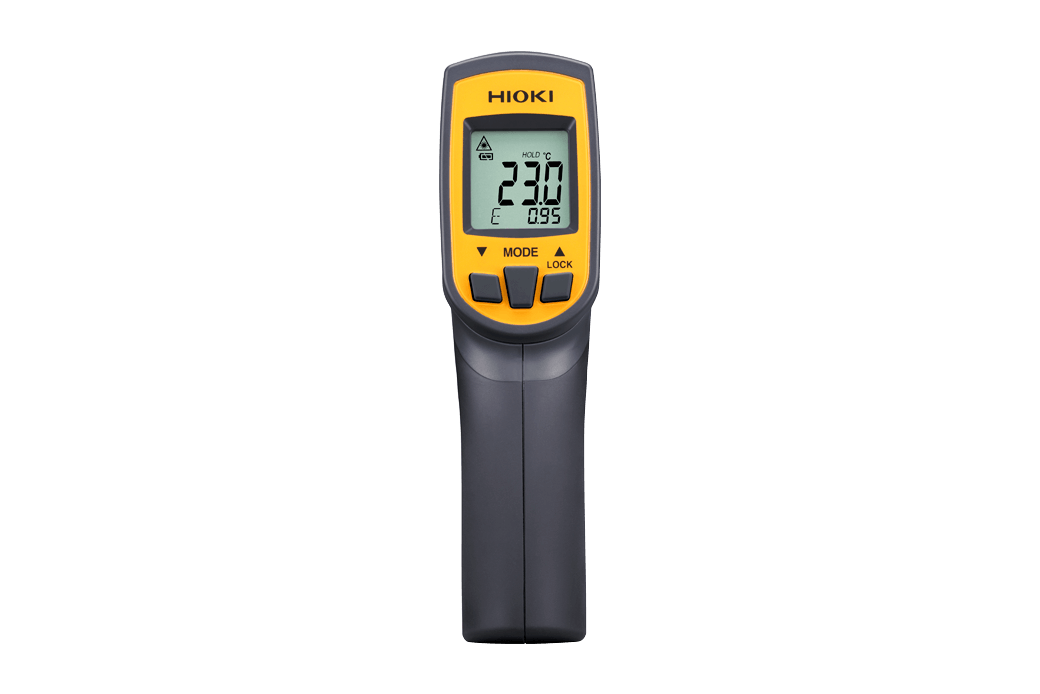

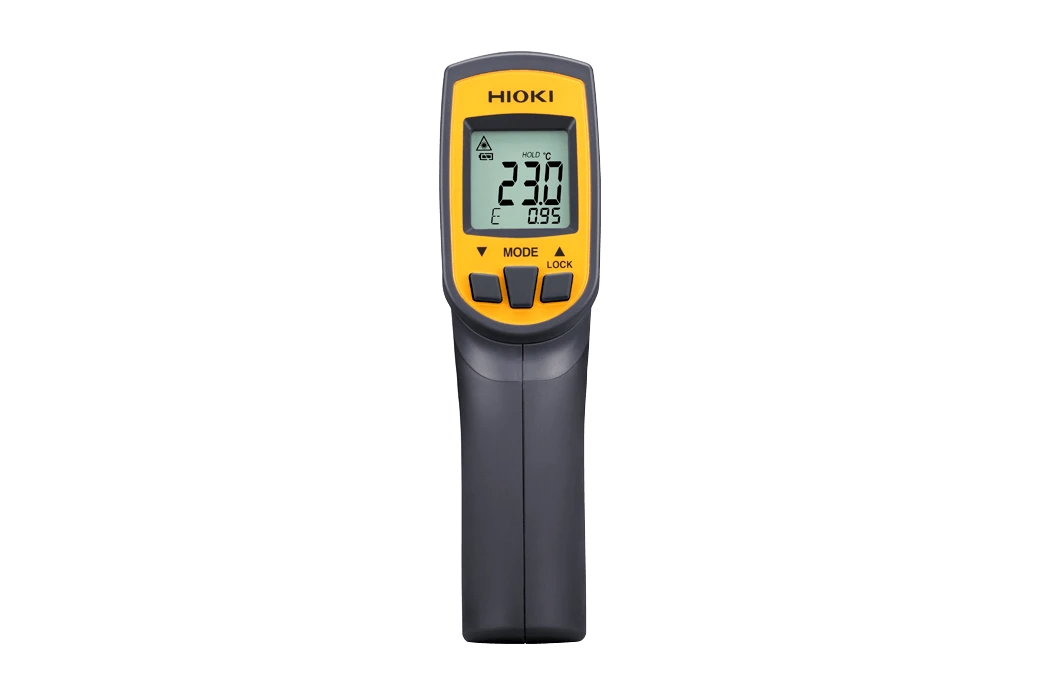

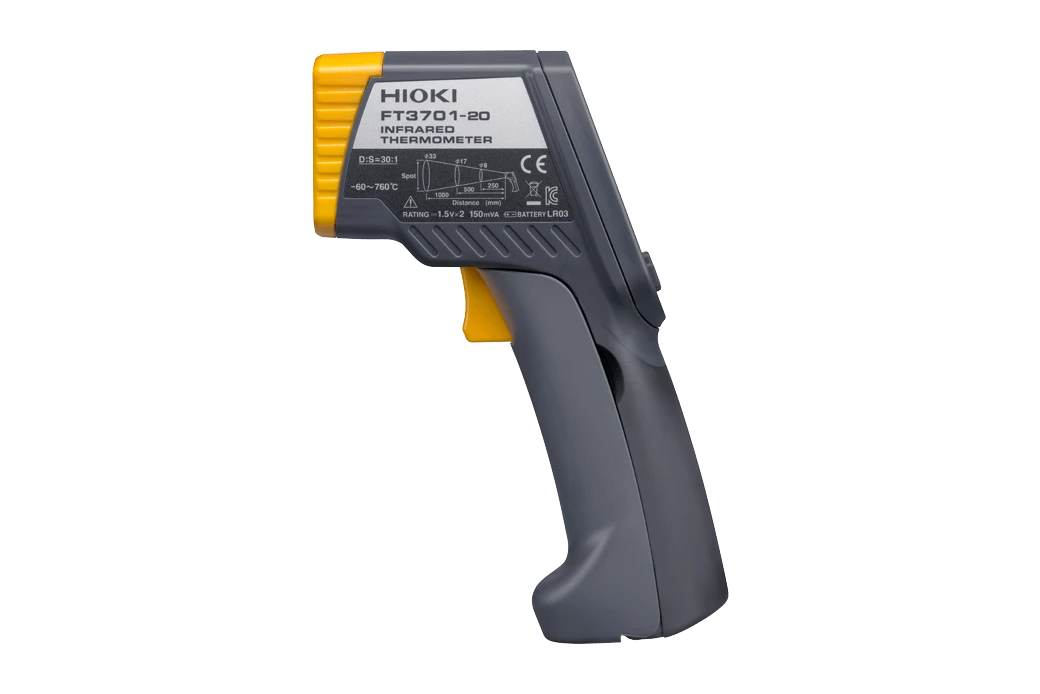

The FT3700 and FT3701 are non-contact thermometers using infrared rays, accurately pinpointing the spot with a two-beam laser marker. The infrared temperature guns identify the surface temperature of an object by measuring the energy level of the infrared rays emitted from the object without physically coming in contact with it. HIOKI INFRARED THERMOMETER FT3700, FT3701 Price in Bangladesh offers reliable temperature measurement for industrial and electrical inspections. These non-contact thermometers ensure accurate, fast readings with user-friendly features and a durable design. Ideal for professional use, they support a wide range of applications. Find the best HIOKI INFRARED THERMOMETER FT3700, FT3701 Price in Bangladesh with guaranteed authenticity and after-sales support at Tools Bangladesh.
Key Features
- Pistol design with easy-to-see display
- A full menu of basic measuring functions
- Easily test in difficult locations, moving objects or where there is danger of electric shock
Basic specifications
Accuracy guaranteed: 1 year
| |
FT3700-20 |
FT3701-20 |
| Measurement temperature range |
-60.0˚C to 550.0˚C (-76˚F to 1022˚F), 0.1˚C resolution |
-60.0˚C to 760.0˚C (-76˚F to 1400˚F), 0.1 ˚C resolution |
| Accuracy |
-35.0˚C to -0.1˚C (-31.0˚F to 31.9˚F) : ±10 %rdg. ±2˚C
0.0˚C to 100.0˚C (-32.0˚F to 212.0˚F) : ±2˚C
100.1˚C to 500.0˚C (212.1˚F to 932.0˚F) : ±2% rdg.
Note: -60.0˚C to -35.1˚C (-76.0˚F to -31.1˚F), and over 500.1˚C (932.0˚F), Accuracy not specified |
| Response time |
1 sec (90%) |
| Measurement wavelength |
8 to 14 µm |
| Thermal emissivity compensation |
ε=0.10 to 1.00 (0.01 step) |
| Measurement field diameter |
ε=0.10 to 1.00 (0.01 step) |
φ 100 mm at 3000 mm (3.94 in at 9.84 ft)
(Distance : Spot = 30 : 1) |
| Sighting |
Two-beam laser marker Max 1 mW (class 2), Red |
| Functions |
Continuous measurement mode, MAX/ MIN/ DIF (MAX - MIN)/ AVG measurement, Alarm, Backlight, Auto power-off |
| Power supply |
LR03 (AAA) alkaline battery ×2, 150 mVA, Continuous use of 140 hours (With laser marker, backlight and buzzer are OFF) |
| Dimensions and mass |
48 mm (1.89 in) W × 172 mm (6.77 in) H × 119 mm (4.69 in) D, 256 g (9.0 oz), (including batteries) |
| Included accessories |

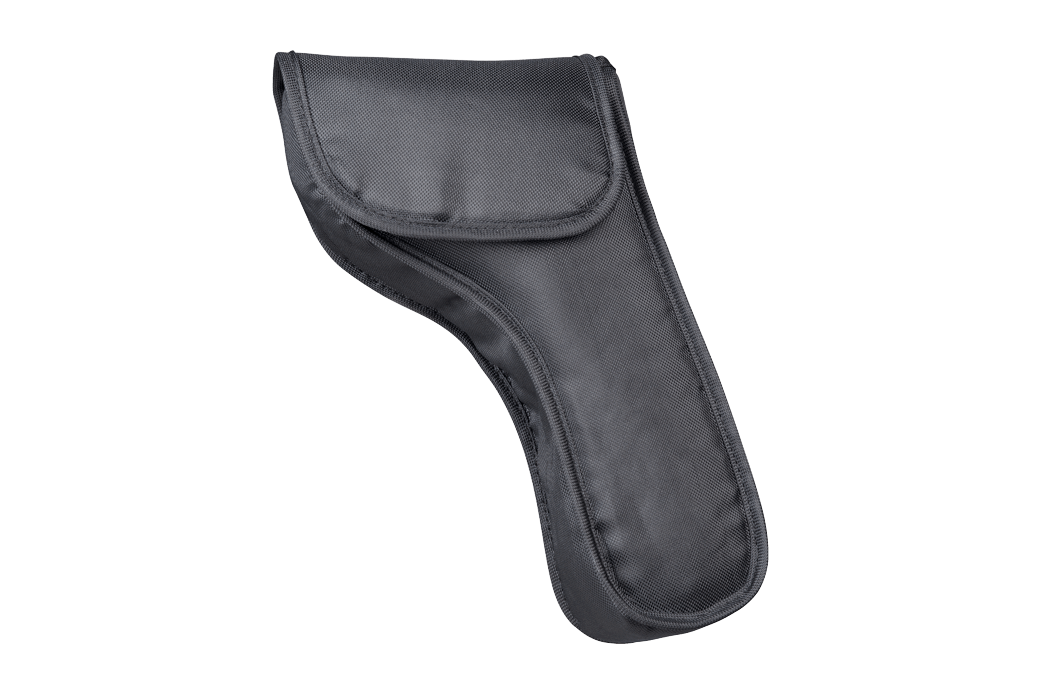

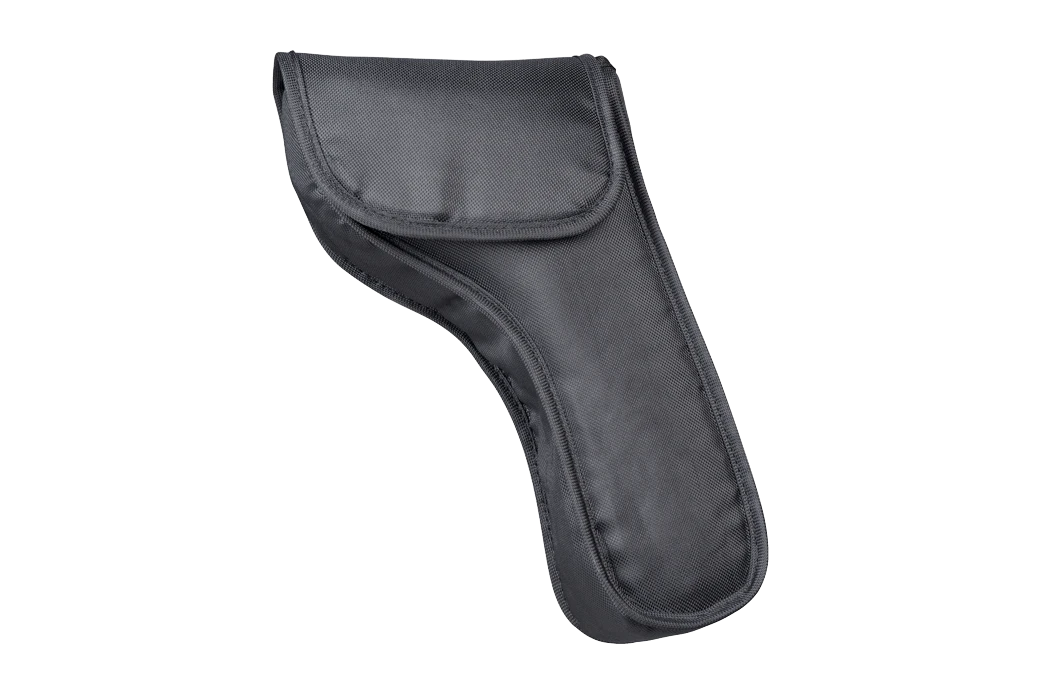

Instruction manual ×1, LR03 alkaline battery ×2, Carrying case ×1 |
| Included accessories |
Instruction manual ×1, LR03 alkaline battery ×2, Carrying case ×1 |
| Included accessories |
Instruction manual ×1, LR03 alkaline battery ×2, Carrying case ×1 |
