Model: Fluke 54 II B Data Logging Thermometer with Dual Input
Fluke 54 II B Data Logging Thermometer with Dual Input is Large backlit dual display shows any combination of T1, T2 (52 and 54 only), T1-T2 (52 and 54 only), plus MIN, MAX, or AVG. So you can keep confident that it's rugged reliable and trusted.

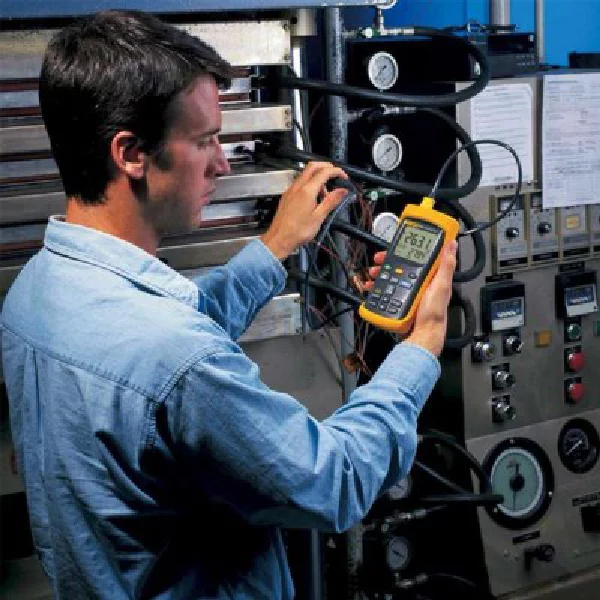

Fluke 54 II B dual input digital thermometer can log up to 500 points of data to internal memory. Fast response and laboratory accuracy (0.05% + 0.3 °C). Take contact temperature for checking motors, insulation, breakers, pipes, corroded connections, liquids, and wires with industrial standard J, K, T, E, N, R, and S type thermocouple (temperature sensors).
Tools Bangladesh offers the best price in Bangladesh. If you want to order you can do if here and we deliver anywhere in Bangladesh for free.
Features
Key features: 54 II B Data Logging Thermometer with Dual Input
- Large backlit dual display shows any combination of T1, T2 (52 and 54 only), T1-T2 (52 and 54 only), plus MIN, MAX, or AVG
- Recall function allows logged data to be easily reviewed on the meter display
- Infrared USB communication port allows data to be exported to optional FlukeView Forms® Temperature PC software for further analysis and graphing
- Data Logging up to 500 points of data with user adjustable recording interval
- Relative time clock on MIN, MAX, and AVG provides a time reference for major events
- Electronic Offset function allows compensation of thermocouple errors to maximize overall accuracy
- Measures J, K, T, E, R, S, and N-type thermocouples
- Readout in °C, °F, or Kelvin (K)
- Splash and dust resistant case protected by impact absorbing holster
- User-friendly front panel is easy to set up and operate
- Sleep mode increases battery life; typical 1000-hour battery life
- Battery door allows easy battery replacement without breaking the calibration seal
- Optional ToolPak accessory allows the thermometer to hang from any metal object (with the rare earth magnet) or secure around a pipe (with hook-and-loop straps) for hands-free operation
- 3 year warranty
Specifications
Specifications: 54 II B Data Logging Thermometer with Dual Input
| General Specifications |
| Temperature accuracy |
Above -100°C |
J, K, T, E, and N-type: ±[0.05% + 0.3°C]1 |
| R and S-type: ±[0.05% + 0.4°C]1 |
| Below -100°C |
J, K, E, and N-types: ±[0.20% + 0.3°C]1 |
| T-type: ±[0.50% + 0.3°C] |
| Temperature |
J-type |
-210°C to 1200°C |
| K-type |
-200°C to 1372°C |
| T-type |
-250°C to 400°C |
| E-type |
-150°C to 1000°C |
| N-type |
-200°C to 1300°C1 |
| R and S-type |
0°C to 1767°C1 |
| Temperature scale |
ITS-90 |
| Applicable standards |
NIST-175 |
| Display resolution |
0.1°C, 0.1 K < 1000 |
| 1°C, 1 K ≥ 1000 |
| 1. Only the Fluke Models 53 II B and 54 II B thermometers are capable of measuring N, R, and S-type thermocouples. |
| Environmental Specifications |
| Operating temperature |
-10°C to 50°C |
| Storage temperature |
-40°C to 60°C |
| Humidity (without condensation) |
0% to 90%; 0°C to 35°C |
| 0% to 70%; 0°C to 50°C |
| Safety Specifications |
| Overvoltage category |
CSA C22.2 No. 1010.1 1992; EN 61010 Amendments 1,2 |
| Agency approvals |
CE, CSA, TÜV (pending) |
| Mechanical and General Specifications |
| Size (L x W x D) |
173 x 86 x 38 mm |
| Weight |
400 g |
| Batteries |
3 AA batteries; typical 1000-hour life |
Includes
Includes: 54 II B Data Logging Thermometer with Dual Input
- Impact absorbing holster
- Two 80PK-1 bead probe thermocouples
Accessories
Accessories: 54 II B Data Logging Thermometer with Dual Input
Cases (5)
Fluke C101 Hard Case
Fluke C50 Meter Case
Fluke C510 Leather Meter Case
Fluke C550 Tool Bag
Fluke CXT170 Extreme Case
Other (1)
Fluke TPAK ToolPak™ Magnetic Meter Hanger
Fluke calibration software (1)
Fluke FlukeView® Forms Software with Cable
Temperature calibrators (4)
Fluke 700TC2 Thermocouple Plug Kit 700TC2
Fluke 80PJ-EXT Extension Wire Kit
Fluke 80PK-EXT Extension Wire Kit
Fluke 80PT-EXT Extension Wire Kit
Connectors (2)
Fluke 80CJ-M type J Male Mini-Connectors
Fluke 80CK-M type K Male Mini-Connectors
Probes (8)
Fluke 80PK-1 Bead Probe
Fluke 80PK-22 SureGrip™ Immersion Temperature Probe
Fluke 80PK-24 SureGrip™ Air Temperature Probe
Fluke 80PK-25 SureGrip™ Piercing Temperature Probe
Fluke 80PK-26 SureGrip™ Tapered Temperature Probe
Fluke 80PK-27 SureGrip™ Industrial Surface Temperature Probe
Fluke 80PK-3A Surface Probe
Fluke 80PK-8 Pipe Clamp Temperature Probe
