Hioki clamp-on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology.

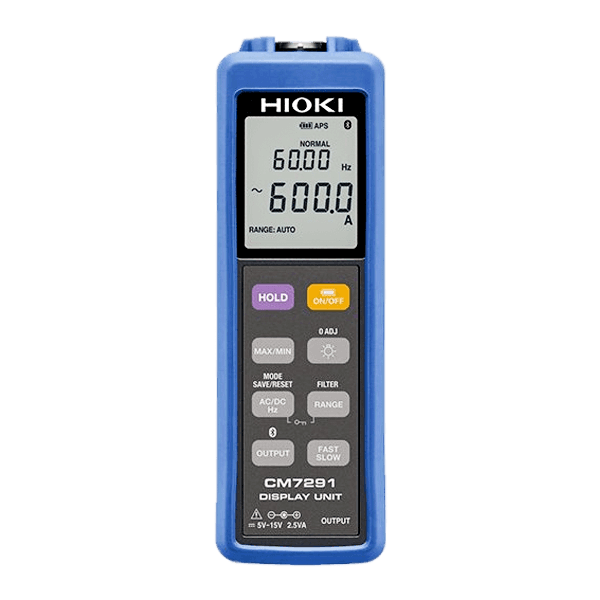

The CM7291 is the wireless display and output unit for the CT7600 and CT7700 AC/DC Current Sensor series, creating a standalone clamp meter for field use or enabling waveform signals to be output to a Hioki memory recorder or logger for further analysis.
Key Features: Hioki CM7291 CLAMP CLAMP
- Send measured values to a smartphone or tablet using Bluetooth® wireless technology
- Use the GENNECT Cross dedicated app to display and review measured values and waveforms in real-time
- Power supply and signal output for Current Sensor CT7000 series
- Simultaneous dual display of the measured values, frequency, and output rate
- Four output formats to output data to loggers or other devices (via Display Unit)
- Supports AC adapter, AA alkaline batteries, and external power supply
Specifications: Hioki CM7291 CLAMP CLAMP
| Sensor |
CT7642, 7742 |
CT7636, 7736 |
CT7631, 7731 |
| Measurement parameters |
DC, AC, DC+AC, Hz |
| Crest factor |
3 at 5000 count or 2.5 at 6000 count for AC and DC+AC |
| Output method |
WAVE, RMS, PEAK, FREQ |
| Input connectors |
HIOKI PL 14 |
| Output update time |
PEAK--- FAST: 0.02 s / NORMAL: 0.2 s / SLOW: 1 s
FREQ--- FAST: FAST: 0.2 s / NORMAL: 0.2 s / SLOW: 3.0 s
(WAVE, RMS: analog output) |
| PEAK sensing duration |
2 ms or greater
(during PEAK MAX/PEAK MIN and PEAK output) |
| Other functions |
Auto range, Zero adjustment at power-up, Analysis display, Filter, Output amplification, Display value hold, Backlight , Auto-power save, Save settings, keypad lock |
| Typical accuracy (WAVE output DC) |
±2.0% rdg. ±10.8 mV
(60.00 A range) |
±2.5% rdg. ±30.8 mV
(60.00 A range) |
±1.5% rdg. ±5.8 mV
(60.00 A range) |
| Typical accuracy (RMS output AC) |
±2.3% rdg. ±10.8 mV
(60.00 A range) |
±2.8% rdg. ±30.8 mV
(60.00 A range) |
±1.8% rdg. ±5.8 mV
(60.00 A range) |
| Communication interface |
Built in Bluetooth® 4.0 LE, Display of measured values on an iOS or Android handset (CM7291 only) |
| Power supply |
LR6 alkaline batteries (AA) ×2, Continuous use: 16 h (backlight OFF and WAVE or RMS output, when used with CT7600s), Rated power 2.5 VA
or AC adapter 9445-02/03 (100 to 240V AC), or 5 to 15 V DC external power supply, Rated power 2.5 VA |
| Dust and water resistance * |
IP54 (with sensor connected and caps fitted to AC adapter and power connector) |
| Dimensions and mass |
52 mm (2.05 in)W × 163 mm (6.42 in)H × 37 mm (1.46 in)D, 220 g (7.8 oz) (including protector and battery) |
Includes: Hioki CM7291 CLAMP CLAMP
Accessories: Hioki CM7291 CLAMP CLAMP
| Accessories |
LR6 alkaline batteries ×2, Protector ×1, Instruction manual ×1 |
