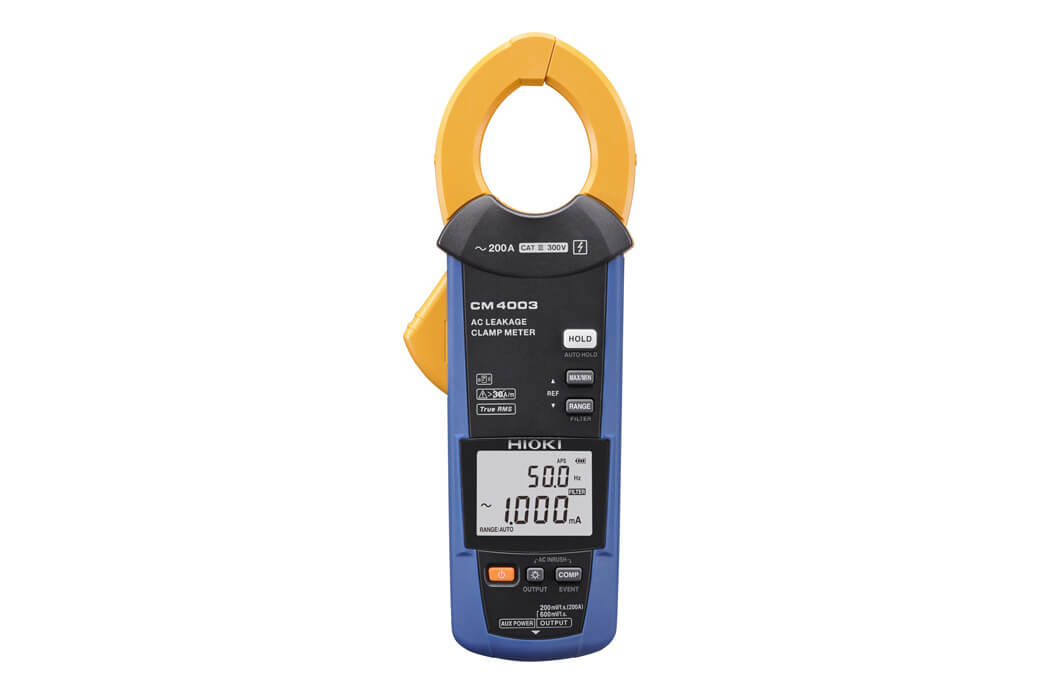

HIOKI CM4003 AC LEAKAGE CLAMP METER

Home › Hioki
Thumbnail
Shop : Tools Bangladesh
Product ID : 4399
Brand : Hioki
Availability : Out of Stock
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

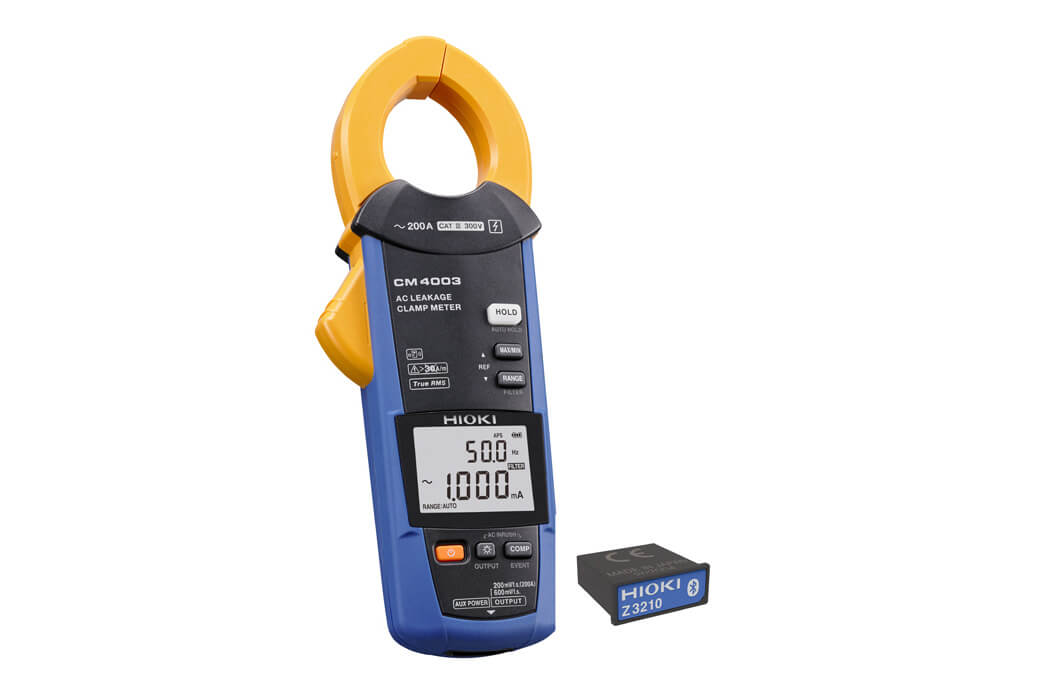

Easy! Just connect the optional Z3210 Wireless Adapter to your Hioki-compatible instrument to make it Bluetooth® ready.

Wirelessly connect Hioki-compliant instruments with a simple connection.
Transmit measured values to your tablet or smartphone.

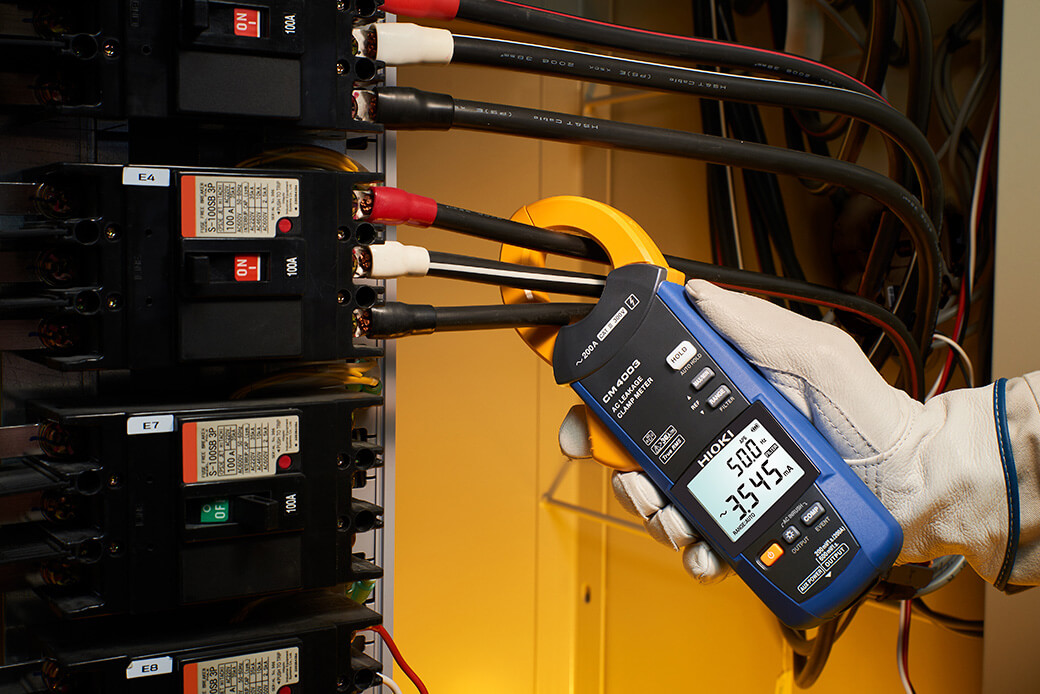

HIOKI CM4003 AC Leakage Clamp Meter Price in Bangladesh offers exceptional value for professionals seeking accurate leakage current measurements. This advanced meter is ideal for detecting insulation failures in electrical systems, ensuring safety and compliance. With its reliable performance and compact design, the HIOKI CM4003 is a trusted choice. Discover the best HIOKI CM4003 AC Leakage Clamp Meter Price in Bangladesh today at Tools Bangladesh.

Key Features

  • Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)
  • Detect minuscule leakage currents with a newly designed sensor. (Core jaw diameter up to φ 40 mm)
  • Broad measurement range extending from leakage currents to load currents
  • Complies with the performance standard set forth in IEC/EN 61557-13, an international standard on leak clamp meters
  • Solve GFCI and RCD problems quickly
  • Speed up pass/fail judgments with the built-in comparator function
  • Output function (waveform/RMS): use with a recorder to record waveforms and fluctuations
  • External power supply: use an optional AC adapter for continuous, long-term measurement
  • CAT III 300 V

Basic specifications

Accuracy guaranteed: 1 year

AC Current range 6.000 mA, 60.00 mA, 600.0 mA, 6.000 A, 60.00 A, 200.0 A, 6 ranges, True RMS
Basic accuracy 45 Hz - 400 Hz: ±1.0% rdg ±5 dgt (6.000 mA to 6.000 A), ±1.5% rdg ±5 dgt (60.00 A, 200.0 A)
Basic accuracy 15 Hz - 45 Hz, 400 Hz - 2 kHz: ±2.0% rdg ±5 dgt
Defined accuracy range: 0.060 mA to 200.0 A
AC Voltage range N/A
Frequency range 15.0 Hz to 2000 Hz
Crest factor 3 (other than 200.0　A range), 1.5 (200.0　A range)
Filter function Cut off frequency: 180 Hz ±30 Hz at filter ON (-3 dB)
Output function RMS (RMS value output), WAVE (waveform output)
Harmonic levels [With Z3210 installed] Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio
*Harmonics can be displayed with our free app GENNECT Cross.
Other functions Max/ Min/ AVG/ PEAK MAX/ PEAK MIN value display, Display value hold and auto hold; Backlight, Auto power save, Buzzer sound, Event count display, Comparator, Simple event recording, Rush current measurement
Display Display refresh rate: 5 times/s
Power supply - AA-size alkaline battery (LR6) × 2; Continuous operating time: 48 hr. (without Z3210 installed), 30 hr. (with Z3210 installed and using wireless communications)
- AC Adapter Z1013 (5 V DC, 2.6 A)
Core jaw diameter φ 40 mm (1.57 in.)
Dimensions and mass 64 mm (2.52 in) W × 233 mm (9.17 in) H × 37 mm (1.46 in) D, 400 g (14.1 oz.)
Included accessories Connection Cable L9097 × 1, USB Cable × 1, Carrying case C0203 × 1, Instruction manual × 1, Operating Precautions × 1, AA-size alkaline battery (LR6) × 2
Included accessories Connection Cable L9097 × 1, USB Cable × 1, Carrying case C0203 × 1, Instruction manual × 1, Operating Precautions × 1, AA-size alkaline battery (LR6) × 2
Included accessories Connection Cable L9097 × 1, USB Cable × 1, Carrying case C0203 × 1, Instruction manual × 1, Operating Precautions × 1, AA-size alkaline battery (LR6) × 2

Easy! Just connect the optional Z3210 Wireless Adapter to your Hioki-compatible instrument to make it Bluetooth® ready.

Wirelessly connect Hioki-compliant instruments with a simple connection.
Transmit measured values to your tablet or smartphone.

HIOKI CM4003 AC Leakage Clamp Meter Price in Bangladesh offers exceptional value for professionals seeking accurate leakage current measurements. This advanced meter is ideal for detecting insulation failures in electrical systems, ensuring safety and compliance. With its reliable performance and compact design, the HIOKI CM4003 is a trusted choice. Discover the best HIOKI CM4003 AC Leakage Clamp Meter Price in Bangladesh today at Tools Bangladesh.

Key Features

  • Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)
  • Detect minuscule leakage currents with a newly designed sensor. (Core jaw diameter up to φ 40 mm)
  • Broad measurement range extending from leakage currents to load currents
  • Complies with the performance standard set forth in IEC/EN 61557-13, an international standard on leak clamp meters
  • Solve GFCI and RCD problems quickly
  • Speed up pass/fail judgments with the built-in comparator function
  • Output function (waveform/RMS): use with a recorder to record waveforms and fluctuations
  • External power supply: use an optional AC adapter for continuous, long-term measurement
  • CAT III 300 V

Basic specifications

Accuracy guaranteed: 1 year

AC Current range 6.000 mA, 60.00 mA, 600.0 mA, 6.000 A, 60.00 A, 200.0 A, 6 ranges, True RMS
Basic accuracy 45 Hz - 400 Hz: ±1.0% rdg ±5 dgt (6.000 mA to 6.000 A), ±1.5% rdg ±5 dgt (60.00 A, 200.0 A)
Basic accuracy 15 Hz - 45 Hz, 400 Hz - 2 kHz: ±2.0% rdg ±5 dgt
Defined accuracy range: 0.060 mA to 200.0 A
AC Voltage range N/A
Frequency range 15.0 Hz to 2000 Hz
Crest factor 3 (other than 200.0　A range), 1.5 (200.0　A range)
Filter function Cut off frequency: 180 Hz ±30 Hz at filter ON (-3 dB)
Output function RMS (RMS value output), WAVE (waveform output)
Harmonic levels [With Z3210 installed] Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio
*Harmonics can be displayed with our free app GENNECT Cross.
Other functions Max/ Min/ AVG/ PEAK MAX/ PEAK MIN value display, Display value hold and auto hold; Backlight, Auto power save, Buzzer sound, Event count display, Comparator, Simple event recording, Rush current measurement
Display Display refresh rate: 5 times/s
Power supply - AA-size alkaline battery (LR6) × 2; Continuous operating time: 48 hr. (without Z3210 installed), 30 hr. (with Z3210 installed and using wireless communications)
- AC Adapter Z1013 (5 V DC, 2.6 A)
Core jaw diameter φ 40 mm (1.57 in.)
Dimensions and mass 64 mm (2.52 in) W × 233 mm (9.17 in) H × 37 mm (1.46 in) D, 400 g (14.1 oz.)
Included accessories Connection Cable L9097 × 1, USB Cable × 1, Carrying case C0203 × 1, Instruction manual × 1, Operating Precautions × 1, AA-size alkaline battery (LR6) × 2

Included accessories Connection Cable L9097 × 1, USB Cable × 1, Carrying case C0203 × 1, Instruction manual × 1, Operating Precautions × 1, AA-size alkaline battery (LR6) × 2

Included accessories Connection Cable L9097 × 1, USB Cable × 1, Carrying case C0203 × 1, Instruction manual × 1, Operating Precautions × 1, AA-size alkaline battery (LR6) × 2
