Hioki clamp meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CM3291 is a true RMS rectified 2000 A AC clamp meter that features a broad operating temperature range of -25°C to 65°C, thin and compact clamp core and optional flexible current sensor that you can attach to let you get into the tightest spots.
CAT IV 300 V, CAT III 600 V

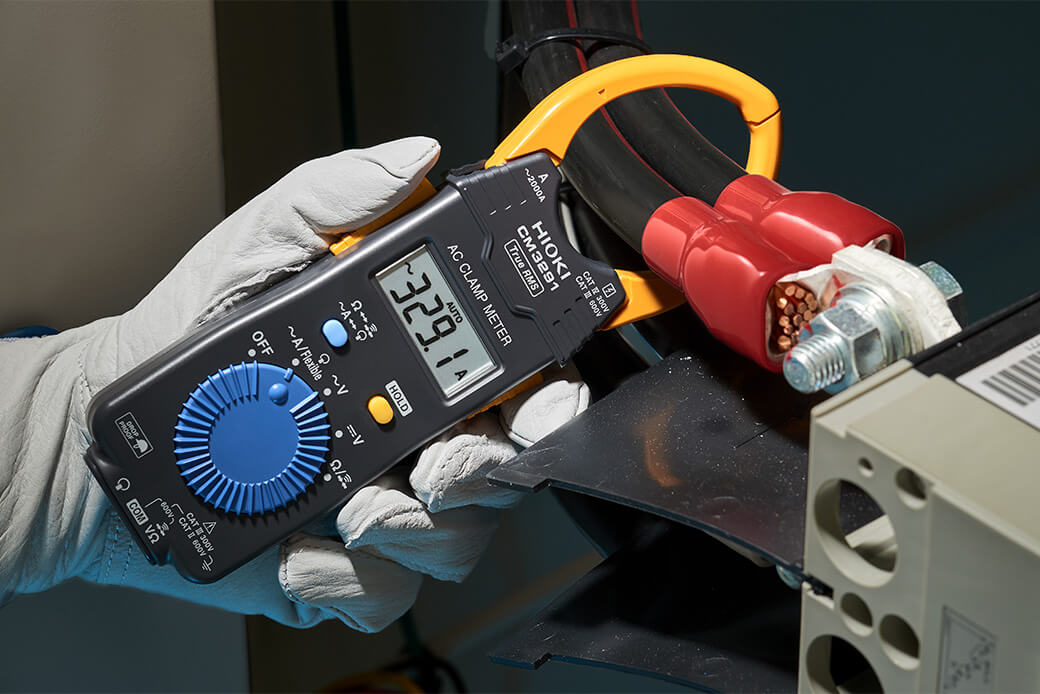

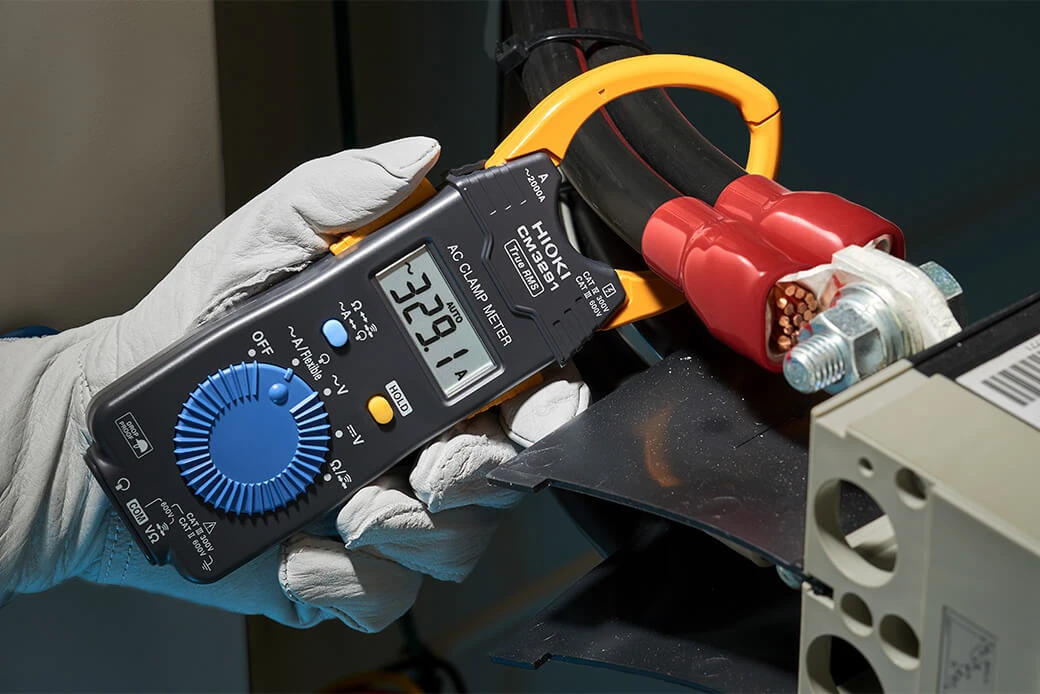

Get into tight spaces even with large jaw

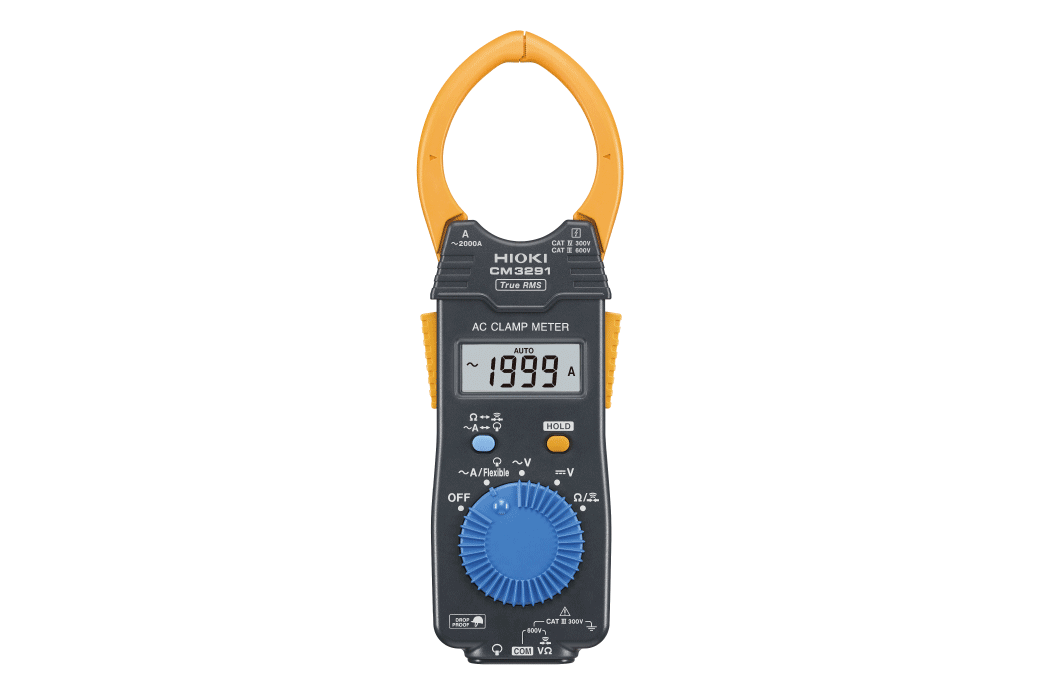

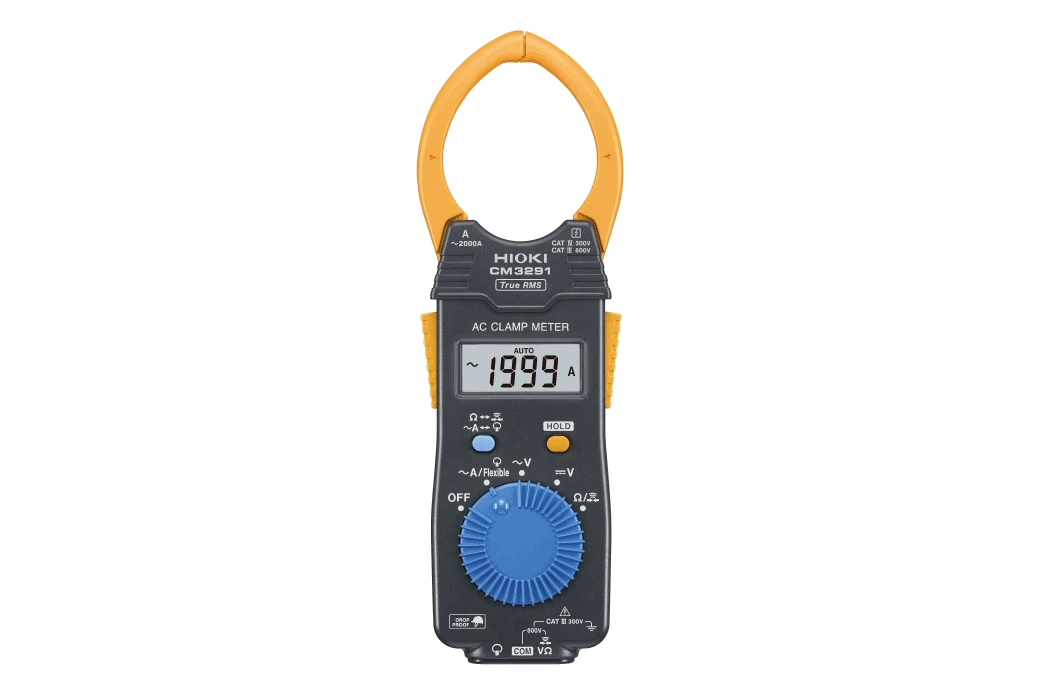

The new AC Clamp Meter CM3291 features a new and innovative jaw design that lets you get between narrow cable gaps despite the large jaw offering, improving work efficiency at the worksite. The compact meter delivers a wide measurement range from a few amperes up to 2000 A.
HIOKI AC CLAMP METER CM3291 Price in Bangladesh offers precise and reliable current measurement for professionals. This advanced clamp meter features high accuracy, easy operation, and durable design, ideal for electrical testing and maintenance. Available at competitive prices, it’s perfect for electricians and engineers seeking quality tools. Discover the best deals on HIOKI AC CLAMP METER CM3291 Price in Bangladesh today for efficient and safe electrical measurements.
Key Features
- AC only, measure up to 2000 A AC
- -25°C to 65°C operating temperature range
- Also measure resistance, continuity, AC and DC voltage
Basic specifications
Accuracy guaranteed: 1 year
| AC Current range |
42.00 to 2000 A, 3 ranges (40 Hz to 1 kHz, True RMS),
Basic accuracy 45-66 Hz: ±1.5% rdg. ±5 dgt. |
| DC Voltage range |
420.0 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt. (at 4.2 V range) |
| AC Voltage range |
4.200 V to 600 V, 4 ranges (45 to 500 Hz, True RMS),
Basic accuracy 45-66 Hz: ±1.8% rdg. ±7 dgt. (at 4.2 V range) |
| Crest factor |
For 2500 counts or less, 2.5 Reduces linearly to 1.5 or less at 4200 counts But, 1.5 or less for 2000 A ACA range |
| Resistance range |
420.0 Ω to 42.00 MΩ, 6 ranges, Basic accuracy: ±2.0 % rdg. ±4 dgt. (at 420 Ω range) |
| Other functions |
Continuity check: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter |
| Power supply |
Coin type lithium battery (CR2032) ×1, Continuous use 70 hours |
| Core jaw diameter |
φ 46 mm (1.81 in), Jaw dimension: 65 mm (2.56 in) W × 13 mm (0.51 in) D |
| Dimensions and mass |
57 mm (2.24 in) W × 198 mm (7.80 in) H × 16 mm (0.63 in) D, 103 g (3.6 oz) |
| Included accessories |

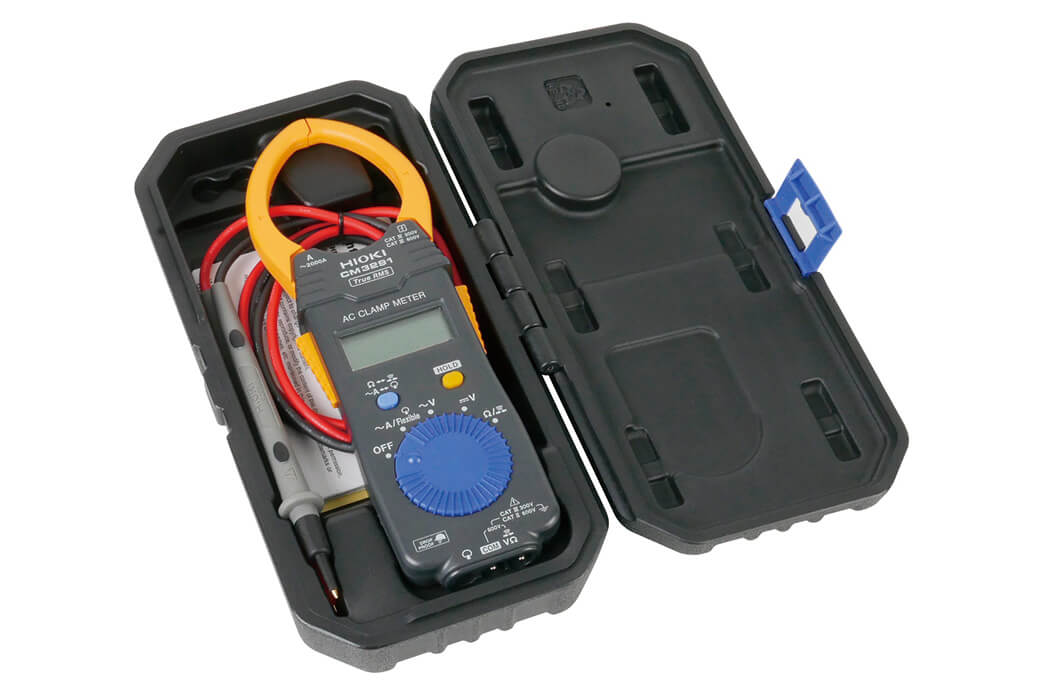

Carrying case ×1, TEST LEAD L9208 ×1, Coin type lithium battery CR2032 (for trial purposes only) ×1, Instruction manual ×1, Download guide ×1, Operating precautions ×1 |
CT6280 Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
| Core jaw dia. |
φ 130 mm (5.12 in) (Cable cross-section diameter: 5 mm (0.20 in); tip cap diameter: 7 mm (0.28 in)) |
| AC Current |
419.9 A/ 4199 A, 2 ranges (±3.0 % rdg. ±5 dgt.) |
| Cable length |
800 mm (31.5 in) |
| Included accessories |
Carrying case ×1, TEST LEAD L9208 ×1, Coin type lithium battery CR2032 (for trial purposes only) ×1, Instruction manual ×1, Download guide ×1, Operating precautions ×1 |
| Included accessories |
Carrying case ×1, TEST LEAD L9208 ×1, Coin type lithium battery CR2032 (for trial purposes only) ×1, Instruction manual ×1, Download guide ×1, Operating precautions ×1 |
