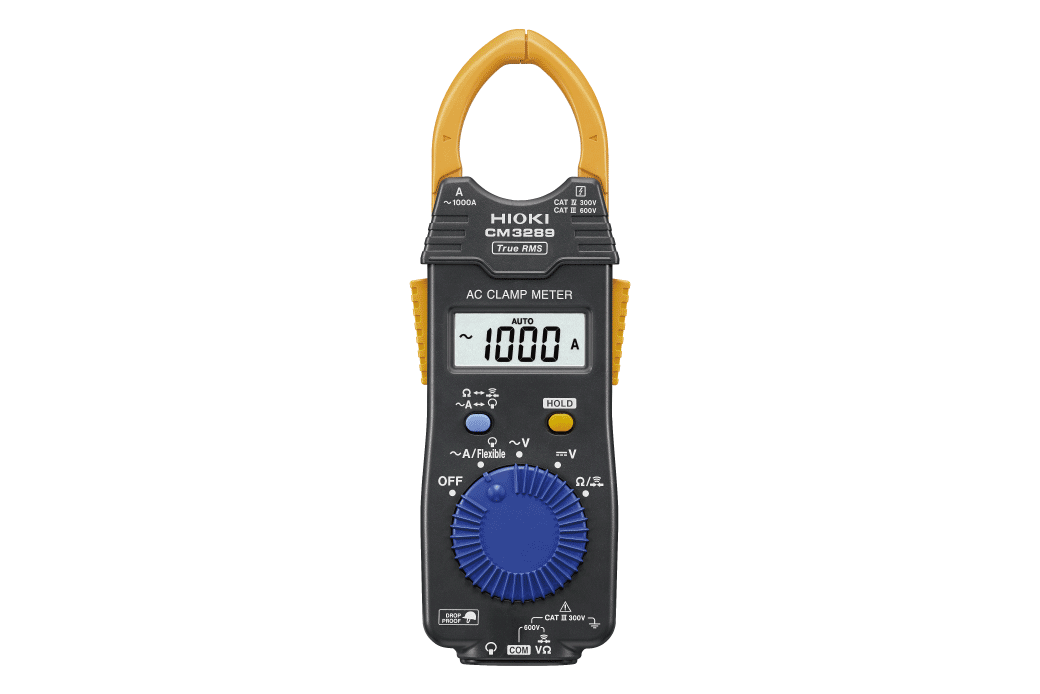

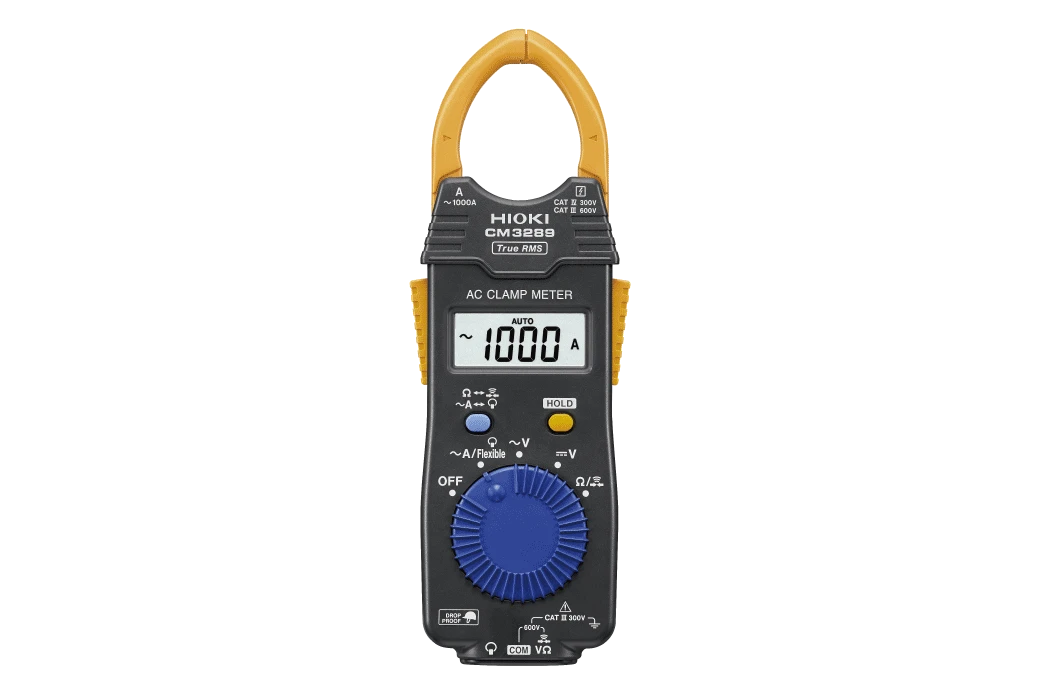

HIOKI CM3289 AC CLAMP METER

Home › Hioki
Thumbnail
Shop : Tools Bangladesh
Product ID : 4396
Brand : Hioki
Availability : Out of Stock
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

Hioki clamp meters are best-in-class measuring devices incorporating Hioki’ s expertise in current sensing technology. The CM3289 is a True RMS rectifying 1000A AC clamp meter that features a broad operating temperature range of -25° C to 65° C, thin and compact clamp core and optional flexible current sensor that you can attach to let you get into the tightest spots.

CAT IV 300 V (Current), CAT III 600 V (Current)
CAT III 300 V (Voltage)

The HIOKI AC CLAMP METER CM3289 Price in Bangladesh offers precise current measurement with easy-to-use features, ideal for electricians and engineers. Known for its durability and accuracy, this clamp meter ensures safe and efficient testing of AC currents. Available at competitive prices in Bangladesh, it’s a trusted choice for professionals seeking reliable electrical measurement tools. Get the best HIOKI AC CLAMP METER CM3289 Price in Bangladesh today!

Key Features

  • The CM3289 is the successor to the popular 3280-20F with a redesigned thinner sensor to help you get into the tightest spaces.
  • New redesigned sensor for even easier clamping
  • Expanded -25 °C to 65 °C operating temperature range
  • Measure even harmonic waveform components using the True RMS method
  • Connect the CT6280 flexible sensor to measure up to 4199 A in thick or paired wires

Basic specifications

Accuracy guaranteed: 1 year

AC Current range 42.00 to 1000 A, 3 ranges
(40 Hz to 1 kHz, True RMS),
Basic accuracy: ±1.5 % rdg. ±5 dgt.
DC Voltage range 420.0 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt.
AC Voltage range 4.200 V to 600 V, 4 ranges
(45 to 500 Hz, True RMS),
Basic accuracy: ±1.8 % rdg. ±7 dgt.
Crest factor 2.5 or less at 2500 counts
(Linearly decreases to 1.5 or less at 4200 count)
Resistance range 420.0 Ω to 42.00 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt.
Other functions Continuity: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter
Display LCD, max. 4199 dgt., Display refresh rate: 400 ms
Power supply Coin type lithium battery (CR2032) ×1
Continuous use 70 hours
Core jaw dia. φ 33 mm (1.30 in)
Dimensions and mass 57 mm (2.24 in) W × 181 mm (7.13 in) H × 16 mm (0.63 in) D, 100 g (3.5 oz)
Included accessories CARRYING CASE 9398 × 1, TEST LEAD L9208 × 1, Coin type lithium battery (CR2032) × 1, Instruction manual × 1

CT6280 Basic specifications

Accuracy guaranteed: 1 year

Core jaw dia. φ 130 mm (5.12 in) (Cable cross-section diameter: 5 mm (0.20 in); tip cap diameter: 7 mm (0.28 in))
AC Current 419.9 A/ 4199 A, 2 ranges (±3.0 % rdg. ±5 dgt.)
Cable length 800 mm (31.5 in)
Included accessories CARRYING CASE 9398 × 1, TEST LEAD L9208 × 1, Coin type lithium battery (CR2032) × 1, Instruction manual × 1
Included accessories CARRYING CASE 9398 × 1, TEST LEAD L9208 × 1, Coin type lithium battery (CR2032) × 1, Instruction manual × 1

Hioki clamp meters are best-in-class measuring devices incorporating Hioki’ s expertise in current sensing technology. The CM3289 is a True RMS rectifying 1000A AC clamp meter that features a broad operating temperature range of -25° C to 65° C, thin and compact clamp core and optional flexible current sensor that you can attach to let you get into the tightest spots.

CAT IV 300 V (Current), CAT III 600 V (Current)
CAT III 300 V (Voltage)

The HIOKI AC CLAMP METER CM3289 Price in Bangladesh offers precise current measurement with easy-to-use features, ideal for electricians and engineers. Known for its durability and accuracy, this clamp meter ensures safe and efficient testing of AC currents. Available at competitive prices in Bangladesh, it’s a trusted choice for professionals seeking reliable electrical measurement tools. Get the best HIOKI AC CLAMP METER CM3289 Price in Bangladesh today!

Key Features

  • The CM3289 is the successor to the popular 3280-20F with a redesigned thinner sensor to help you get into the tightest spaces.
  • New redesigned sensor for even easier clamping
  • Expanded -25 °C to 65 °C operating temperature range
  • Measure even harmonic waveform components using the True RMS method
  • Connect the CT6280 flexible sensor to measure up to 4199 A in thick or paired wires

Basic specifications

Accuracy guaranteed: 1 year

AC Current range 42.00 to 1000 A, 3 ranges
(40 Hz to 1 kHz, True RMS),
Basic accuracy: ±1.5 % rdg. ±5 dgt.
DC Voltage range 420.0 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt.
AC Voltage range 4.200 V to 600 V, 4 ranges
(45 to 500 Hz, True RMS),
Basic accuracy: ±1.8 % rdg. ±7 dgt.
Crest factor 2.5 or less at 2500 counts
(Linearly decreases to 1.5 or less at 4200 count)
Resistance range 420.0 Ω to 42.00 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt.
Other functions Continuity: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter
Display LCD, max. 4199 dgt., Display refresh rate: 400 ms
Power supply Coin type lithium battery (CR2032) ×1
Continuous use 70 hours
Core jaw dia. φ 33 mm (1.30 in)
Dimensions and mass 57 mm (2.24 in) W × 181 mm (7.13 in) H × 16 mm (0.63 in) D, 100 g (3.5 oz)
Included accessories CARRYING CASE 9398 × 1, TEST LEAD L9208 × 1, Coin type lithium battery (CR2032) × 1, Instruction manual × 1

CT6280 Basic specifications

Accuracy guaranteed: 1 year

Core jaw dia. φ 130 mm (5.12 in) (Cable cross-section diameter: 5 mm (0.20 in); tip cap diameter: 7 mm (0.28 in))
AC Current 419.9 A/ 4199 A, 2 ranges (±3.0 % rdg. ±5 dgt.)
Cable length 800 mm (31.5 in)

Included accessories CARRYING CASE 9398 × 1, TEST LEAD L9208 × 1, Coin type lithium battery (CR2032) × 1, Instruction manual × 1

Included accessories CARRYING CASE 9398 × 1, TEST LEAD L9208 × 1, Coin type lithium battery (CR2032) × 1, Instruction manual × 1
