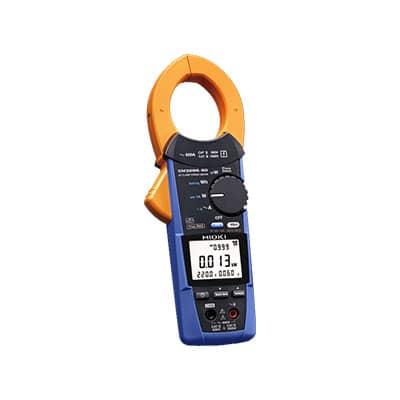

HIOKI CM3286-50 AC CLAMP POWER METER:
Hioki clamp meters are best-in-class handheld current and voltage meters for safely and accurately measuring power lines. The CM3286-50 clamp on the power meter can measure voltage, current, power, power factor, phase angle, reactive power or frequency, as well as detect phase sequence on live lines at any desired point of a single-phase circuit or three-phase circuit. Quickly Check the Current, Voltage, Power, and Power FactorDetect Electricity Theft and Meter Tampering.
Are you trying to find a good, Clam Meter? Yes, this is the perfect moment and place for you. Tools Bangladesh is offering testing supplies and tools in Bangladesh. As a result, You could be able to purchase the desired tool from us in Bangladesh with the most affordable price and delivery options.
Key Features:
- Quickly Check the Current, Voltage, Power, and Power Factor
- Detect Electricity Theft and Meter Tampering
- CAT IV 600 V, CAT III 1000 V
Specifications:
Accuracy guaranteed: 1 year
| Measurement line | Single-phase, Three-phase (balanced with no distortion) |
|---|---|
| Measurement items | Voltage, Current, Voltage/Current peak, Active/Reactive/Apparent power, Power factor, Phase angle (*1), Frequency, Simple Active Energy Consumption (Single-phase) [With Z3210 installed (*2)] Voltage/Current harmonics |
| AC voltage range | [Measurement range] 80.0 V to 600.0 V, Single range, Basic accuracy 45-66 Hz: ±0.7% rdg. ±3 dgt. (Frequency characteristics: 45 to 1 kHz, True RMS) |
| AC current range | [Measurement range] 0.060 A to 600.0 A, 3 range, Basic accuracy 45-66 Hz: ±1.3% rdg. ±3 dgt. (Frequency characteristics: 45 to 1 kHz, True RMS) |
| Power range | [Single phase] 0.005 kW to 360.0 kW Basic accuracy: ±2.0% rdg. ±7 dgt. (50/ 60 Hz, Power factor=1) [Balanced three-phase 3-wire] 0.020 kW to 623.5 kW Basic accuracy: ±3.0% rdg. ±10 dgt. (50/ 60 Hz, Power factor=1) [Balanced three-phase 4-wire] 0.040 kW to 1080 kW Basic accuracy: ±2.0% rdg. ±3 dgt. (50/ 60 Hz, Power factor=1) |
| Harmonic levels | [With Z3210 installed (*2)] Voltage/Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio |
| Other functions | [Phase angle (*1)] lead -180.0° to lag 179.9°, [Power factor] -1.000 to 1.000 [Frequency] 45.0 Hz to 999.9 Hz, PEAK, Phase detection, MAX/MIN/AVG value display, Auto hold, electric meter comparison, unbalanced 3-phase power estimate display, etc. |
| Dustproof and waterproof | IP20 (Voltage measurement in a completely dry condition. When jaw closes) IP50 (While in storage) |
| Power supply | LR03 Alkaline battery ×2 Continuous use: approx. 25 hr (without Z3210 installed), approx. 18 hr. (with Z3210 installed and using wireless communications) Other conditions: 100 A AC measurement, backlight off, 23°C reference value |
| Core jaw dia. | φ 46 mm (1.81 in), Jaw dimensions: 92 mm (3.62 in) W x 18 mm (0.71 in) D mm |
| Dimensions and mass | 65 mm (2.56in) W × 241 mm (9.49in) H × 35 mm (1.38in) D, 450 g (15.9 oz) |
| Included accessories | Connection Cord L9257 ×1, LR03 Alkaline battery ×2, Carrying Case C0203 ×1, Instruction Manual ×2, Operating Precautions ×1 |
