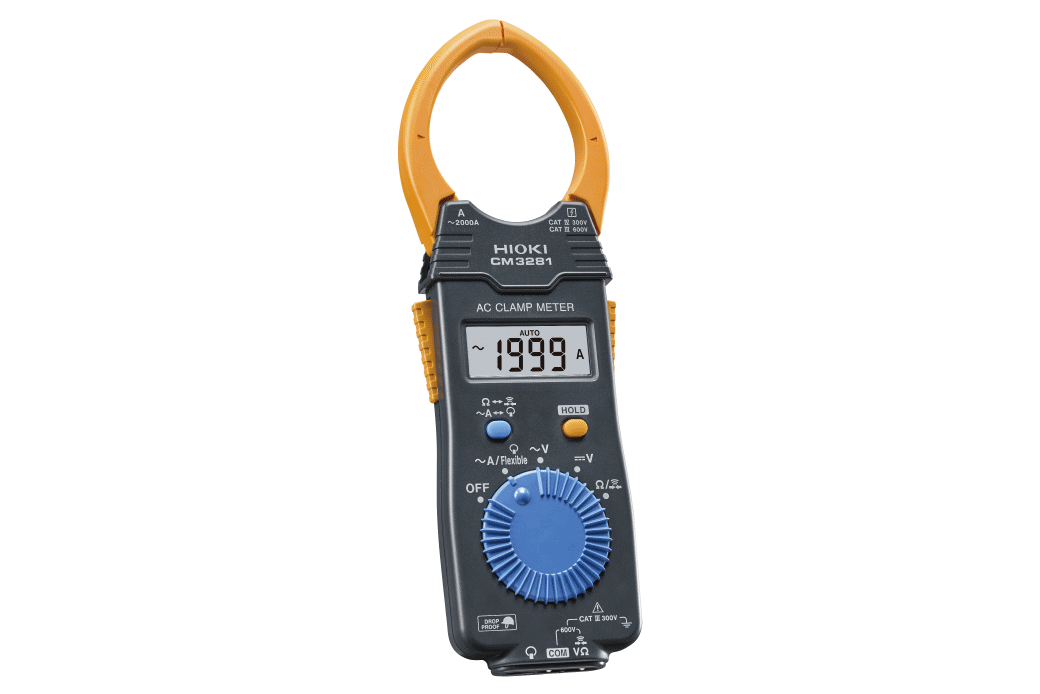

Hioki clamp meters are best-in-class measuring devices incorporating Hioki’ s expertise in current sensing technology. The CM3281 is an average rectified 2000 A AC clamp meter that features a broad operating temperature range of -25°C to 65°C, thin and compact clamp core and optional flexible current sensor that you can attach to let you get into the tightest spots.
CAT IV 300 V
CAT III 600 V
arge Jaw Lets You Clamp with Ease
New and innovative design lets you get between narrow cable gaps despite large jaw offering, improving work efficiency at the worksite. The compact meter delivers a wide measurement range from a few amperes up to 2000 A.
HIOKI AC CLAMP METER CM3281 Price in Bangladesh offers an accurate, durable, and easy-to-use solution for measuring AC current. Ideal for electricians and engineers, this clamp meter ensures reliable performance with advanced features. Available now at competitive rates, the HIOKI AC CLAMP METER CM3281 Price in Bangladesh guarantees great value for professionals seeking precision and quality in electrical testing tools. Get yours today!
Key Features
- AC only, measure up to 2000 A AC
- -25°C to 65°C operating temperature range
- Also measure resistance, continuity, AC and DC voltage
Basic specifications
Accuracy guaranteed: 1 year
| AC Current range |
42.00 to 2000 A, 3 ranges (50 Hz to 60 Hz, Average rectified),
Basic accuracy 50-60 Hz: ±1.5% rdg. ±5 dgt. |
| DC Voltage range |
420.0 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt. (at 4.2 V range) |
| AC Voltage range |
4.200 V to 600 V, 4 ranges (45 to 500 Hz, Average rectified),
Basic accuracy 45-66 Hz: ±1.8% rdg. ±7 dgt. (at 4.2 V range) |
| Resistance range |
420.0 Ω to 42.00 MΩ, 6 ranges, Basic accuracy: ±2.0 % rdg. ±4 dgt. (at 420 Ω range) |
| Other functions |
Continuity check: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter |
| Power supply |
Coin type lithium battery (CR2032) ×1, Continuous use 120 hours |
| Core jaw diameter |
φ 46 mm (1.81 in), Jaw dimension: 65 mm (2.56 in) W × 13 mm (0.51 in) D |
| Dimensions and mass |
57 mm (2.24 in) W × 198 mm (7.80 in) H × 16 mm (0.63 in) D, 103 g (3.6 oz) |
| Included accessories |
Carrying case ×1, TEST LEAD L9208 ×1, Coin type lithium battery CR2032 (for trial purposes only) ×1, Instruction manual ×1, Download guide ×1, Operating precautions ×1 |
CT6280 Basic specifications
Accuracy guaranteed: 1 year
| Core jaw dia. |
φ 130 mm (5.12 in) (Cable cross-section diameter: 5 mm (0.20 in); tip cap diameter: 7 mm (0.28 in)) |
| AC Current |
419.9 A/ 4199 A, 2 ranges (±3.0 % rdg. ±5 dgt.) |
| Cable length |
800 mm (31.5 in) |
| Included accessories |
Carrying case ×1, TEST LEAD L9208 ×1, Coin type lithium battery CR2032 (for trial purposes only) ×1, Instruction manual ×1, Download guide ×1, Operating precautions ×1 |
| Included accessories |
Carrying case ×1, TEST LEAD L9208 ×1, Coin type lithium battery CR2032 (for trial purposes only) ×1, Instruction manual ×1, Download guide ×1, Operating precautions ×1 |
