• Key Features

• RUN TIME : Up to 62 minutes of continuous operation using two 18V LXT® 5.0Ah batteries (batteries not included)
• POWER : Powerful BL™ Brushless Motor generates 64 CFM of suction power and 44" of water lift
• EFFICIENCY : Two stage HEPA filtration system captures 99.97% of particulates .3 microns and larger
• CONVENIENCE : AWS® for wireless power-on/off communication with dust extractor
• INCLUDES : 2 Adapters, HEPA filter and filter dust bag.

• Additional Features

• Powerful BL™ Brushless Motor generates 64 CFM of suction power and 44" of water lift
• Up to 62 minutes of continuous operation on normal setting and 33 minutes on high setting using two 18V LXT® 5.0Ah batteries BL1850B
• Efficient two stage HEPA filter captures 99.97% of particulates .3 microns and larger extending the life of the main filter
• Filter cleaning mechanism designed to help maintain optimum suction efficiency
• Auto-start Wireless System (AWS®) utilizes Bluetooth® technology for wireless power-on/off communication between tool and dust extractor
• AWS® capable with Auto-Start Wireless Transmitter (part no. 198901-5) sold separately
• The BL™ Brushless Motor eliminates carbon brushes, enabling the BL™ Motor to run cooler and more efficiently for longer life
• Includes the 2 tool adapters for hose connection to most Makita dust extraction attachments
• Easily accessible side-loading batteries for uninterrupted workflow
• Convenient and easy to replace disposable filter dust bag
• Push button controller for power (high/normal) selection and AWS® (on/off) operation; conveniently attaches to harness waist belt
• Compact and lightweight design; weighs only 15 lbs. with batteries
• Padded shoulder straps and waist belt with multiple adjustments for improved fit and comfort
• Quiet operating sound level of 70 dB(A) on high power and 65 on normal power
• 18V LXT® Lithium-Ion 5.0Ah battery BL1850B, features an integrated L.E.D. battery charge level indicator
• 18V LXT® Lithium-Ion 5.0Ah battery BL1850B provides up to 65% more run time per charge compared to BL1830
• 18V LXT® Lithium-Ion 5.0Ah battery BL1850B reaches a full charge in 45 minutes or less
• Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging and over-heating
• Dual Port Rapid Optimum Charger communicates with the battery's built-in chip throughout the charging process to optimize battery life by actively controlling current, voltage and temperature
• Dual Port Rapid Optimum Charger has a built-in fan to cool the battery for faster, more efficient charging
• Compatible with Makita 18V Lithium-Ion batteries with a Star symbol
• 3-year limited warranty on tool, battery and charger
• Only use genuine Makita batteries and chargers

• Gross Container Size : 1.6 gal.
• Continuous Use (max, in minutes) : 33 min.
• Air Flow Rate : 64 CFM
• Static Water Lift : 44"
• Working Sound Level : 65 dB(A)
• Battery : 2X 18V LXT® Lithium-Ion
• Dimensions (LxWxH) : 11-3/4" x 6-7/8" x 20-5/8"
• Equipped Filter Efficiency : 99.97% of .3 microns
• Net Weight (with battery) : 15 lbs.
• HEPA filter : Yes
• Power Type : Cordless
• Automatic-start Wireless System (AWS®) : Capable (transmitter sold separately)
• Shipping Weight : 26 lbs.
• UPC Code : 088381-726719

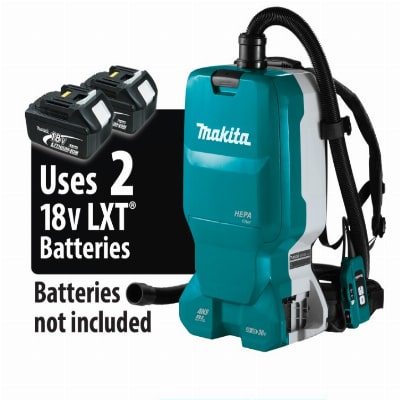

1) 18V X2 LXT® Brushless 1.6 Gal. HEPA Filter Backpack Dust Extractor, AWS® Capable (XCV18ZX)
(2) 18V LXT® Lithium-Ion 5.0Ah Battery (BL1850B)
(1) 18V LXT® Lithium-Ion Dual Port Charger (DC18RD)
(1) Flexible Hose, 1" x 59" (152992-0)
(1) Main HEPA Filter (191D12-9)
(1) Tool Cuff Adapter, 22mm for 1" hose (417765-1)
(1) Tool Cuff Adapter, 24mm for 1" hose (424379-9)
(1) Harness, XCV18 (162750-6)
(1) Filter Bag, 10/pk (191C26-2)
