The Pro3000™ Tone and Probe Series provides clear and precise tracing of communication cabling. The innovative filtered probe obstructs signal interference present in the environment (caused by power cables and lighting) when listening for tone. The probe’s powerful speaker makes tracing cables through drywall, wood or other enclosures quick and easy.
The Pro3000™ toner’s patented SmartTone™ technology (with five different tones for exact pair identification) allows the technician to identify individual pairs. The tone generator is also capable of sending tone up to 10 miles (16 kilometers) on most cables! The angled-bed-of-nails clips allow easy access to individual wires, and the RJ-11 connector is ideal for use on telephone jacks. Attach the nylon pouch to your belt, and you will be equipped for any wire identification job.
Product Highlights
Pro3000 Series Tone & Probe Kits tone and trace inactive wiring.
- Clear - Innovative filter technology blocks interference (“buzz”) that makes tracing difficult (“F” models only)
- Precise – SmartTone™ technology provides five distinct tones for exact pair identification
- Sends loud tone up to 10 miles (16 kilometers) on most cables

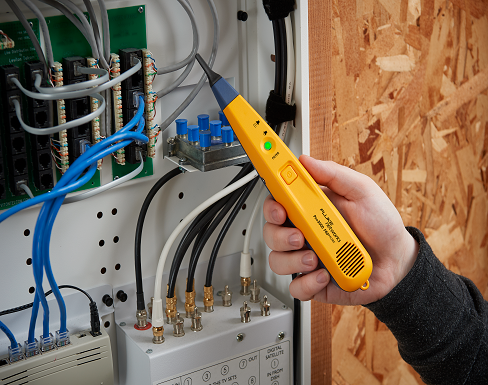

- Loud speaker on probe makes the tone easier to hear through drywall, wood, and other enclosures
- Angled bed-of-nails clips allow easy access to individual pairs
- RJ-11 connector is ideal for use on telephone jacks
- Attach nylon pouch (included in kit) to your belt for easy transport
Pro3000™ Analog Tone Generator Specifications
| Feature |
Specification |
| User Interface |
Slide switch: Continuity or Tone mode<br>Push‑button: SOLID / ALT / OFF<br>Tone LED<br>Continuity/Polarity LED |
| Tone Frequencies |
Solid: 1 000 Hz (nominal)<br>Alternating: 1 000 / 1 500 Hz (nominal) |
| Over‑Voltage Protection |
Up to 60 Vdc (in Tone/Polarity mode) |
| Output Power |
8 dBm into 600 Ω (in Tone mode) |
| Continuity Mode Output |
8 Vdc (with fresh battery) |
| Battery |
9 V alkaline |
| Operating Temperature |
–20 °C to +60 °C |
| Storage Temperature |
–40 °C to +70 °C |
| Case Dimensions |
2.7″ × 2.4″ × 1.4″ (6.9 × 6.1 × 3.6 cm) |
| Tone Reach |
Up to 10 miles (16 km) on most cables |
| Additional Features |
SmartTone™ (5 distinct cadences)<br>Continuity testing & polarity check<br>Angled bed-of-nails clips<br>RJ‑11 phone/data jack support |
Pro3000™ Analog (Unfiltered) Probe Specifications
| Feature |
Specification |
| User Interface |
ON/OFF push‑button (hold to operate) |
| Controls |
Volume dial; replaceable tip; 3.5 mm jack |
| Battery |
9 V alkaline |
| Operating Temperature |
–20 °C to +60 °C |
| Storage Temperature |
–40 °C to +70 °C |
| Dimensions |
9.8″ × 1.6″ × 1.3″ (24.9 × 4.1 × 3.3 cm) |
| Additional Features |
Loud speaker for tracing through walls/enclosures; headphone jack |
Pro3000F™ Filtered Probe (60 Hz / 50 Hz) Specifications
| Feature |
Specification |
| User Interface |
ON/OFF push‑button (1s press to activate; press to off; auto‑off after 5 min) |
| Mode Selector |
Filtered / Unfiltered switch (LED status: Green = filtered; Red = unfiltered) |
| Controls |
Volume dial; replaceable tip; 3.5 mm jack |
| Frequencies Filtered |
Pro3000F60: blocks 60 Hz + harmonics<br>Pro3000F50: blocks 50 Hz + harmonics |
| Battery |
9 V alkaline |
| Operating Temperature |
–20 °C to +60 °C |
| Storage Temperature |
–40 °C to +70 °C |
| Dimensions |
9.8″ × 1.6″ × 1.3″ (24.9 × 4.1 × 3.3 cm) |
| Additional Features |
Interference-rejecting filter; auto-off; loud speaker; headphone jack |
Pro3000 Analog Probe replacement tip (two per bag)
Pro3000 Analog Probe replacement tip (two per bag)
