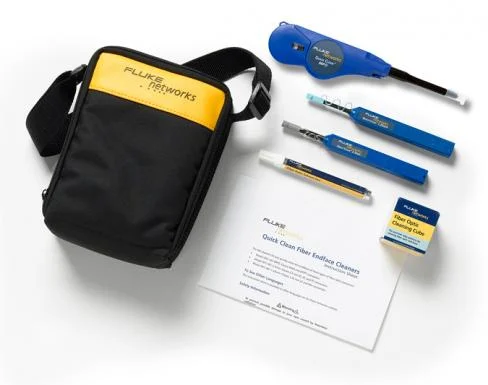

Fluke Networks Fiber Optic Cleaning Kits contain the best fiber optic cleaning tools and products to effectively remove the toughest contaminants in any optical fiber cable (OFC) network. With a variety of kit options available, you can choose between the easy-to-use Quick Clean™ Cleaners, the convenient cleaning cube/card, and the best optic solvent pen to clean both patch cords and fiber end faces inside ports. Each of the eight fiber optic cleaning kits include products and materials that are lint-free and enable an optimal wet or dry cleaning process.
These customized solvents are more effective than the old isopropyl alcohol (IPA) method used to clean fiber end faces. These new solvents are more effective than IPA at dissolving many contaminants found on optical fiber cables, especially non-ionic compounds like bugger gel and pulling lube.
Product Highlights
The complete solution for precision end-face fiber optic cable cleaning.
- Each fiber cable cleaner kit includes the supplies you need to eliminate the #1 cause of fiber optic link failure: contamination
- Cleans all fiber connector types in data center and campus environments
- Quick Clean™ Cleaners—no training required
- Solvent pen precisely dispenses specially formulated fiber optic cleaning solution
- Optical Fiber Cable (OFC) cleaner cards for convenient cleaning of fiber end faces
- Rugged NFC kit case stores and transports all fiber optic cleaning tools and supplies
Specifications
Quick Clean 1.25mm
Contents: Each unit cleans a minimum of 500 end faces
Dimensions: 0.69” x 0.69” x 7.05”
Material: Proprietary lint-free cleaning strand
Quick Clean 2.5mm
Contents: Each unit cleans a minimum of 500 end faces
Dimensions: 0.69” x 0.69” x 7.05”
Material: Proprietary lint-free cleaning strand
Quick Clean MPO
Contents: Each unit cleans a minimum of 600 end faces
Dimensions: 0.87” x 2.22”x 7.46”
Material: Proprietary lint-free cleaning strand
Cleaning Card
Contents: 12 cleaning zones
Dimensions: 3.75” x 2” x 0.1”
Material: Lint-free 55% cellulose/45% polyester
Cleaning Cube
Contents: 125 wipes – each cleans up to 4 end-faces
Dimensions: 2” x 2” x 2”
Material: Lint-free 55% cellulose/45% polyester
Solvent Pen
Contents: 9 grams of fiber optic solvent
Dispenser: Felt-tip, spring-activated valve in aluminum pen body
Dimensions: 5.5” x 0.5” diameter
Swabs – 2.5mm
Contents: 50 swabs
Dimensions: 4.0” x 1.0” diameter
Material: 100ppi medical grade polyurethane sealed foam
Swabs – 1.25mm
Contents: 25 swabs
Dimensions: 6.5” x 1.0” diameter
Material: Proprietary compressed polyester fiber
