Product overview: Fluke Networks FI-3000 FiberInspector™ Pro Inspection Camera

The FI-3000 FiberInspector™ Pro makes inspecting MPO and single fiber optic cables easy and efficient. Instant, real-time image with simple touchscreen gestures to view the full connector down to individual end faces. Automated pass/fail results are available in seconds. Store results on your phone and share with the mobile app. Versiv owners can also use Link Ware software. Compact, ergonomic design with autofocus makes it comfortable and fast.

Key features

  • MPO and single strand fiber inspection camera with instant Live View
  • Kit includes FI-3000 FiberInspector Ultra camera, tip set, adapter, holster and case
  • Autofocus/Auto centering multi-camera design and automated pass/fail
  • Total MPO visibility with Live View from full trunk to individual end face
  • For single strand and 1 or 2 rows of 8/12/16 UPC or APC connectors

Specifications: Fluke Networks FI-3000 FiberInspector™ Pro Inspection Camera

Specifications
Temperature range Operating: -10 °C to +45 °C (+14 °F to +113 °F)
Storage: -10 °C to +60 °C (+14 °F to +140 °F)
Humidity range Operating: 0 % to 95 % (32 °F to 95 °F, 0 °C to 35 °C)
RH non-condensing
Storage: 0 % to 95 % (95 °F to 113 °F, 35 °C to 45 °C)
RH non-condensing
Altitude Operating: 4,000 m (3,200 m with AC adapter)
Storage: 12,000 m
Vibration 2 g, 5 Hz to 500 Hz
Shock 1 meter drop test
Safety IEC 61010-1: Pollution Degree 2
EMC IEC 61326-1: Controlled Electromagnetic Environment; IEC 61326-2-1
CISPR 11: Group 2, Class A
USA (FCC): 47 CFR 15 Intentional Radiators: This device complies with part 15 of the FCC rules.
Endtype support Single fiber and MPO: 1x8 (8 fibers), 1x12 (8, 10, or 12 fibers), 1x16 (16 fibers), 2x12 (16, 20, or 24 fibers), 2x16 (32 fibers)
Test limits IEC 61300-3-35 ED. 2 MM
IEC 61300-3-35 ED. 2 SM APC
Document only
Optional automated pass/fail test time Less than 2 seconds per fiber
Camera type 5 Megapixel 1/4-inch CMOS sensor
Field of view 610 µm x 460 µm
Resolution 1 µm
Light source LED, >100,000 hr life
Endface illumination Coaxial blue LED
Resolution White LED
Battery type Lithium-ion; 10.8 hour life
Power adapter Input: 100 to 240 VAC ±10%, 50/60Hz
Output: 15 VDC, 2 A maximum
Class II
Wireless transmission* Output power: <100 mW Frequency ranges: 2.4 GHz (2412 MHz to 2462 MHz)
Dimensions 6.625 x 5.375 x 2.125 in (168 x 137 x 54 mm)
(with no dust cap or adapter tip)
Length with dust cap: 7.5 in (191 mm)
Weight 11.5 oz (326 gm)
(with dust cap and no adapter tip)

Models: Fluke Networks FI-3000 FiberInspector™ Pro Inspection Camera

FI-3000

Fluke Networks FI-3000 FiberInspector™ Pro Inspection Camera

Part#: 4996225
UPC#: 7 54082 14688 9

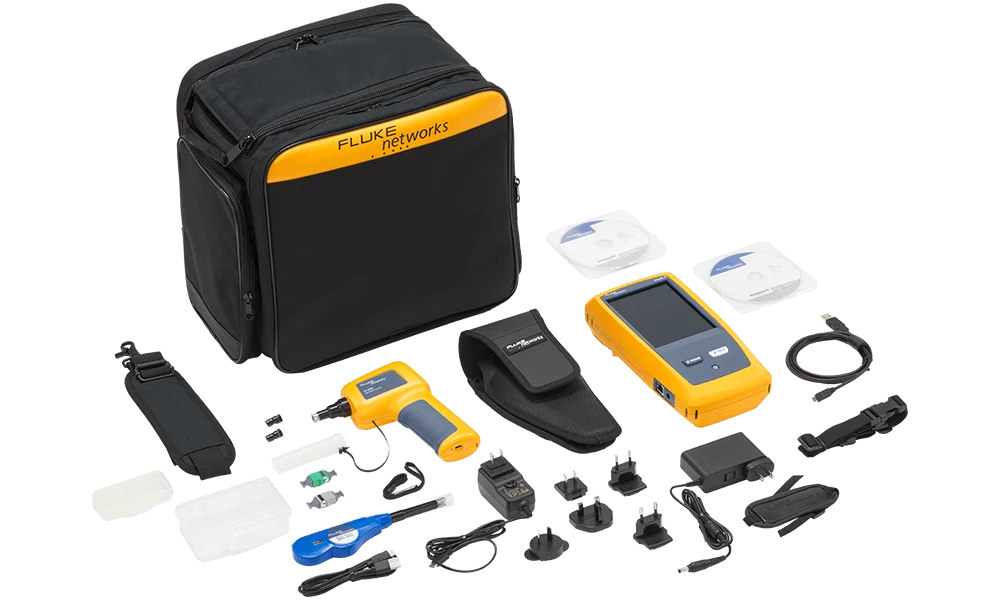

Includes:

  • FI-3000 FiberInspector™ Ultra camera
  • Tip set (12/24 UPC and 12/24 APC)
  • Single fiber adapter for FI-1000 tips
  • AC charger
  • Getting started guide
  • Holster
  • Soft carrying case

Product overview: Fluke Networks FI-3000 FiberInspector™ Pro Inspection Camera

The FI-3000 FiberInspector™ Pro makes inspecting MPO and single fiber optic cables easy and efficient. Instant, real-time image with simple touchscreen gestures to view the full connector down to individual end faces. Automated pass/fail results are available in seconds. Store results on your phone and share with the mobile app. Versiv owners can also use Link Ware software. Compact, ergonomic design with autofocus makes it comfortable and fast.

Key features

  • MPO and single strand fiber inspection camera with instant Live View
  • Kit includes FI-3000 FiberInspector Ultra camera, tip set, adapter, holster and case
  • Autofocus/Auto centering multi-camera design and automated pass/fail
  • Total MPO visibility with Live View from full trunk to individual end face
  • For single strand and 1 or 2 rows of 8/12/16 UPC or APC connectors

Specifications: Fluke Networks FI-3000 FiberInspector™ Pro Inspection Camera

Specifications
Temperature range Operating: -10 °C to +45 °C (+14 °F to +113 °F)
Storage: -10 °C to +60 °C (+14 °F to +140 °F)
Humidity range Operating: 0 % to 95 % (32 °F to 95 °F, 0 °C to 35 °C)
RH non-condensing
Storage: 0 % to 95 % (95 °F to 113 °F, 35 °C to 45 °C)
RH non-condensing
Altitude Operating: 4,000 m (3,200 m with AC adapter)
Storage: 12,000 m
Vibration 2 g, 5 Hz to 500 Hz
Shock 1 meter drop test
Safety IEC 61010-1: Pollution Degree 2
EMC IEC 61326-1: Controlled Electromagnetic Environment; IEC 61326-2-1
CISPR 11: Group 2, Class A
USA (FCC): 47 CFR 15 Intentional Radiators: This device complies with part 15 of the FCC rules.
Endtype support Single fiber and MPO: 1x8 (8 fibers), 1x12 (8, 10, or 12 fibers), 1x16 (16 fibers), 2x12 (16, 20, or 24 fibers), 2x16 (32 fibers)
Test limits IEC 61300-3-35 ED. 2 MM
IEC 61300-3-35 ED. 2 SM APC
Document only
Optional automated pass/fail test time Less than 2 seconds per fiber
Camera type 5 Megapixel 1/4-inch CMOS sensor
Field of view 610 µm x 460 µm
Resolution 1 µm
Light source LED, >100,000 hr life
Endface illumination Coaxial blue LED
Resolution White LED
Battery type Lithium-ion; 10.8 hour life
Power adapter Input: 100 to 240 VAC ±10%, 50/60Hz
Output: 15 VDC, 2 A maximum
Class II
Wireless transmission* Output power: <100 mW Frequency ranges: 2.4 GHz (2412 MHz to 2462 MHz)
Dimensions 6.625 x 5.375 x 2.125 in (168 x 137 x 54 mm)
(with no dust cap or adapter tip)
Length with dust cap: 7.5 in (191 mm)
Weight 11.5 oz (326 gm)
(with dust cap and no adapter tip)

Models: Fluke Networks FI-3000 FiberInspector™ Pro Inspection Camera

FI-3000

Fluke Networks FI-3000 FiberInspector™ Pro Inspection Camera

Part#: 4996225
UPC#: 7 54082 14688 9

Includes:

  • FI-3000 FiberInspector™ Ultra camera
  • Tip set (12/24 UPC and 12/24 APC)
  • Single fiber adapter for FI-1000 tips
  • AC charger
  • Getting started guide
  • Holster
  • Soft carrying case
