VFLs work well for exposed lengths of fiber near a patch panel by illuminating bad connections and breaks. They are not very helpful for cable runs more than a few meters, or when the cable not visible or accessible, or when the laser light can’t penetrate the jacket.

Optical Time Domain Reflectometers (OTDR) provides graphical data and analysis along the entire length of a cable, way beyond the reach of a VFL, but they can be expensive and require more time to and skill to operate.

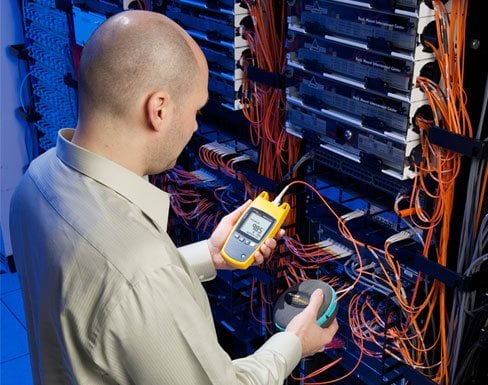

Fiber QuickMap fills the gap between a VFL and an OTDR. These models have the simplicity of a VFL, and provide distance and power information on high losses, breaks, and the end of the fiber. They also identify live fiber

Product Highlights

Multimode Fiber Distance and Fault Locator

  • Works on multimode fiber, 50/125µm and 62.5/125 µm
  • 850 nm output wavelength. Measure up to 4,921 feet (1,500 metres) of fiber in seconds
  • Locate severe bends, high-loss splices, breaks and dirty connectors in multimode fiber
  • Measure and locate high-loss splices
  • Locate the end of a fiber
  • Find potential sources of high bit error rates caused by reflectance from dirty or poor connections
  • Detects live optical signals before it begins testing
  • Quick set-up. Connect your fiber and press the Test button. No lengthy set-up necessary
  • Find problems quickly. Six-second test time—no more blind troubleshooting that can waste hours
  • Change the Index of Refraction (IOR) to improve fiber length accuracy
  • Visible in dark areas. Backlighted display turns off automatically
  • Removable SC adapter is easily cleaned
  • Optional LC, ST and FT interchangeable adapters are available
  • Long battery life, 1,500 tests (typical) from 2 AA alkaline batteries
  • Rugged construction; vibration and drop tested to 1 meter

VisiFault™ Visual Fault Locator – Technical Specifications

Optical Characteristics

Parameter Specification
Fiber Compatibility Multimode & Singlemode
Wavelength 650 nm (visible red)
Laser Safety Rating Class II
Output Power < 1.3 mW (commonly noted as ≤ 1.0 mW)
Output Modes Continuous (steady) and Flashing (2–3 Hz pulsed)
Range ~3 km (multimode), ~4 km (singlemode)



Environmental & Mechanical

Parameter Specification
Operating Temp. 0 °C to 40 °C
Storage Temp. –20 °C to +60 °C
Relative Humidity Up to 95% (10–35 °C)
Vibration Random, 2 g, 5–500 Hz
Shock Resistance Survives 1 m drop onto face and corners
Operating Altitude Up to 3000 m above sea level



General Specifications

Parameter Specification
Dimensions 157 × 52 × 37 mm (6.2 × 2.0 × 1.3 in)
Weight 0.18 kg (5.7 oz) including batteries
Connector Adapter 2.5 mm universal (SC, ST, FC, FJ); optional 1.25 mm (LC, MU) via NF380 accessory
Protective Cap Tethered end cap for adapter protection
Controls On/Off switch; toggle between continuous/flashing modes
Battery Type 2 × AA
Battery Life > 80 hours (continuous mode)
Carrying Case Soft-sided with belt loop
Safety Certifications CSA C22.2 No. 1010.1‑1992, EN 61010‑1, CE



Summary

  • Rugged design: energy-absorbing case, drop and vibration resistant

  • Bright, visible red laser for clear fiber tracing and fault detection

  • Flexible connector compatibility with both standard (2.5 mm) and SFF (1.25 mm) ferrules

  • Dual-mode operation enhances ease of locating and identifying fibers

  • Proven longevity with over 80 hours of battery life using standard AA cells

Includes multimode fiber fault locator unit, screw on interchangeable SC adapter, 4-language Quick Reference Guide (manuals in 9 languages available on-line), safety instruction manual, and batteries.

Includes multimode fiber fault locator unit, screw on interchangeable SC adapter, 4-language Quick Reference Guide (manuals in 9 languages available on-line), safety instruction manual, and batteries.
