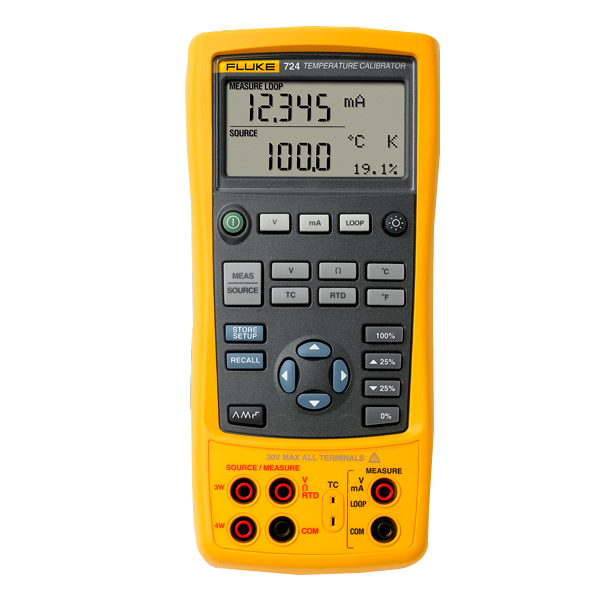

Fluke 724 Temperature Calibrator

Home › Fluke
Thumbnail
Shop : Tools Bangladesh
Product ID : 83
Brand : Fluke
Availability : In Stock (1)
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

Model: Fluke 724 Temperature Calibrator

Fluke 724 Temperature Calibrator offers everything you need to troubleshoot and calibrate temperature

The Fluke 724 is powerful yet easy-to-use temperature calibrator that sources and measures 10 thermocouple types, and 7 RTD types, plus volts and ohms. It also measures mA while supplying loop power. You can use it to test and calibrate almost any temperature instrument so you only have to carry one tool to expertly test all the temperature sensors and transmitters in your plant.

The Fluke 724 even handles high-speed pulsed RTD circuits and provides loop power. The dual-line measure/source display lets you source temperature and views loop current at the same time. And with its simple, "no menus controls, you'll be able to get all your testing done faster.

Fluke 724 is not only a temperature calibrator but also the value of this product you can't amazing on the workplace what is giving the performance. Check out it from Tools Bangladesh.

Key features: Fluke 724 Temperature Calibrator

  • A powerful, easy-to-use calibrator that measures and sources functions to test and calibrate most temperature instruments
  • Displays input and output simultaneously on the easy-to-read dual display
  • Measures RTDs, thermocouples, ohms, and volts to test sensors and transmitters
  • Source/simulates thermocouples, RTDs, volts, and ohms to calibrate transmitters

Specifications: Fluke 724 Temperature Calibrator

Measurement Accuracy
Voltage DC 30.000 V 0.02% + 2 counts (upper display)
20.000 V 0.02% + 2 counts (lower display)
100.00 mV 0.02% + 2 counts
-10.00 mV to 75.00 mV 0.025% + 1 count (via TC connector)
Current DC 24.000 mA 0.02% + 2 counts
Resistance 0.0 to 400.0 Ω 0.1 Ω (4-wire), 0.15 Ω (2- and 3-wire)
401 to 1500 Ω 0.5 Ω (4-wire), 1 Ω (2- and 3-wire)
1500 to 3200 Ω 1 Ω (4-wire), 1.5 Ω (2- and 3-wire)
Source Accuracy
Voltage DC 100.00 mV 0.02% + 2 counts
10.000 V 0.02% + 2 counts
-10.00 mV to 75.00 mV 0.025 % + 1 count (via TC connector)
Resistance 15.0 to 400.0 Ω 0.15 Ω (exc. current 0.15 to 0.5 mA), 0.1 Ω (exc. current 0.5 to 2 mA)
401 to 1500 Ω 0.5 Ω (excitation current 0.05 to 0.8 mA)
1500 to 3200 Ω 1 Ω (excitation current 0.05 to 0.4 mA)
RTDs and Thermocouples
Measure accuracy NI-120 0.2°C
PT-100 (385) 0.33°C
PT-100 (393) 0.3°C
PT-100 (JIS) 0.3°C
PT-200 (385) 0.2°C
PT-500 (385) 0.3°C
PT-1000 (385) 0.2°C
Resolution 0.1°C
J 0.7°C
K 0.8°C
T 0.8°C
E 0.7°C
R 1.8°C
S 1.5°C
B 1.4°C
L 0.7°C
U 0.75°C
N 0.9°C
Resolution J, K, T, E, L, N, U: 0.1°C, 0.1°F B, R, S: 1°C, 1°F
XK 0.6°C
BP 1.2°C
Source accuracy NI-120 0.2°C
PT-100 (385) 0.33°C
PT-100 (393) 0.3°C
PT-100 (JIS) 0.3°C
PT-200 (385) 0.2°C
PT-500 (385) 0.3°C
PT-1000 (385) 0.2°C
Resolution 0.1°C
Accuracy stated for 4-wire measurement.
J 0.7°C
K 0.8°C
T 0.8°C
E 0.7°C
R 1.4°C
S 1.5°C
B 1.4°C
L 0.7°C
U 0.75°C
N 0.9°C
Resolution J, K, T, E, L, N, U: 0.1°C, B, R, S: 1°C
XK 0.6°C
BP 1.2°C
Specifications
Ramp functions Source functions Voltage, current, resistance, frequency, temperature
Ramps Slow ramp, Fast ramp, 25% step-ramp
Loop power function Voltage 24 V
Accuracy 10%
Maximum current 22 mA, short circuit protected
Step functions Source functions Voltage, current, resistance, frequency, temperature
Steps 25% of range, 100% of range
Environmental Specifications
Operating temperature -10°C to 55°C
Storage temperature -20°C to 71°C
Humidity (without condensation) 90% 10°C to 30°C
75% 30°C to 40°C
45% 40°C to 50°C
35% 50°C to 55°C
Safety Specifications
Safety rating CSA C22.2 No. 1010.1:1992
EMC EN50082-1:1992 and EN55022:1994 Class B
Mechanical and General Specifications
Size 96 x 200 x 47 mm
Weight 650 g
Batteries Four AA alkaline batteries
Warranty Three years
Battery life 25 hours typical
Shock and vibration Random, 2 G, 5-500 Hz

Includes: Fluke 724Fluke 724 Temperature Calibrator

  • AC70A Test Clips
  • One pair of stackable test leads
  • TL75 Test Leads
  • CE and CSA Markings
  • Manuals in English, French, German, Spanish, Italian, Portugese, Korean, Chinese and Japanese
  • Users manuals on CD-ROM
  • NIST- traceable calibration report and data

Accessories: Fluke 724 Temperature Calibrator

Cases (1)

  • Fluke C100 Universal Carrying Case

Clips (1)

  • Fluke AC220 SureGrip™ Alligator Clips

Lights (2)

  • Fluke LVD1A Non-Contact Voltage Tester with LED Flashlight
  • Fluke L206 Deluxe LED Hat Light

Temperature calibrators (1)

  • Fluke 700TC2 Thermocouple Plug Kit 700TC2

Test leads (1)

  • Fluke TL220 SureGrip™ Industrial Test Lead Set

Test probes (2)

  • Fluke TP38 Slim Reach Test Probe Set
  • Fluke TP1 Slim Reach Test Probes
