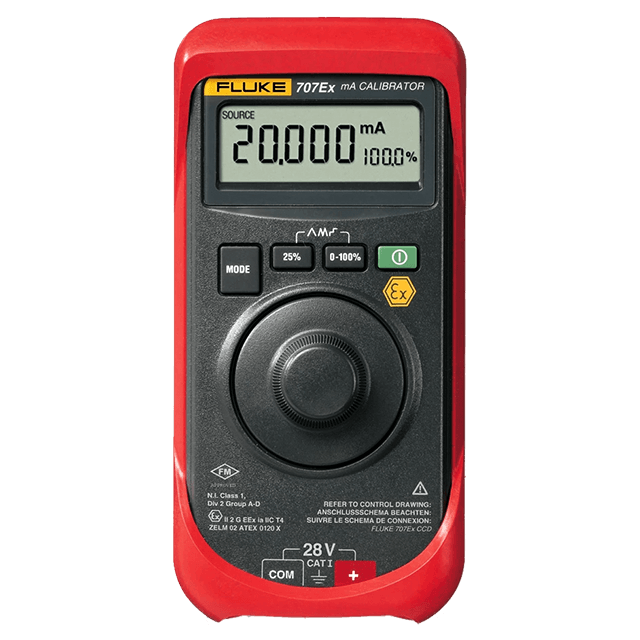

Model: Fluke 707Ex Intrinsically Safe mA Loop Calibrator
Fluke 707Ex Intrinsically Safe mA Loop Calibrator high performance intrinsically safe loop calibrator for use in potentially explosive environments.
Fluke 707Ex delivers superior mA accuracy of 0.015%. Not only the accuracy of Fluke 707Ex but also the value of this Calibrator always spot on.
Iconic Engineering the biggest & trusted agent to provide reliable Tools in Bangladesh. Tools BD not only provide the best product but also They support all the supplier & customers in any situation. Fluke 707Ex is not only provided a good performance you will know about it when using it to your workplace. You many orders now from Tools Bangladesh.
Key Features: Fluke 707Ex Intrinsically Safe mA Loop Calibrator
- High performance intrinsically safe loop calibrator for use in potentially explosive environments
- Is certified in accordance with ATEX directive (Ex II 2 G Ex ia IIC T4) in Zones 1 and 2 and to operate in accordance with Factory Mutual N.I. Class 1, Division 2 areas Group A-D
- Features large display and simple, quick-click interface for easy one-handed operation
Specifications: Fluke 707Ex Intrinsically Safe mA Loop Calibrator
| Specifications | ||
| Current measurement | Range | 0 to 24 mA |
| Resolution | 0.001 mA | |
| Accuracy | 0.015% Rdg + 2 LSD | |
| Current sourcing | Range | 0 to 20 mA or 4 to 20 mA |
| Accuracy | 0.015% Rdg + 2 LSD | |
| Drive capability | 700 Ω at 20 mA | |
| Current simulation | Range | 0 to 20 mA or 4 to 20 mA |
| Accuracy | 0.015% Rdg + 2 LSD | |
| Loop power | While measuring mA, 24 V | |
| Voltage measurement | Range | 0 to 28 V DC |
| Resolution | 1 mV | |
| Accuracy | 0.015% Rdg + 2 LSD | |
| Environmental Specifications | ||
| Operating temperature | -10ºC to 55ºC | |
| Storage temperature | -40ºC to 60ºC | |
| Humidity (without condensation) | 0 to 95% (0ºC to 30ºC); | |
|
0 to 75% (30ºC to 40ºC) |
||
|
0 to 45% (40ºC to 50ºC) |
||
| Temperature coefficient | -10ºC to 18ºC, 28ºC to 55ºC, ±.005% of range per ºC | |
| Safety Specifications | ||
| Safety | CSA C22.2 No. 1010.1:1992 | |
| EMC | EN50082-1:1992 and EN55022:1994 Class B | |
| Maximum voltage | 30 V | |
| ATEX certification | Ex II G Ex ia IIC T4 Zones 1 and 2, ZELM 02 ATEX 0120 X | |
| CE certification | EN61010-1 and EN61326 | |
| Mechanical and General Specifications | ||
| Size | 152 x 70 x 41 mm | |
| Weight | 224 g (350 g including holster) | |
| Batteries | One 9V battery Alkaline | |
| Warranty | 3 year | |
| Shock & vibration | per MIL-T-28800 for a Class 2 Instrument | |
| Display current and % of span | Yes | |
| Auto step, auto ramp | Yes | |
| Span check | Yes | |
Includes: Fluke 707Ex Intrinsically Safe mA Loop Calibrator
- Alligator test clips
- Instruction manual (on CD-ROM)
- Protective holster with Flex-Stand™
- Safety designed test leads
- NIST- traceable calibration report and data
Accessories: Fluke 707Ex Intrinsically Safe mA Loop Calibrator
Cases (6)
- Fluke C100 Universal Carrying Case
- Fluke C195 Case
- Fluke C25 Large Soft Case for DMMs
- Fluke C550 Tool Bag
- Fluke C800 Meter and Accessory Case
- Fluke CAMO-C25 Camouflage Carrying Case
Clips (6)
- Fluke AC220 SureGrip™ Alligator Clips
- Fluke AC280 SureGrip™ Hook Clips
- Fluke AC283 SureGrip™ Pincer Clips
- Fluke AC285 SureGrip™ Alligator Clips
- Fluke AC87 Heavy Duty Bus Bar Clip Set
- Fluke AC89 Heavy Duty Insulation Piercing Test Clip
Connectors (1)
- Fluke BP980 Double Banana Plug Kit
Automotive (2)
- Fluke PV350 Pressure Vacuum Module
- Fluke TP88 Rigid Back Probe Pins
Visual IR thermometers (1)
- Fluke 80TK Thermocouple Module
Test leads (17)
- Fluke H900 Test Lead Holder
- Fluke TL220 SureGrip™ Industrial Test Lead Set
- Fluke TL221 SureGrip™ Test Lead Extension Set
- Fluke TL222 SureGrip™ Silicone Insulated Test Leads
- Fluke TL223 SureGrip™ Electrical Test Lead Set
- Fluke TL224 SureGrip™ Insulated Test Leads
- Fluke TL238 SureGrip™ Test Lead Set for High Energy Environments
- Fluke TL27 Heavy Duty Test Lead Set
- Fluke TL40 Retractable Tip Test Lead Set
- Fluke TL71 Premium Test Lead Set
- Fluke TL75 Hard Point™ Test Lead Set
- Fluke TL76 2mm/4mm Test Lead Set
- Fluke TL81A Deluxe Electronic Test Lead Kit
- Fluke TL940 Mini-Hook Test Leads
- Fluke TL950 Mini-Pincer Test Leads
- Fluke TL960 Micro-Hook Test Leads
- Fluke TL970 Hook and Pincer Set
Cables (3)
- Fluke TL930 Patch Cords (60 cm)
- Fluke TL932 Patch Cords (90 cm)
- Fluke TL935 Patch Cords (60, 90, 120 cm)
Test probes (7)
- Fluke TL910 Electronic Test Probes
- Fluke TP38 Slim Reach Test Probe Set
- Fluke TP1 Slim Reach Test Probes
- Fluke TP2 Slim Reach Test Probes
- Fluke TP220 SureGrip™ Industrial Test Probes
- Fluke TP4 Slim Reach Test Probes
- Fluke TP80 Electronic Test Probes
Other (1)
- Fluke TP912 Replacement Tips for TL910
Adapters (1)
- Fluke TP920 Test Probe Adapter Set
