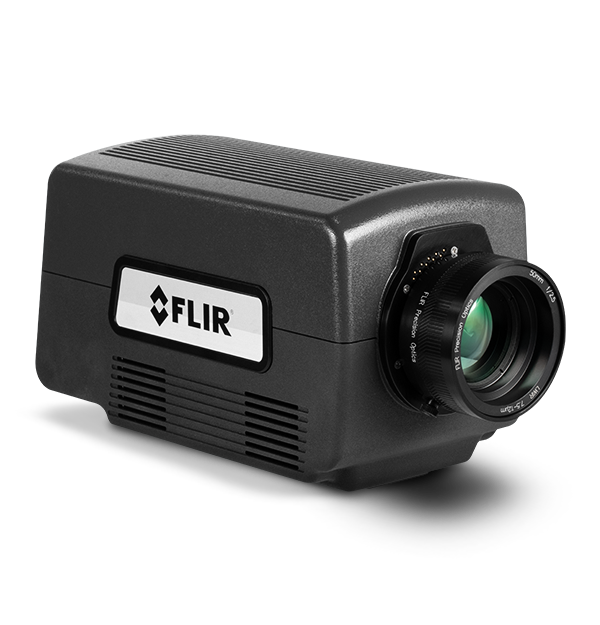

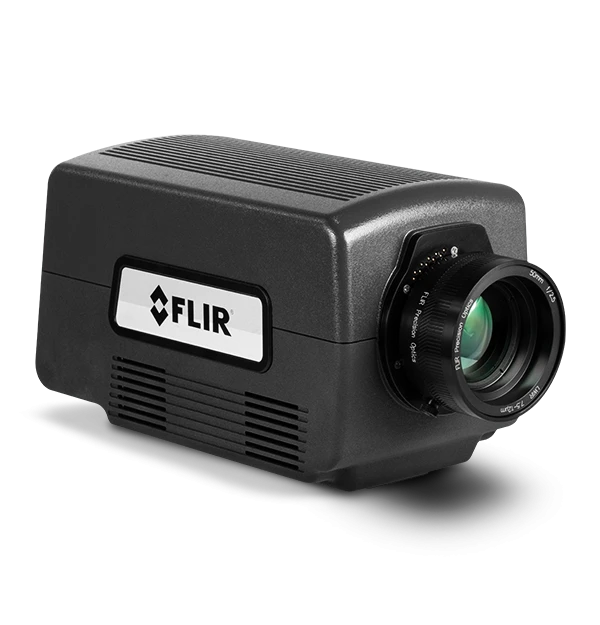

FLIR A8580 SLS Compact LWIR HD Thermal Camera

Key Features: FLIR A8580 SLS Compact LWIR HD Thermal Camera

• Advanced features for optimal flexibility

  Offers remote triggering, synchronization capabilities, and compatibility with a wide range of manual and remote focus lenses, including microscope lenses

• Superior resolution and measurement accuracy

  HD resolution, ±2°C accuracy, and a built-in filter wheel for quickly switching to high temperature ranges help ensure you collect accurate, meaningful temperature data

• Simplified analysis and sharing

  FLIR Research Studio’s simple Connect–View–Record–Analyze workflow helps you collect and analyze data quickly and collaborate with your team easily

Specifications: FLIR A8580 SLS Compact LWIR HD Thermal Camera

Resolution

1280 × 1024

Detector Pitch

12 µm

Spectral Range

7.5 µm (lower), 11.5–12.5 µm (upper)

Detector Type

Strained Layer Superlattice (SLS)

Camera f-number

f/2.5

Dynamic Range

14-bit

NETD

≤45 mK (≤40 mK typical)

Frame Rate [Full Window]

Programmable; 0.0015 Hz to ~45 Hz (GigE), 60 Hz (CXP)

Standard Temperature Range [with band matched optics]

-20°C to 350°C (-4°F to 662°F)

Optional Temperature Range

250°C to 2000°C (ND1), 500°C to 3000°C (ND2)

Filtering

Internal 4-position motorized filter wheel; factory installed filters

Focus

Motorized (compatible w/manual lenses)

Imaging & Optical

AGC

Manual, linear, plateau equalization, DDE

Ambient Drift Compensation

Yes, with factory calibration

Available Lenses

Manual or Motorized (7.5–12.5 µm): 17 mm, 25 mm, 50 mm, 100 mm, 200 mm

Camera f-number

f/2.5

Close-up Lenses/Microscopes

1x (12 µm/pixel)

Detector Pitch

12 µm

Detector Type

Strained Layer Superlattice (SLS)

Digital Data Protocol

Gigabit Ethernet (GigE Vision 2.0), CoaXPress

Dynamic Range

14-bit

Filtering

Internal 4-position motorized filter wheel; factory installed filters

Focus

Motorized (compatible w/manual lenses)

Frame Rate [Full Window]

Programmable; 0.0015 Hz to ~45 Hz (GigE), 60 Hz (CXP)

HD Video

SDI

Image Time Stamp

Yes

Lens Interface

FLIR FPO-M (4-tab bayonet, motorized)

Minimum Integration Time

480 ns to ~full frame

NETD

≤45 mK (≤40 mK typical)

Operability

≥98% (≥99% typical)

Palette

Selectable 8-bit

Pixel Clock

100 MHz

Readout

Snapshot

Readout Modes

Asynchronous integrate while read Asynchronous integrate then read

Resolution

1280 × 1024

Spectral Range

7.5 µm (lower), 11.5–12.5 µm (upper)

Subwindow Modes

Flexible windowing down to 32 × 4 (steps of 32 columns, 4 rows)

Video Modes

SDI: 720p@50/59.9, 1080p@25/29.9

Zoom

Automatic, variable

Measurement & Analysis

Accuracy

±2°C (±1°C typical) below 100°C, ±2% of reading (±1% typical) above 100°C

Optional Temperature Range

250°C to 2000°C (ND1), 500°C to 3000°C (ND2)

Standard Temperature Range [with band matched optics]

-20°C to 350°C (-4°F to 662°F)

Communication & Data Storage

Command and Control

GenICam (GigE, CXP), RS-232

Synchronization Modes

Sync In, Sync Out

General

Size [L x W x H ] w/o Lens

226 × 117 × 135 mm (8.9 × 4.6 × 5.3 in)

Weight [without lens]

3.4 kg (8.5 lbs)

Power

Power

24 VDC (<50 W steady state)

Environmental & Certifications

Mounting

2x ¼"–20 tapped holes, 1x ⅜"–16 tapped hole, 4x 10-24 tapped holes
