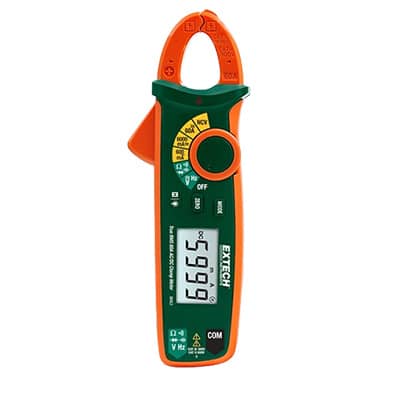

Extech MA63 60A True RMS AC/DC Clamp Meter + NCV:
The MA63 is an AC/DC current clamp with NCV voltage detector and full overload protection. Manual ranging clamp meter with three Current ranges and AC/DC voltage to 600V. The 6000mA range allows for low current measurements that may be used in the automotive industry. Unique VFC (variable frequency control) mode helps troubleshoot and diagnose HVAC applications that are variable frequency driven. The MA63 also features resistance, capacitance, frequency, diode and continuity measurements as well as data hold low battery indicator, and auto power-off functions. Complete with test leads, carrying case, and two AAA batteries.
Are you looking for the best Clamp Meters? Indeed, you are in the right position at this moment. Given that Tools Bangladesh offers testing supplies and testing equipment, As a result, you may affordably get your preferred tool from us in Bangladesh with the best delivery service.
Specifications
General Specifications
AC Current 600mA, 6000mA, 60A
AC Current Basic Accuracy ±2.0%
AC Current Max Resolution 0.1mA
AC Voltage 6V, 60V, 600V
AC Voltage Basic Accuracy ±0.8%
AC Voltage Max Resolution 1mV
Capacitance 6.2nF, 620µF, 62mF
Capacitance Max Resolution 1pF
Continuity Yes
DC Current 6000mA, 60A
DC Current Basic Accuracy ±2.0%
DC Current Max Resolution 1mA
DC Voltage 600mV, 6V, 60V, 600V
DC Voltage Basic Accuracy ±0.7%
DC Voltage Max Resolution 0.1mV
Diode Test Yes
Frequency 10Hz to 60kHz
Frequency Max Resolution 0.001Hz
Jaw Size 0.7" (17mm)
Non-Contact Voltage (NCV) Detector Yes
Resistance 600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 60MΩ
Resistance Max Resolution 0.1Ω
True RMS Yes
Additional Details
Certifications CE, ETL
Dimensions 6.9 × 2.4 × 1.3" (175 × 60 × 33.5mm)
Display 6000-count segment LCD with backlighting
Power 2 × AAA (1.5V) batteries
Safety Category
CETII - 600V, CATIII - 300V
Warranty 2 years
Weight 6oz (170g)
