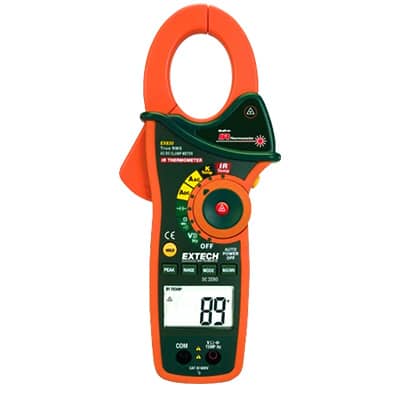

Extech EX830 1000A True RMS AC/DC Clamp Meter with IR Thermometer:
The EX830 clamp meter features a unique, built-in, non-contact Infrared thermometer with a laser pointer to monitor temperature and locate hot spots on motors and electrical devices. A large 4000-count LCD with bright back lighting allows you to see the reading in dim light. The ergonomically designed double-molded housing offers a better grip for one-hand operation. The 1.7" (43 mm) diameter jaw opening is large enough for conductors up to 750MCM. In addition to AC/DC, it measures AC/DC voltage, resistance, temperature, capacitance, and frequency. It features a diode test, audible continuity beeper, min/max, data hold, auto power off, and a fast peak hold that captures inrush currents and transients. Comes complete with test leads, a 9V battery, a type K bead wire temperature probe (-4 to 482°F/-20 to 250°C) and a belt holster.
Are you looking for the best Clamp Meters? Indeed, you are in the right position at this moment. Given that Tools Bangladesh offers testing supplies and testing equipment, As a result, you may affordably get your preferred tool from us in Bangladesh with the best delivery service.
Specifications
General Specifications
AC Current 0.1 to 1000A
AC Current Basic Accuracy ±2.5%
AC Voltage 0.1mV to 600V
AC Voltage Basic Accuracy ±1.5%
Capacitance 0.001nF to 40,000µF
Continuity Yes
DC Current 0.1 to 1000A
DC Current Basic Accuracy ±2.5%
DC Voltage 0.1mV to 600V
DC Voltage Basic Accuracy ±1.5%
Diode Test Yes
Frequency 0.001kHz to 4kHz
Frequency Basic Accuracy ±1.5%
Inrush Current Yes
Jaw Size 1.7" (43mm), conductors up to 750MCM or two 500MCM
Resistance 0.1 to 40MΩ
Temperature (IR) Basic Accuracy -58 to 518°F (-50 to 270°C)
Temperature (IR) Max Resolution ±2.0% of reading or ±4°F/±2°C
Temperature (Type K) Max Resolution -4 to 1400°F (-20 to 760°C)
Temperature (Type N) ±(3% of reading + 9°F/5°C)
True RMS Yes
Additional Details
Certifications CE, UL
Dimensions 10.6 × 4.3 × 2" (270 × 110 × 50mm)
Power 1 × 9V battery
Safety Category CATIII - 600V
Warranty 2 years
Weight 13.6oz (386g)
