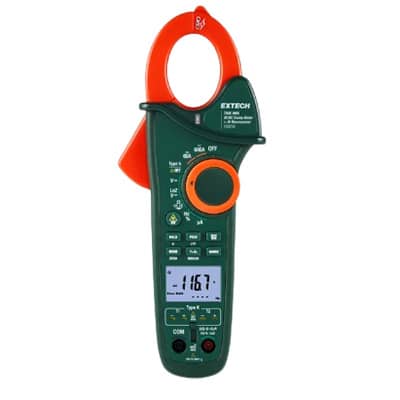

Extech EX623A 600 A Dual Input Clamp Meter with IR Thermometer and NCV:
The EX623A True RMS AC/DC clamp meter combines dual thermocouple inputs for T1, T2, and T1-T2 differential temperature measurement. It comes with a built-in infrared thermometer a laser pointer for pinpointing hot spots and a Non-Contact Voltage (NCV) detector, so you can safely check for live electrical current. It features a DC micro-amp function that is ideal for flame rod measurements in HVAC systems, and its capacitance measurement capability extends up to 40 mF. The EX623A comes complete with test leads, a 9 V battery, a Type K thermocouple, a bead wire temperature probe, and a carrying case.
Are you looking for the best Clamp Meters? Indeed, you are in the right position at this moment. Given that Tools Bangladesh offers testing supplies and testing equipment, As a result, you may affordably get your preferred tool from us in Bangladesh with the best delivery service.
Specifications
General Specifications
AC Current 0.01 A to 600 A
AC Current Basic Accuracy ±(1.5% + 5d)
AC Voltage 0.1 mV to 600 V
Capacitance 0.001 nF to 40 mF
DC Current 0.01 A to 600 A
DC Microcurrent 0.1 µA to 600 µA
DC Voltage 0.1 mV to 600 V
Duty Cycle 0.5% to 99.0%
Frequency 0.001 Hz to 100 kHz / Frequency (Clamp) 0.1 Hz to 400 Hz
Jaw Size 32 mm (1.25 in)
Non-Contact Voltage (NCV) Detector Yes
Resistance 0.1 Ω to 60 M Ω
Temperature (IR) Max Resolution -50°C to 270°C (-58°F to 518°F)
Temperature (Type K) Max Resolution -50°C to 1000°C (-58°F to 1832°F)
Additional Details
Dimensions 241 mm × 96 mm × 45 mm (9.4 in × 3.7 in × 1.74 in)
Display 6000 counts
Safety Category CAT III-600 V
Warranty 2 years
Weight 315 g (11.11 oz)
