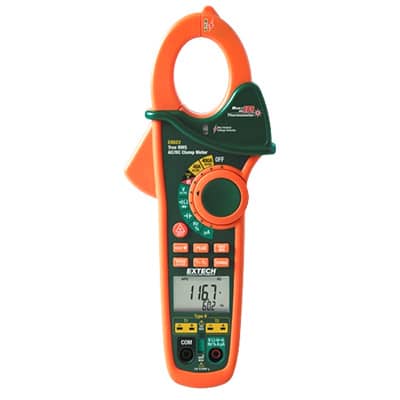

Extech EX623 400A Dual Input AC/DC Clamp Meter + NCV + IR Thermometer:
This TRMS AC/DC Clamp Meter has dual thermocouple inputs for T1, T2, and T1-T2 Differential Temperature measurement plus a built-in Infrared Thermometer with a laser pointer for locating hot spots and NCV Detector. Additional features include a DC micro-amp function for flame rod measurements, a Diode open circuit voltage of 2.8 Volt, a Data Hold plus a fast Peak Hold for capturing current surges at motor start-up, and capacitance measurement to 40mF. Comes complete with test leads, a 9 Volt battery, two Type K bead wire Temperature probes and a carrying case.
Are you looking for the best Clamp Meters? Indeed, you are in the right position at this moment. Given that Tools Bangladesh offers testing supplies and testing equipment, As a result, you may affordably get your preferred tool from us in Bangladesh with the best delivery service.
Specifications:
General Specifications:
AC Current 400.0A
AC Current Basic Accuracy ±1.5%
AC Current Max Resolution 10mA
AC Voltage 600V
AC Voltage Max Resolution 0.1mV
Capacitance 40mF
Capacitance Max Resolution 0.01nF
Continuity Yes
DC Current 400.0A
DC Current Basic Accuracy ±1.5%
DC Current Max Resolution 10mA
DC Microcurrent 4000µA
DC Microcurrent Max Resolution 0.01µA
DC Voltage 600V
DC Voltage Max Resolution 0.1mV
Diode Test Yes
Duty Cycle 0.5 to 99.0%
Frequency 40MHz
Frequency Max Resolution 0.001Hz
Jaw Size 1.25" (32mm), conductors up to 500MCM
Resistance 40.000MΩ
Resistance Max Resolution 0.01Ω
Temperature (IR) Basic Accuracy -58 to 518°F (-50 to 270°C)
Temperature (Type K) Max Resolution -58 to 1832°F (-50 to 1000°C)
True RMS Yes
Additional Details
Certifications CE, ETL
Dimensions 9 × 3.1 × 1.9" (229 × 80 × 49mm)
Power 1 × 9V battery
Safety Category CATIII - 600V
Warranty 2 years
Weight
10.7oz (303g)
