Description
Diagnose potential failure with the MO-100, portable battery powered milliohm meter. Quickly check windings opens or shorts in motors, generators and transformers, wire-to-wire connection resistances, heating elements testing and contact resistance in critical electrical connections.

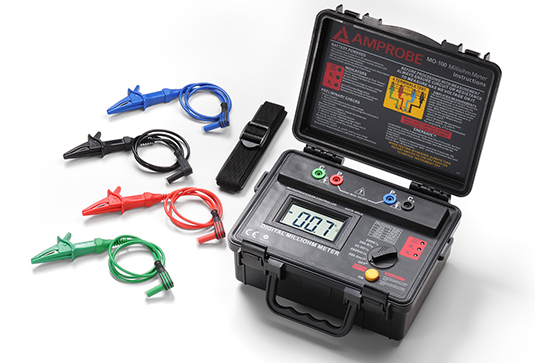

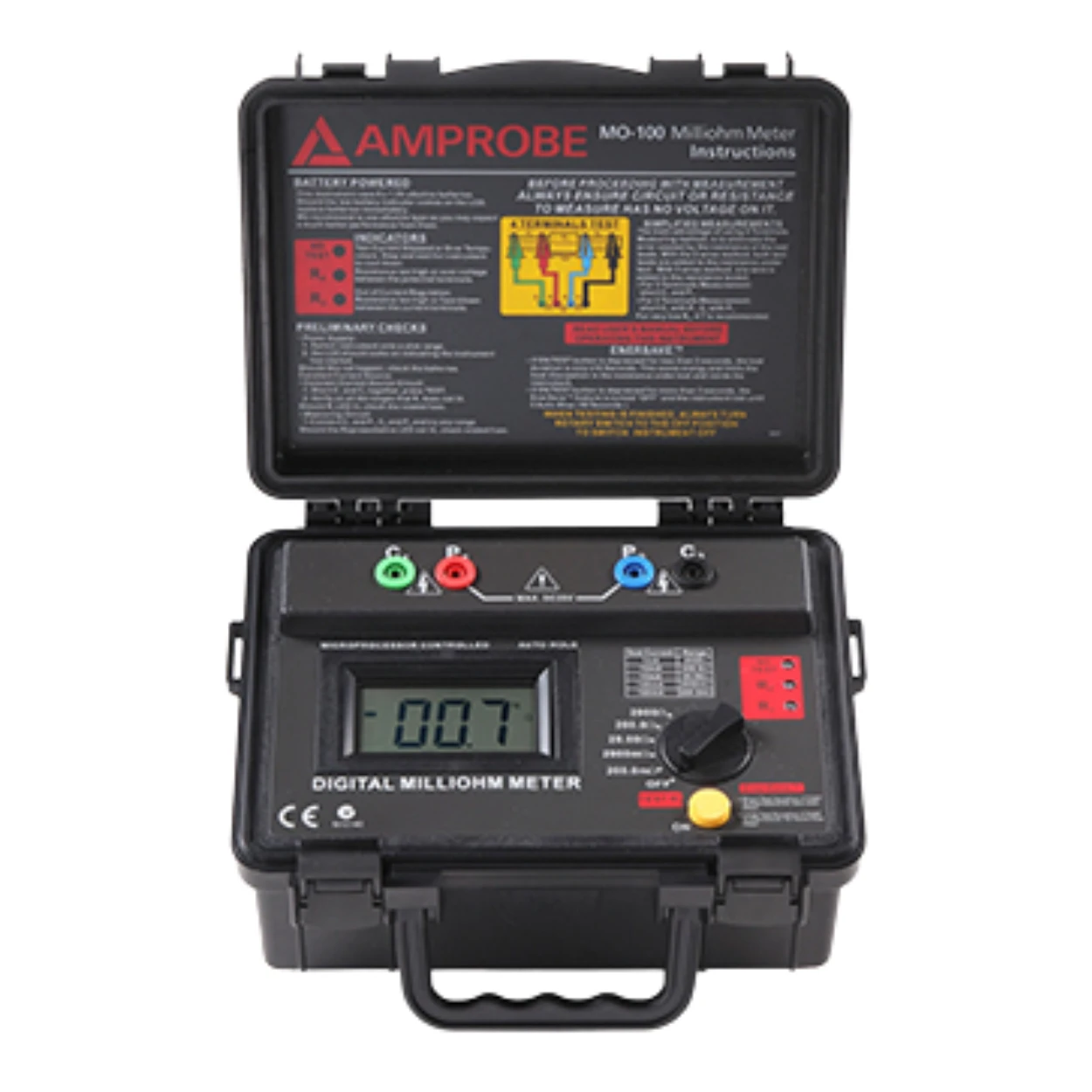

The Amprobe MO-100 Milliohm Meter is a high-precision instrument designed to measure low resistance with unmatched accuracy and reliability. Perfect for electrical engineers, technicians, and maintenance professionals, this milliohm meter delivers fast, consistent readings that make diagnosing electrical systems, testing connections, and verifying circuit integrity effortless. Its robust design ensures durability in industrial environments, while the intuitive interface allows for easy operation even for first-time users.
With the Amprobe MO-100, you can confidently measure contact resistance, cable resistance, and other critical low-resistance applications. Its high-resolution readings, compact design, and reliable performance make it an essential tool for workshops, electrical testing labs, and fieldwork.
At Tools Bangladesh, we provide the Amprobe MO-100 Milliohm Meter Price in Bangladesh at competitive rates, ensuring top-quality testing solutions are accessible to every professional. Whether you’re upgrading your electrical toolkit or purchasing your first milliohm meter, Tools Bangladesh guarantees genuine products, fast delivery, and exceptional after-sales support.
Invest in the Amprobe MO-100 Milliohm Meter for precise measurements, reliable performance, and long-lasting durability. Don’t compromise on the accuracy of your electrical testing — get the trusted Amprobe MO-100 today from Tools Bangladesh, your go-to source for high-quality electrical instruments.
Key Features
- Accurate four terminal measurement down to 100µ ohms does not require test leads resistance compensation
- Ranges from 200.0m ohms to 2000 ohms with minimum resolution of 100µ Ohm
- Measurement precision with three test currents with over-temperature protection
- Protection against inadvertent connection to overvoltage
- Large LCD
- Potential lead resistance, current lead resistance checks
- Auto-hold and auto-off features
- Lightweight, robust compact.
- Indicates measurement errors due to temperature or connection problems
- O-Ring sealed enclosure
- Battery powered
- IEC / EN 61010-1
Specifications
| FEATURE |
MO-100 |
| Measuring range |
0 → 200.0 mO in steps of 100 µO
0 → 2000 mO in steps of 1 mO
0 → 20.00 O in steps of 10 mO
0 → 200.0 O in steps of 100 mO
0 → 2000 O in steps of 1 O |
| Test current |
1 mA (2000 O range)
10 mA (20 O / 200 O range)
100 mA (200 mO / 2000 mO range) |
| Specifications |
| Measuring ranges |
0-200.0m ohms in steps of 100µohm
0-2000m ohms in steps of 1m ohm
0-20.00 ohms in steps of 10m ohm
0-200.0 ohms in steps of 100m ohm
0-2000 ohms in steps of 1 ohm |
| Accuracy |
±0.5% of reading ±2 digits over the operating temperature range, -15 °C to 55 °C (5 °F to 131 °F), with the supplied test leads |
| Test current |
1mA =>2000 ohms range
10mA =>200/ 20 ohms range
100mA =>2000m / 200m ohm range |
| Test current accuracy |
±0.1% |
| Protection fuses |
Mains = 0.5A, HBC, 5 x 20mm, DIN
Current = 0.5A, HBC, 5 x 20mm, DIN
Voltage = 0.5A, HBC, 5 x 20mm, DIN
Maximum output
Voltage (C1-C2) 20V |
What’s Included
- MO-100
- Test leads
- Shoulder belt
- 8 x 1.5 V (AA) batteries
What’s Included
- MO-100
- Test leads
- Shoulder belt
- 8 x 1.5 V (AA) batteries
