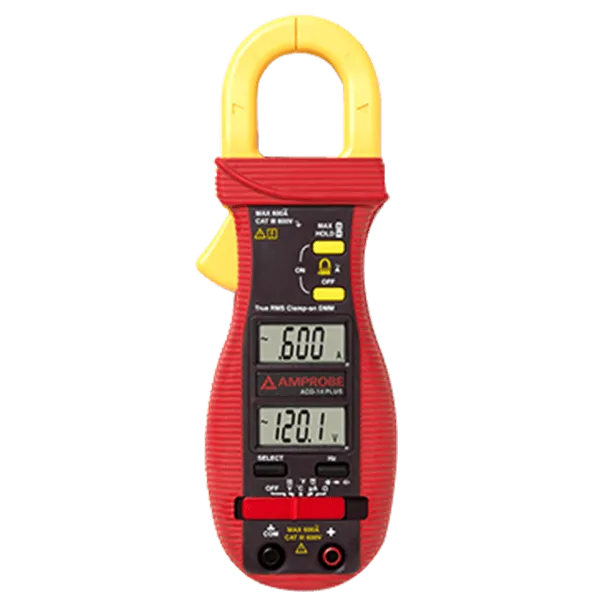

Amprobe ACD-14 PLUS Dual Display Clamp Multimeter is depended only on rugged reliability and accurate result. So you can take it out from here to get accurate results from your test point.
The Amprobe ACD-14 PLUS clamp meter works as both an HVAC multimeter and an electrical multimeter taking into account a versatile set of features, including microamps, capacitance, frequency and temperature when included thermocouple.
The dual displays are lithe amps and volts simultaneously, useful for measuring voltage slip out cold load. The thinner jaws of this digital clamp multimeter enable entry to tight measurement areas and yet handles conductors uphill to 1 (25 mm).
Iconic Engineering is one of the best eCommerce websites in Bangladesh that are trusted and reliable. Free shipping anywhere in Bangladesh.
Key Features: Amprobe ACD-14 PLUS Dual Display Clamp Multimeter with Temperature
- Dual displays permit simultaneous reading of amps and volts
- Measures AC Current to 600A and AC/DC Voltage to 600V
- Measures frequency, capacitance to 3000 µF, and resistance to 40MΩ
- Measures temperature with K-type thermocouple probe
- Includes micro amps measurement for testing flame sensors
- Diode test quickly finds voltage drops
- Continuity beeper detects opens and shorts
- Auto ranging instantly selects correct range
- Hold and maximum reading functions
- New thin jaws, 5mm thinner than standard digital clamp meters make it easier to access conductors in tight spaces
- Accommodates conductors up to 25 mm (1.0″) in diameter
- Auto power off and low battery indication helps you make the most of battery life
- Rubber, over-molded case absorbs shock
- Includes test leads, battery (installed), K-type thermocouple with banana plug, soft carrying pouch, and user manual
Specifications: Amprobe ACD-14 PLUS Dual Display Clamp Multimeter with Temperature
| FEATURE |
ACD-14 PLUS |
ACD-14 TRMS-PLUS |
| True-rms |
– |
• |
| AC Voltage |
4.000 V, 40.00 V, 400.0 V, 600 V |
| DC Voltage |
400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V |
| AC Current |
40.00 A, 400.0 A, 600 A |
| Resistance |
400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO, 40.00 MO |
| Capacitance |
500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF, 3000 µF |
| Frequency |
40 Hz → 400 Hz with Jaw, 10 Hz → 100 kHz with test leads |
| Temperature |
-4 °F → 999 °F (-20 °C → 537 °C) |
| Dual displays |
• |
• |
| Micro Amps |
• |
• |
| Accommodates conductors |
up to 1.0″ (25 mm) in diameter |
| Specifications |
| Display: |
3-3/4 digits 4000 counts, dual LCD displays |
| Update rate: |
3 per second nominal |
| Polarity: |
Automatic |
| Operating temperature: |
0°C to 40°C (32°F to 104°F) |
| Power supply: |
Two 3V alkaline button batteries (ANSI/NEDA-5004LC, IEC-CR2032 |
For complete specs please download the product datasheet under the “Resources” tab.
Includes: Amprobe ACD-14 PLUS Dual Display Clamp Multimeter with Temperature
- Dual Displays – Permits simultaneous reading of Amperage & Voltage
- AC Current to 600A
- New thin jaws, 5mm thinner than others to access tight measurement spaces
- Micro Amps measurement for testing Flame Sensors
Accessories: Amprobe ACD-14 PLUS Dual Display Clamp Multimeter with Temperature
- Test leads,
- Battery (installed),
- Soft carrying pouch,
- Users manual,
- Type-K thermocouple with banana plug
