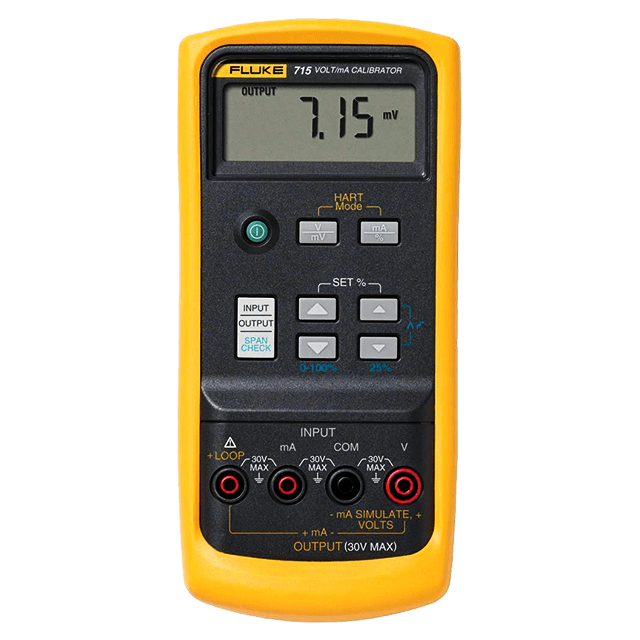

Fluke 715 Volt/mA Loop Calibrator
Supplier: Iconic Engineering Limited
Brand: Fluke
Category: Calibration
Sub Category: MA Loop Calibrators
Out of Stock Ask for PriceModel: Fluke 715 Volt mA Loop Calibrator
Fluke 715 is an amazing, rugged and reliable Calibrator. When you are looking for a compact, lightweight mA calibrator for measuring loop current (0-20 mA, 4-20 mA) signals this is the right and reliable tool for you.
The most important things about Fluke 715 Volt mA Loop Calibrator not only provide the accurate result but also the value of this result always top of the line.
Iconic Engineering offers the lowest price Fluke 715 Volt/mA Loop Calibrator in Bangladesh. Not only we provide the right tools for the right customers but also we provide support all the time for our all kind of customers. Shop now through Tools Bangladesh.
Features
Key Features: Fluke 715 Volt/mA Loop Calibrator
- Compact, lightweight mA calibrator for measuring loop current (0-20 mA, 4-20 mA) signals
- Delivers very high accuracy—0.01%—and 1 mA resolution
- Measures voltage output process signals from PLCs and transmitters
- Sources voltage to 100 mV or 10V
- Sources or simulates 24 mA loop current
- Provides typical 18 hour battery life
Specifications
Specifications: Fluke 715 Volt/mA Loop Calibrator
Functional Specifications | ||
Measure / Source mV | Range | 0 to 200 mV |
Resolution | 0.01 mV | |
Accuracy | 0.015% + 2 counts | |
Measure / Source V | Range | 0 to 20 V |
Resolution | 0.001 V | |
Accuracy | 0.01% + 2 counts | |
Measure / Source/ Simulate mA (% of span) | Range | 0 to 24 mA (-25% to 125%) |
Resolution | 0.001 mA | |
Accuracy | 0.01% + 2 counts | |
Sink (simulate transmitter) display mA or % of span | ||
Specifications | ||
Loop power | Range | 24 V DC |
Accuracy | ±10% | |
Drive; 20 mA into 1000 Ω for battery > 6.8 V; 700 Ω for battery 5.8 to 6.8 V | ||
Display | Clear 5 digit LCD | |
Environmental Specifications | ||
Operating temperature | -10°C to 55°C | |
Storage temperature | -40°C to 60°C | |
Humidity (without condensation) | 95% (10°C to 30°C) | |
75% (30°C to 40°C) | ||
45% (40°C to 50°C) | ||
35% (50°C to 55°C) | ||
Operating altitude | 3,000 m max | |
Safety Specifications | ||
Safety | CSA C22.2 No. 1010.1:1992 | |
Mechanical and General Specifications | ||
Size (L x W x D) | 187 x 87 x 32 mm | |
(7.93 x 3.86 x 2.06 in) | ||
Weight | Approx. 330 g | |
(21 oz) | ||
Warranty | 3 years | |
Shock and vibration | Random, 2 G, 5-500 Hz | |
1 m drop test | ||
Battery type | Single 9 V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline |
Includes
Includes: Fluke 715 Volt/mA Loop Calibrator
- Protective yellow holster with test lead storage
- Instructions sheet (14 languages)
- Single 9V alkaline battery
- Test leads and alligator clips
- NIST- traceable calibration report and data
Accessories
Accessories: Fluke 715 Volt/mA Loop Calibrator
Cases (1)
- Fluke C100 Universal Carrying Case
Clips (1)
- Fluke AC220 SureGrip™ Alligator Clips
Current clamps (1)
- Fluke i1010 AC/DC Current Clamp
Fiber optics (1)
- Fluke FOM Fiber Optic Meter
Automotive (1)
- Fluke PV350 Pressure Vacuum Module
Lights (1)
- Fluke L215 SureGrip™ Kit with Probe Light and Probe Extenders
Probes (1)
- Fluke 80T-150UA Universal Temperature Probe
Test leads (1)
- Fluke H900 Test Lead Holder
Test probes (1)
- Fluke TL910 Electronic Test Probes
