Data Acquisition

Data Acquisition is a process of collecting information that collects data in digital format from the real world through various sensors, devices, or equipment. This process is widely used in science, engineering, medicine, and industry. Various types of information, such as temperature, pressure, voltage, signal, sound, image, etc., can be collected through data acquisition. In modern technology, data is collected, processed, and stored in real-time using microcontrollers or data acquisition systems.

This data plays an important role in further analysis, control systems, or research. The main components of the data acquisition system are sensors, signal conditioners, data converters, and microprocessors. Better quality decision-making and effective system design are possible through accurate and precise data collection. Therefore, data acquisition is considered an essential step in any technical or scientific work.

Data Acquisition (DAQ) is the process of collecting real-world physical signals such as voltage, current, temperature, pressure, vibration, or RF power and converting them into digital data for monitoring, analysis, and control. DAQ systems are essential in engineering, manufacturing, research, energy, telecommunications, and automation.

What Is Data Acquisition?

At its core, data acquisition involves three main steps:

1. Sensing – Physical parameters are measured using sensors or transducers.

2. Signal Conditioning – The signal is filtered, amplified, isolated, or converted.

3. Digital Conversion & Processing – An Analog-to-Digital Converter (ADC) converts the signal into digital data for software analysis.

The collected data can then be:

• Displayed in real time
• Logged for future analysis
• Used for automated control decisions
• Sent to cloud or remote monitoring systems

Main Components of a DAQ System

A complete data acquisition system typically includes:

1. Sensors / Transducers

These convert physical phenomena into electrical signals.

Examples:

• Thermocouples (temperature)
• Strain gauges (force)
• Accelerometers (vibration)
• RF power sensors (radio frequency power)
• Voltage & current probes (electrical systems)

2. Signal Conditioning

Before digitization, signals often required:

• Amplification
• Filtering (noise removal)
• Isolation (safety & noise protection)
• Linearization
• Excitation supply (for strain gauges, RTDs)

3. Data Acquisition Hardware

This includes:

• Analog-to-Digital Converters (ADC)
• Multiplexers
• Sampling systems
• Input/output modules

DAQ hardware may be:

• USB-based modules
• PCI/PCIe cards

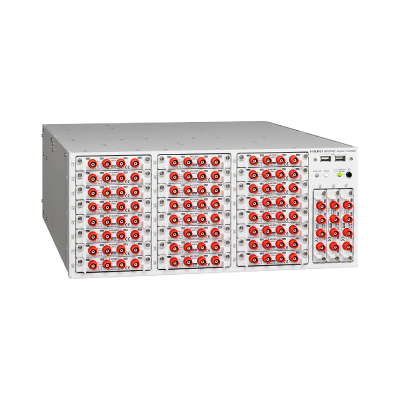

• Standalone data loggers
• Modular chassis systems

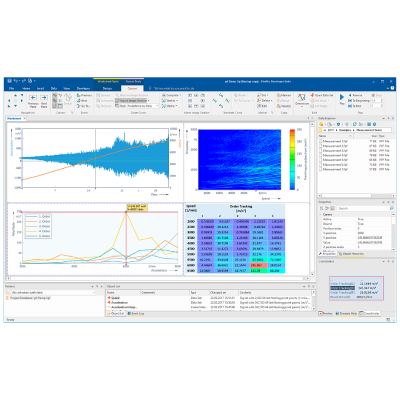

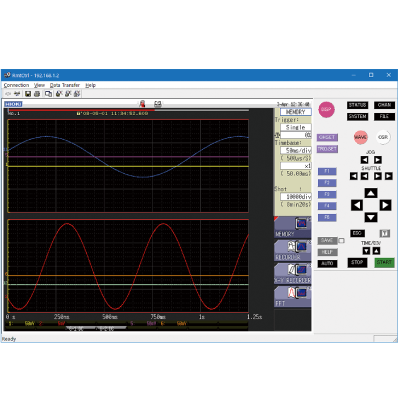

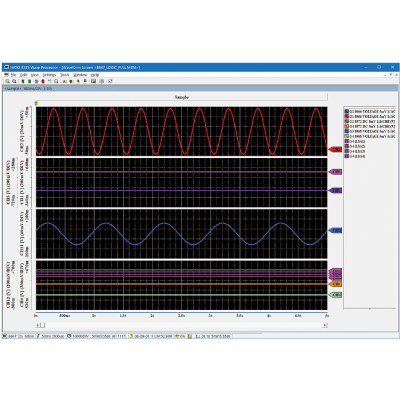

4. DAQ Software

Software enables:

• Real-time monitoring
• Data visualization (graphs, charts)
• Data logging
• Statistical analysis
• Report generation
• Remote/cloud integration

Popular DAQ platforms include systems developed by National Instruments, Keysight Technologies, and Yokogawa Electric Corporation.

Types of Data Acquisition Systems

Key Technical Parameters in DAQ

When selecting a DAQ system, consider:

• Sampling Rate – How many samples per second (Hz, kHz, MHz)
• Resolution – Bit depth (12-bit, 16-bit, 24-bit)
• Accuracy – Measurement precision
• Number of Channels – Inputs supported
• Bandwidth – Frequency range
• Noise Level – Signal clarity
• Interface Type – USB, Ethernet, Wi-Fi

Applications of Data Acquisition

1. Industrial Automation

Monitoring production lines, machine health, and process variables.

2. Electrical & Power Systems

Voltage, current, power factor, and harmonics measurement.

3. RF & Telecommunications

Signal strength, spectrum behavior, and modulation analysis.

4. Automotive Testing

Engine diagnostics, vibration monitoring, performance testing.

5. Environmental Monitoring

Weather stations, air quality sensors, water quality systems.

6. Research & Development

Laboratory experiments and prototype validation.

Benefits of Data Acquisition Systems

• Real-time monitoring
• Improved decision-making
• Predictive maintenance
• Reduced downtime
• Better quality control
• Regulatory compliance support

Future Trends in Data Acquisition

Modern DAQ systems are evolving with:

• Cloud-based monitoring
• IoT integration
• AI-based data analytics
• Edge computing
• Wireless sensor networks
• Higher-speed and higher-resolution ADCs

As industries move toward smart factories and Industry 4.0, DAQ systems are becoming smarter, more connected, and more automated. Data Acquisition is the backbone of modern measurement and monitoring systems. Whether in electrical testing, RF calibration, manufacturing, or environmental analysis, DAQ systems enable accurate data collection and informed decision-making. With advancements in digital technology, cloud computing, and automation, data acquisition continues to play a crucial role in building efficient, intelligent, and reliable systems across industries.
