The MR6000 overcomes all barriers to reach new ground and meet challenges that are yet to be seen. World class specifications, operability and design - Hioki’s newest memory recorder has been re-engineered from top to bottom, delivering unprecedented performance that will change how you look at waveform recording. Discover the HIOKI MEMORY HiCORDER MR6000, a high-speed, high-resolution waveform recorder for advanced electrical testing.
Key Features

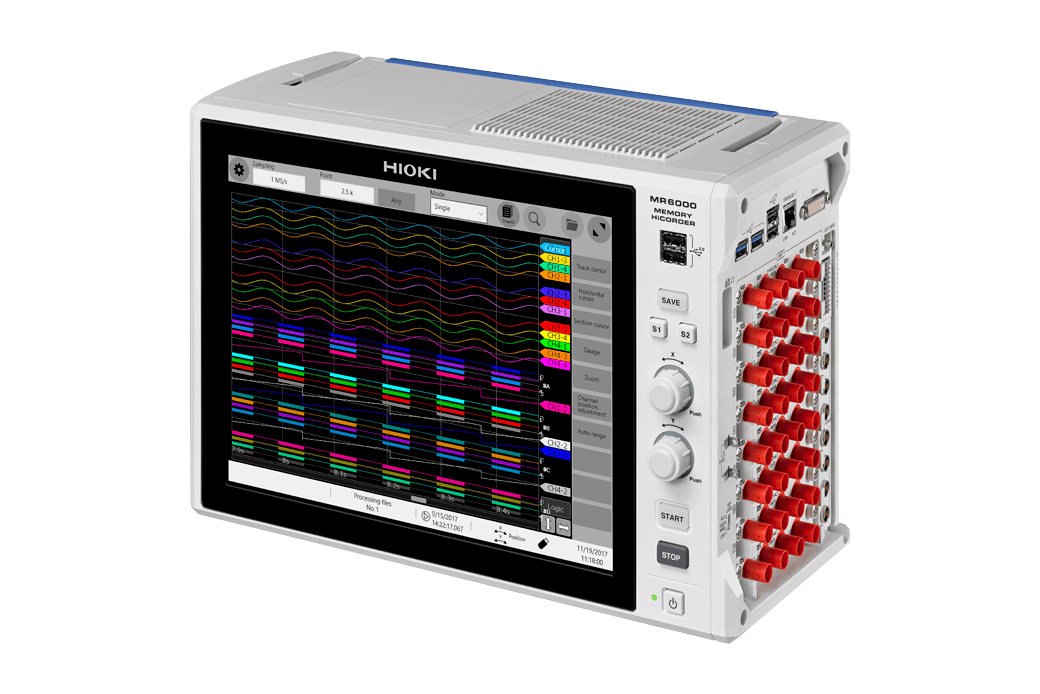

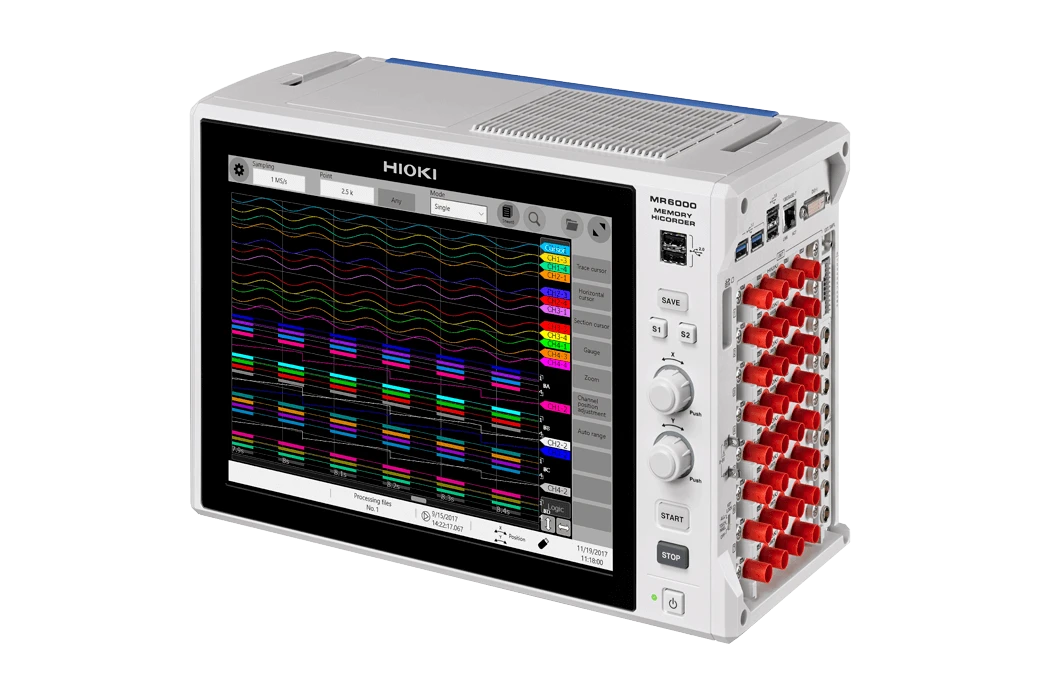

- Work efficiently and intuitively using the MR6000’s large touch panel
- Captures momentary phenomena of each channel simultaneously with isolation measurement of up to 200 MS/s (when using the High Speed Analog Unit U8976)
- Enjoy a stress-free user experience thanks to dramatically faster saving of data
- Save data in real time while measurement continues.
Basic specifications
Accuracy guaranteed: 1 year
| |
MR6000 |
MR6000-01 |
| Additional function |
N/A |
Real-time waveform calculation, Digital Filter calculation. |
| Number of input units |
Max. 8 units |
| Number of channels |
Max. 32 analog channels (when using the U8975), or 128 logic channels (when using the 8973) |
| Measurement ranges (20 div full-scale) |
10 mV to 400 V f.s., 12 ranges (when using the U8976), Resolution : 1/1600 of range
4 V to 200 V f.s., 6 ranges (when using the U8975), Resolution : 1/32000 of range |
| Max. allowable input |
1000 V DC / 700 V AC (when using the U8974), 200 V DC (when using the U8975), 400 V DC (when using the U8976) |
| Frequency characteristics |
DC to 30 MHz (when using the U8976), DC to 2 MHz (when using the U8975) |
| Max. sampling rate |
200 MS/s, all channnels simultaneously (when using the U8976)
External sampling: 10 MS/s |
| Recording methods |
Normal: Normal waveform recording
Envelope: Record maximum and minimum values every fixed period |
| Storage memory capacity |
1 G-words |
| Removable storage |
SD memory card ×1, USB memory ×7, SSD/HDD (built in the main unit) ×1
FTP transmission (to LAN-connected computer) *Use only Storage Media sold by HIOKI. |
| Display |
12.1 inch XGA-TFT color LCD (1024 × 768 dots) |
| External interfaces |
LAN, USB, SD, SATA, Monitor output |
| Power supply |
100 to 240 V AC (50/60 Hz) (300 VA max.) |
| Dimensions and mass |
353 mm (13.9 in)W × 235 mm (9.25 in)H × 154.8 mm (6.09 in)D, 6.5 kg (229.3 oz) (main unit only) |
| Included accessories |
Power cord ×1, Quick start manual ×1, Precautions conserning use ×1, Application disk (CD-R) ×1, Instruction manual (CD-R, detail and calculation) ×1 , Blank panel (for blank slots only) |
