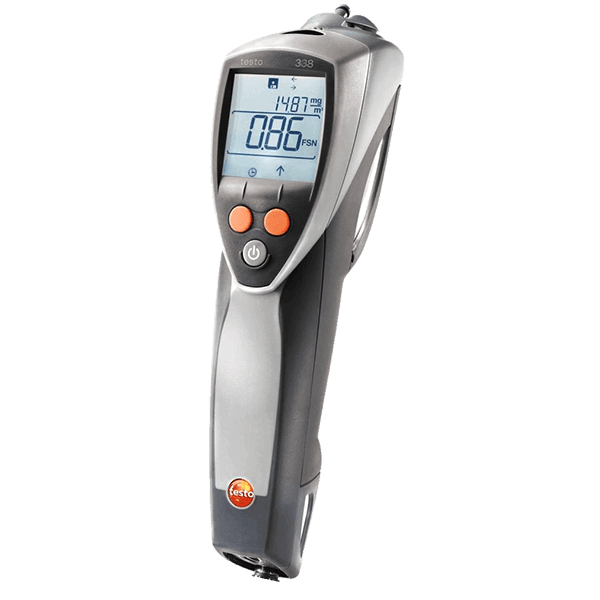

Testo 338 Smoke tester is rugged reliable and very productive. For diesel engines, the smoke has an effect on is an important parameter, not by yourself for evaluating emissions, but plus for the modify adaptation of the fuel injection. With the smoke tester testo 338, the approach of the degree of blackening is revolutionarily easy; no stationary measurement equipment, no analysis electronics back just one portable one-hand measuring instrument.
Key Features: Testo 338 Smoke tester
-
Handy and robust Easily possible to carry to the desired application site
-
Determination of soot concentration (mg/m3) as well as Filter Smoke Number (FSN) or Bosch number
-
Easy one-handed operation
-
Direct analysis and display of measurement values, optional on-site printout of data with Testo fast printer
Specifications: Testo 338 Smoke tester
| Soot Concentration | |
|---|---|
|
Measuring Range |
0 to 70 mg/m³ |
|
Resolution |
0.01 mg/m³ |
|
Wiederholung |
< 1.5 mg/m³ (0 to 5 mg/m³) < 1.25 mg/m³ +5 % of mv (5 to 70 mg/m³) |
| FSN Bosch Number | |
|---|---|
|
Measuring Range |
0 to 2.5 * |
|
Resolution |
0.01 * |
|
Wiederholung |
< 0.08 FSN * |
*at reference conditions 1000 mbar, +25 °C
| General technical data | |
|---|---|
|
Protection class |
IP 40, TopSafe |
|
Interface |
IRDA / optional Bluetooth |
|
Memory |
200 measuring values |
|
Storage battery type |
Lithium ion |
|
Battery life |
approx. 4 h cont. operation |
|
Application temperature |
Individual measurements up to +500 °C |
|
Max. pos. press./flue gas |
300 mbar* |
|
Test sample volume |
0.4 litres (range: 0 to 0.3 FSN); 0.2 litres (range: 0.2 to 2 FSN) |
|
Meeasurement period |
˂ 60 s per measurement cycle |
|
Flow-through measurement |
Differential pressure sensor |
|
Optical sensor |
Opacity of the filter load in % |
*at higher pressures, a higher measurement inaccuracy occurs
