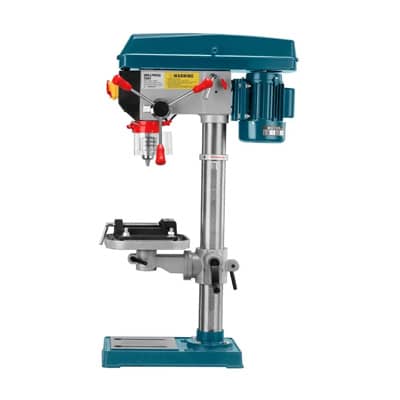

Ronix 2604 Electric Drill Press 550W-16mm:
The Ronix 2604 Drill Press has a 550W motor with 16-speed settings and overload protection to prevent motor damage. Offering 16 pulley speeds for drilling into wood or metal makes the Ronix 2604 drill press a versatile and practical tool for operators.
The tool’s wide, heavy-duty feed handles provide increased leverage and control over the tool. The chuck includes a 3mm to 16mm adjustable keyed chuck for increased bit capacity. This chuck size is ideal for all applications. There is also a rack and pinion adjustable table for easy and accurate height adjustment and 0-45° (L&R) tilt capability for angled drilling. To reinforce the body of this drill, the working table and base are made of iron cast. The operator’s safety for the chuck is provided by a guard, which allows the user to operate more efficiently and effectively.
Are you trying to find a perfect set of drill machines? Yes, you are in the right place at the right time. Tools Bangladesh provides testing materials and equipment. You may purchase your desired tool from us in Bangladesh at a reasonable price with the greatest shipping options.
Key Features:
- 16 pulley speeds for drilling in to wood or metal
- Large, heavy-duty feed handles for increased leverage and maximum control
- 3 – 16mm adjustable keyed chuck for greater bit capacity
- Rack and pinion table for easy and accurate height adjustment includes with 0-45˚(L&R) tilt ability for angled drilling
- Cast Aluminum belt Pulley
- Cast iron working tableAnd base
- Front Emergency Switch
- CHUCK GUARD
- 4'' Bench vise
Specifications:
| Model |
2604 |
| Power |
550W |
| Chuck Capacity |
3-16mm |
| Voltage |
220-240V |
| Drill Capacity wood |
35mm |
| Frequency |
50-60Hz |
| Drill Capacity steel |
16mm |
| Drill Capacity Plastic |
25mm |
| Spindle Travel |
80mm |
| Class of Speed |
16 |
| Speed |
180-2770RPM |
| Spindle Taper |
MT2 |
| Distance from Spindle Axis to the Column |
162.5mm |
| Distance from Spindle End to the Surface of Table |
450mm |
| Distance from Spindle End to the Surface of Base |
630mm |
| Swing |
325mm |
| Table Size |
250*250 |
| Base Size |
250*420 |
| Column Diameter |
72mm |
| Height |
980mm |
| Weight |
39Kg |
| Includes |
Base, Bench vice, Chuck and chuck key, Pulley cover tip and nut, Handle, working table, Column, Chuck guard, Crank, Collar back, Rack |
| Supplied In |
Ronix color box |
