Strong Anti-Noise Availability. PoE Switches & STP Wire Tracing up to 3KM. Telephone Line Status/Polarity Indication. Cable Mapping & Status Indication-up to 300M.

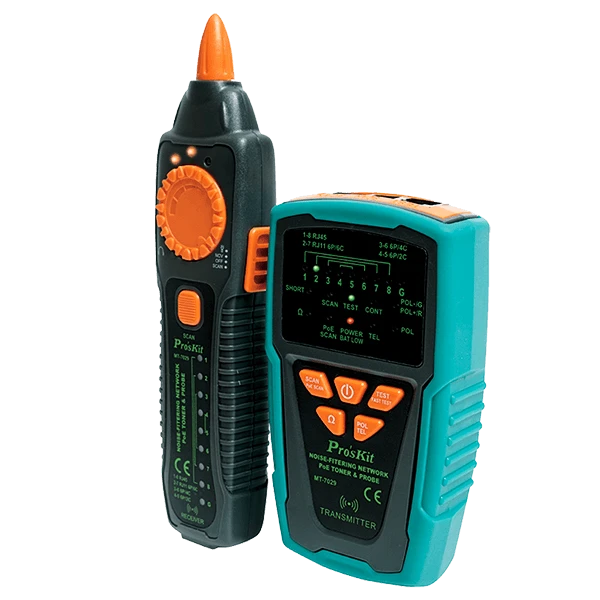

Key Features: Proskit MT-7029 Noise-Filtering NetworkPoE Toner & Probe
Strong Anti-Noise Availability
- With EMI filters to eliminate high-frequency noise allows you to track wire easily and quickly
Telephone Line Status/Polarity Indication
- Identify the telephone line polarity easily and detect statuses such as severed lines, off-hook condition, or incoming call ringing
PoE Switches & STP Wire Tracing up to 3KM
- Ideal for tracking live Ethernet cables as well as STP cable and determining continuity of network
Cable Mapping & Status Indication up to 300M
- Fast/Slow scan function.
- Display the result of pin to pin cable mapping
- Display cable status and troubleshoot wiring
- for continuity, shorts, opens and crossover
Non- Contact Voltage Detecting
Specifications: Proskit MT-7029 Noise-Filtering NetworkPoE Toner & Probe
| MT-7029 Transmitter specifications | |
| Tone frequency | 130KHz |
| Max. distance of transmission& cable map | 3km&300m |
| Tone mode | Single tone |
| Compatible connectors | for RJ45(8 pin)/RJ11(6 pin) cable map test RJ45 SCAN socket : for RJ45 locating Individual wire pairs RJ11 SCAN socket: for RJ11 locating Individual wire pairs |
| Cable types tested | RJ45 Lan cable Cat 5、5e、6(UTP/ STP)、RJ11/12 Telephone cable Cat 3 (6P/2C/4C/6C) |
| Continuity test | 1 LED (≦300Ω), Coaxial cable & normal solid/ Stranded wire by alligator clips patch cord. |
| Cable map & shielded indication | 8 LEDs Fast/slow dual speed, 1 LED |
| Phone line polarity indication | 1 Dual color LED |
| Telephone line status indication | 1 Dual color LED |
| Network scan & PoE scan | 1 LED&1 LED |
| EMI filter(network scan & PoE scan) | YES |
| Other function | Live telecommunication equipment test and router test, voltage protection DC 48V, auto power off, low battery display |
| Battery type | DC 9V (NEDA 1604/6F22) x1 pcs (not included) |
| Dimension (L×W×D) | 138×80×35 mm |
| MT-7029 Receiver specifications | |
| Frequency | 130KHz |
| Compatible connectors | RJ45(8 pin)/RJ11(6 pin) |
| Signal status indication | 1 dual color LED & buzzer, building ear jack |
| Cable map& shielded indication | 8 LEDs&1 LED |
| NCV indication | 1 LED (AC90~1000V) |
| LED illumination | 1 LED |
| Battery type | 9V DC (NEDA 1604/6F22) x1 pc (not included) |
| Dimension (L×W×D) | 203×50×32 mm |
| Accessories | RJ45 cable patch cords、RJ11 cable patch cords、RJ11 to alligator clips patch cord,earphone, storage bag, user manual |
Includes: Proskit MT-7029 Noise-Filtering NetworkPoE Toner & Probe
- Proskit MT-7029 Noise-Filtering NetworkPoE Toner & Probe
