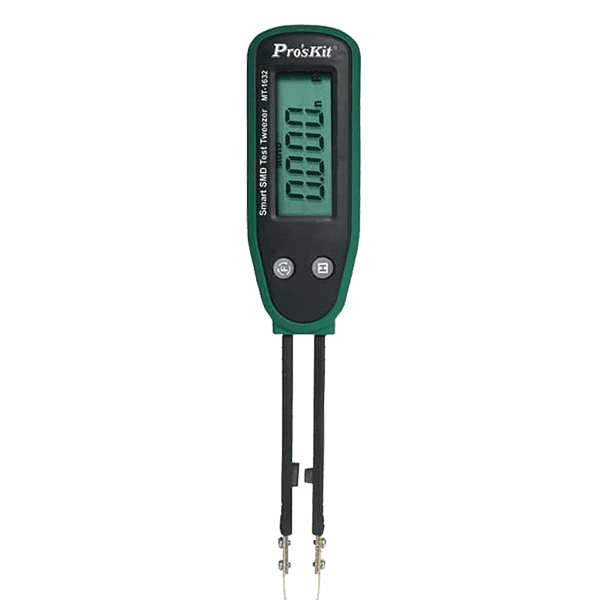

Proskit MT-1632 Smart SMD Test Tweezer
Tools Solution
Proskit MT-1632 Smart SMD Test Tweezer
In stock
MT-1632 is a digital tester built for testing and troubleshooting SMD (Surface Mounted Device) Tests Resistance, Diode Capacitance, Continuity Golden Tweezer Tip.
Key Features: Proskit MT-1632 Smart SMD Test Tweezer
- 3 2/3 digits 2999 counts display
- Auto / Manual Range
- Special handle stopper and V shape tip design for better grasping small parts
- Designed with golden plated tweezer tip, provides precise and excellent sensitivity for highly accurate results.
- Tests for resistance, capacitance, diode and continuity
- Data hold and auto power off function
- A extra pair tip and carrying case are included
Specifications: Proskit MT-1632 Smart SMD Test Tweezer
| Specifications | MT-1632 |
| Resistance | 300Ω/3KΩ/30K/300K/3MΩ±(1%rdg+ 2dgt) 30MΩ±(1.2rd%+3dgt) Resolution: 0.1Ω |
| Capacitance | 3nF/30nF/300nF/3uF/30uF±(2.5%rdg+ 3dgt) 300uF/3mF/30mF±(3%rdg+ 3dgt) Resolution: 1pF |
| Diode Test | Open voltage : 2.8V |
| Continuity | Testing Current : 2mA |
| Check | Resistance < 30Ω, Buzzer will sound |
| Power Source | 1 x 3V CR2032 cell |
| Auto power off | 10 minutes after idling |
| Extra functions | Data Hold, Low battery indication |
| Dimension | 170x32x30mm |
| Accessories | Carrying case and 1 extra pair replacement tip |
Includes: Proskit MT-1632 Smart SMD Test Tweezer
- Proskit MT-1632 Smart SMD Test Tweezer
