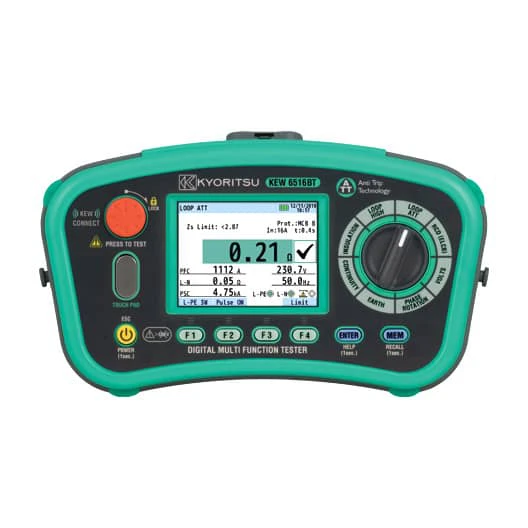

Name: KYORITSU KEW 6516BT MULTI FUNCTION INSTALLATION TESTER
Brand: Kyoritsu
Availability: InStock

Shop	:	Tools Bangladesh
Product ID	:	3765
Brand	:	Kyoritsu
Availability	:	In Stock
Price BDT	:	0.00 Taka
Reviews	:
Share	:

Add To Cart

Customer Support
+8801965656380
Cash One Delivery
Pay after getting the product on hand
Warranty
1 Year warranty by manufacturer
Secured Payment Method
Your cart is always secure to shop
Easy Return Policy
7 days return without physical defect.

KYORITSU KEW 6516BT MULTI FUNCTION INSTALLATION TESTER:

The KYORITSU KEW 6516BT is a compact, versatile multi-function installation tester designed for electrical safety checks. It performs multiple tests, including insulation resistance, continuity, and loop impedance, ensuring compliance with electrical standards. With Bluetooth connectivity, the KEW 6516BT allows easy data transfer and remote monitoring, making it ideal for efficient, accurate testing in various industrial and commercial environments.

Are you trying to find a good, Insulation Tester? Yes, this is the perfect moment and place for you. Tools Bangladesh is offering testing supplies and tools in Bangladesh. As a result, You could be able to purchase the desired tool from us in Bangladesh with the most affordable price and delivery options.

Key Features:

DISPLAY
Color LCD 3.5 inches dot matrix.
ATT
Anti-Trip Technology (with 2 & 3 wire) for no trip LOOP L-PE testing on all RCDs.
With 2 wire only, very useful in case of no Neutral (i.e. 3-phase motor lines).
LOOP
・High test current range of 2Ω with 0.001Ω resolution.
・Zs Limit compares the values required by Electrical Installations Standard with measured results.
RCD
・Type AC, A, F, B(General & Selective), EV and Variable RCDs.
・Single and Auto test, Ramp test and Contact voltage.
EARTH
Earth resistance test 2 and 3 wires with all accessories included.
INSULATION
Resistance test 100, 250, 500 & 1000V with auto discharge voltage.
CONTINUITY
Continuity test at 200mA or 15mA with selectable buzzer for fast judgment.
PHASE ROTATION
On 3-phase lines with clear indication of the sequence on the display.
VOLTS
TRMS Voltage measurements 2-600V, Mains Frequency.
HELP
Display shows how to connect the instrument according to the function selected.
SPD
Surge Protection Device test, for SPD that uses varistor.
PAT
Portable Appliance Tester function, for Insulation and Protective conductor resistance test
Bluetooth
Communication by "KEW CONNECT"
SAFETY
IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V, IEC 61557-1,2,3,4,5,6,7,10.

Specifications:

Insulation resistance							SPD (Varistor)
Test voltage			100V	250V	500V	1000V	Max.1000V
Measuring ranges			2.000/20.00/200.0MΩ (Auto-ranging)		20.00/200.0/ 1000MΩ (Auto-ranging)	20.00/200.0/ 2000MΩ (Auto-ranging)	0-1049V (goes up by 1V)
Accuracy			±2%rdg±6dgt (2.000/20.00MΩ) ±5%rdg±6dgt (200.0MΩ)		±2%rdg±6dgt (20.00/200.0MΩ) ±5%rdg±6dgt (1000MΩ)	±2%rdg±6dgt (20.00/200.0MΩ) ±5%rdg±6dgt (2000MΩ)	±5%rdg±5dgt
Rated current			1.0-1.2mA @0.1MΩ	1.0-1.2mA @0.25MΩ	1.0-1.2mA @0.5MΩ	1.0-1.2mA @1MΩ	‐
Output short circuit current			1.5mA max				‐
Loop impedance
Function			LOOP ATT		LOOP HIGH
Function			L-PE/L-N (3wire)	L-PE (2wire)	L-PE (0.01ΩRes)	L-PE (0.001ΩRes) High test current (25A)	L-N/L-L
Rated voltage			100-260V (50/60Hz)	48-260V (50/60Hz)	48-260V (50/60Hz)	100-260V (50/60Hz)	48-500V (50/60Hz)
Impedance range			20.00/200.0/2000Ω (Auto-ranging)		20.00/200.0/2000Ω (Auto-ranging)	2.000Ω	20.00Ω
Accuracy			±3%rdg±6dgt	±3%rdg±10dgt	±3%rdg±4dgt	±3%rdg±25mΩ	±3%rdg±4dgt
Nominal test current at 0Ω external loop: Magnitude/ Duration at 230V			L-N:6A/60ms N-PE:10mA	L-PE:15mA	20Ω: 6A/20ms 200Ω: 0.5A/20ms 2000Ω: 15mA/500ms	25A/20ms	6A/20ms
PSC/PFC
Range			2000A/20kA (L-N(PSC)/L-PE(PFC))	2000A/20kA (PFC)	2000A/20kA (PFC)	2000A/50kA (PFC)	2000A/20kA (PSC)
Accuracy			PSC/PFC accuracy is derived from measured loop impedance specification and measured voltage specification
RCD
Rated voltage			100-260V(50/60Hz)
Function			x1/2, x1,x5,Ramp,Auto,Uc
Function			6/10/30/100/300/500/1000mA/variable
RCD type			AC(G/S)	A(G/S)	F(G/S)	B(G/S)	EV
Trip current setting		x1/2, x1,Uc	10/30/100/300/ 500/1000mA(G) 10/30/100/ 300/500(S)	10/30/100/ 300/500mA	10/30/100/ 300/500mA	10/30/100/ 300mA	6mA (x1 only)
		x5	10/30/100mA	10/30/100mA	10/30/100mA	10/30mA	-
		Ramp	10/30/100/ 300/500mA	10/30/100/ 300/500mA	10/30/100/ 300/500mA	10/30/100/ 300mA	6mA
Accuracy	Trip current	x1/2	-8 - -2%	-10 - 0%	-10 - 0%	-10 - 0%	-
		x1	+2 - +8%	0 - +10%	0 - +10%	0 - +10%	0 - +10%
		x5	+2 - +8%	0 - +10%	0 - +10%	0 - +10%	-
		Ramp	-4 - +4%	-10 - +10%	-10 - +10%	-10 - +10%	-10 - +10%
	Trip time	x1/2	2000ms(G/S):±1%rdg±2ms				-
		x1	550ms(G):±1%rdg±2ms,1000ms(S):±1%rdg±2ms				10.5s:±1%±2㎳
		x5	410ms(G/S):±1%rdg±2ms				-
Continuity
Range			20.00/200.0/2000Ω (Auto-ranging)
Open circuit voltage(DC)			7-14V
Measuring current	200mA		200mA or more(2Ω or less)
Measuring current	15mA		15mA±3mA(short-circuit)
Accuracy			±2%rdg±8dgt
Volts
Range			300.0/600V(Auto-ranging)
Measuring ranges	Volts		2-600V
Measuring ranges	Frequency		45-65Hz
Accuracy	Volts		±2%rdg±4dgt
Accuracy	Frequency		±0.5%rdg±2dgt
Phase Rotation
Rated voltage			48-600V(45-65Hz)
Remarks			Remarks Correct phase sequence: are displayed “1.2.3” and mark Reversed phase sequence: are displayed “3.2.1” and mark
Earth
Range			20.00/200.0/2000Ω(Au to-ranging)
Accuracy			±2%rdg±0.08Ω(20.00Ω) ±2%rdg±3dgt(200.0/2000Ω)
General
Applicable standards			IEC 61010-1 CAT IV 300V / CAT III 600 V Pollution degree 2 IEC 61010-2-034, IEC 61557-1,2,3,4,5,6,7,10 IEC 60529(IP40), IEC 61326(EMC)
Communication interface			USB, Bluetooth® 5.0
Power source			LR6 (AA) (1.5V) ×8
Communication interface			USB
Dimension / Weight			136(L) × 235(W) × 114(D) mm / 1350g (including batteries)
Accessories			Mains test lead*1 7281 (Test leads with remote control switch) 7246 (Distribution board test lead) 7228A (Earth resistance test leads) 8041 (Auxiliary earth spikes[2 spikes/1 set]) 9084 (Soft case) 9142 (Carrying case) 9151 (Shoulder strap) 9199 (Shoulder pad) LR6(AA) × 8 Instruction manual Calibration certificate
Optional Accessories			8212-USB (USB adapter) 8259 (Adapter for measurement terminal) 7272 (Precision measurement cord set) 8017A (Extension prod long) 8602 (EVSE ADAPETER)
