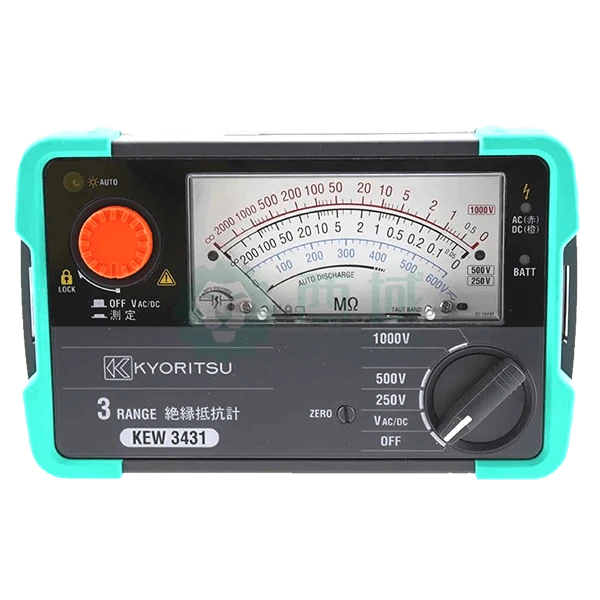

Kyoritsu KEW 3431 Analogue Insulation Testers are rugged reliable and very productive. The Kyoritsu KEW 3431 is Instruction Manual. Compact Insulation resistance tester. KEW3431. Return the instrument to your local KYORITSU distributor.
Features
Key Features: Kyoritsu KEW 3431 Analogue Insulation Testers
• Extremely compact and lightweight design.
• Automatic sensor turns the illuminated scale and LED spot light ON/OFF, useful in dimly lit location.
• Standard accessories include test probe with remote control switch and protective carry case.
• Live circuit warning with buzzer and flashing LED.
Specifications
Specifications: Kyoritsu KEW 3431 Analogue Insulation Testers
Insulation resistance |
|
Test voltage |
250V |
500V |
1000V |
Max. effective scale value |
200MΩ |
2000MΩ |
Mid-scale value |
5MΩ |
50MΩ |
First effective measuring ranges |
0.1MΩ - 100MΩ |
1MΩ - 1000MΩ |
Accuracy |
±5% of indicated value |
Second effective measuring ranges |
Measuring ranges other than above, 0 and ∞ |
Accuracy |
±10% of indicated value |
LED insulation state indicator indicating result by red / green color |
0.25MΩ |
0.5MΩ |
1MΩ |
Voltage measurement |
|
Voltage range |
AC 600V [45 - 65Hz]/DC 600V |
Accuracy |
±5% of full scale value |
Applicable Standards |
IEC 61010-1, 2-030 CAT Ⅲ 600V, IEC 61557-1, -2 |
IEC 61010-031, IEC 61326(EMC), EN 50581(RoHS) |
Power source |
LR6/R6(AA)(1.5V) × 4 |
Dimensions / Weight |
97(L) × 156(W) × 46(D)mm / 430g approx. |
Included Accessories |
7260(Test lead with remote control switch), |
7261(Test lead with alligator clip), 9173(Carrying case), |
8017A(Extension prod long), 9121(Shoulder strap), |
LR6(AA) × 4, Instruction manual |
Optional Accessories |
7243A(L-shaped probe), 8016(Hook type prod) |
