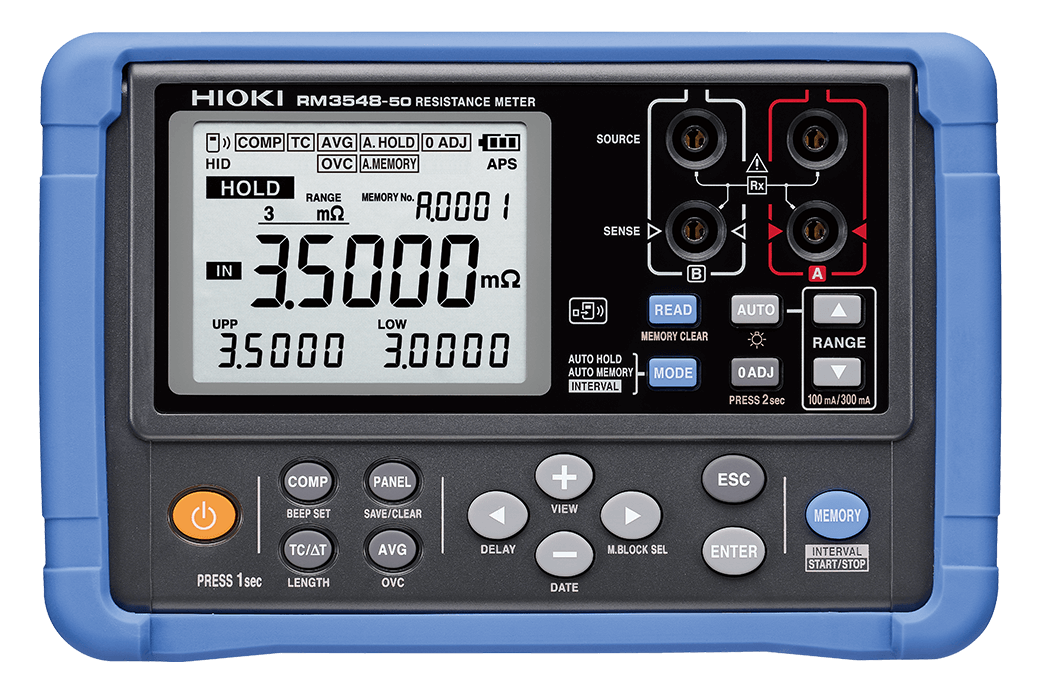

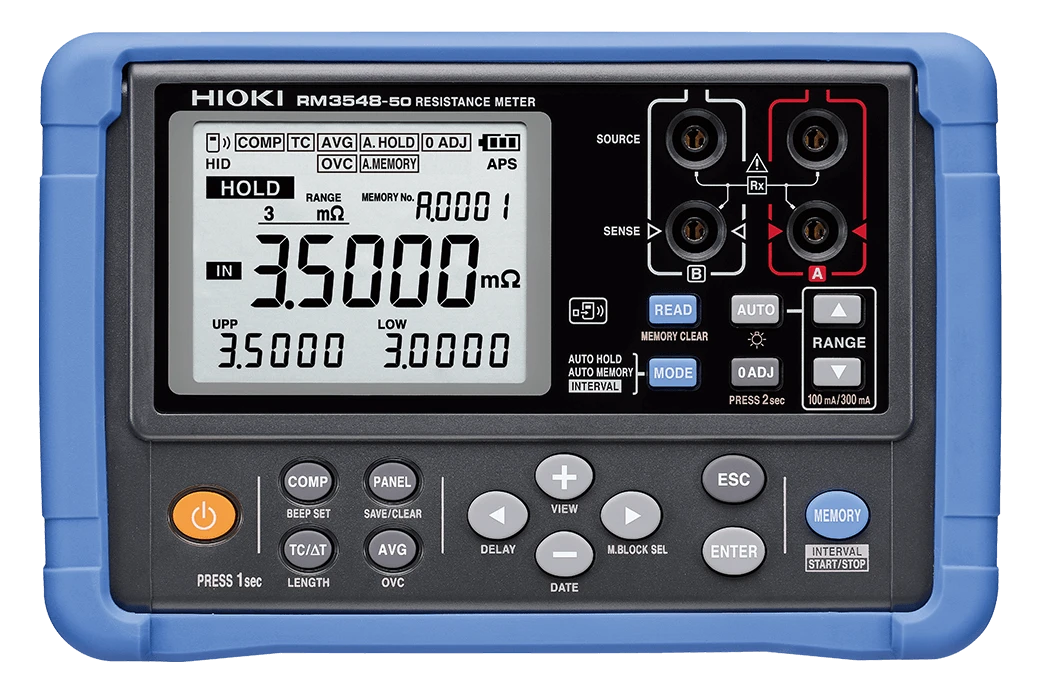

The RM3548-50 is a precision handheld resistance meter measuring from 0.1 µΩ to 3.5 MΩ. It offers effortless operation and accuracy, making it ideal for EV maintenance, aircraft overhaul, and motor inspections.
Get the best deal on HIOKI RESISTANCE METER RM3548-50 Price in Bangladesh. Reliable, accurate, and durable resistance measurement tool perfect for professionals. Find competitive prices and genuine products to ensure top performance. Explore now for the latest HIOKI RESISTANCE METER RM3548-50 Price in Bangladesh offers.
Key Features
- 0.02% basic accuracy, 0.1 µΩ max. resolution, 1 A max. testing current
- Measure from 0.1 µΩ (testing current 1 A) to 3.5 MΩ
- Automatic temperature correction ensures accurate results & faster testing
- Advanced Connectivity: seamlessly integrate data with Excel® and a mobile app to manage & analyze data efficiently (*1)
- Protections for safe operation: halts operation & triggers alerts when incorrect voltage inputs are detected
- Versatile Applications: Ideal for EV, aircraft, & motor/transformer maintenance with various probe options
Basic specifications
Accuracy guaranteed: 1 year
| Resistance range |
3 mΩ (3.5000 mΩ display Max., 0.1 µΩ resolution) to 3 MΩ range (3.5000 MΩ display Max., 100 Ω resolution), 10 steps
Measurement accuracy: ±0.020 % rdg. ±0.007 % f.s. |
| Testing current |
[at 3 mΩ range] 1 A DC to [at 3 MΩ range] 500 nA DC |
| Open-terminal voltage |
5.5 V DC max. |
| Temperature measurement |
-10.0°C to 99.9°C, accuracy: ±0.5°C (Temperature Sensor Z2002 and RM3548-50 combined accuracy) |
| Measurement speed |
Fixed |
| Display refresh rate |
Without OVC: approx. 100 ms
With OVC: approx. 230 ms |
| Functions |
Temperature correction, temperature conversion, offset voltage compensation (OVC), comparator (ABS/REF%), length conversion, judgment sound setting, auto hold, auto power save (APS), Averaging, panel store/panel load, USB communication interface (RM3548-50 internal memory is recognized as a mass storage device when connected to a PC), wireless communication via Bluetooth® (Z3210 is necessary) |
| Memory storage |
Number of recordable data points: up to 1000 for manual/auto, up to 6000 for interval
Interval: 0.2 s to 10.0 s (0.2 s step)
Acquisition of data from memory: display, USB mass storage (CSV, TXT files) |
| Power supply |
LR6 alkaline batteries × 8
HR6 nickel-metal hydride batteries × 8
Continuous use: approx. 10 hours (under our company’s conditions)
Rated voltage: 5 VA max. |
| Dimensions and weight |
Approx. 199 mm (7.8 in.) W × 132 mm (5.2 in.) H × 60 mm (2.4 in.) D (including the protector)
Approx. 890 g (31.4 oz) (including the batteries and protector) |
| Included accessories |
Clip Type Lead L2107 ×1, Temperature Sensor Z2002 ×1, Protector Z5041 ×1, LR6 alkaline battery ×8, Instruction Manual ×1, USB Cable (A to mini-B) ×1, Strap ×1, Spare fuse ×1 |
| Included accessories |
Clip Type Lead L2107 ×1, Temperature Sensor Z2002 ×1, Protector Z5041 ×1, LR6 alkaline battery ×8, Instruction Manual ×1, USB Cable (A to mini-B) ×1, Strap ×1, Spare fuse ×1 |
| Included accessories |
Clip Type Lead L2107 ×1, Temperature Sensor Z2002 ×1, Protector Z5041 ×1, LR6 alkaline battery ×8, Instruction Manual ×1, USB Cable (A to mini-B) ×1, Strap ×1, Spare fuse ×1 |
