HIOKI RESISTANCE METER RM3548

Home › Hioki
Thumbnail
Shop : Tools Bangladesh
Product ID : 4210
Brand : Hioki
Availability : Out of Stock
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

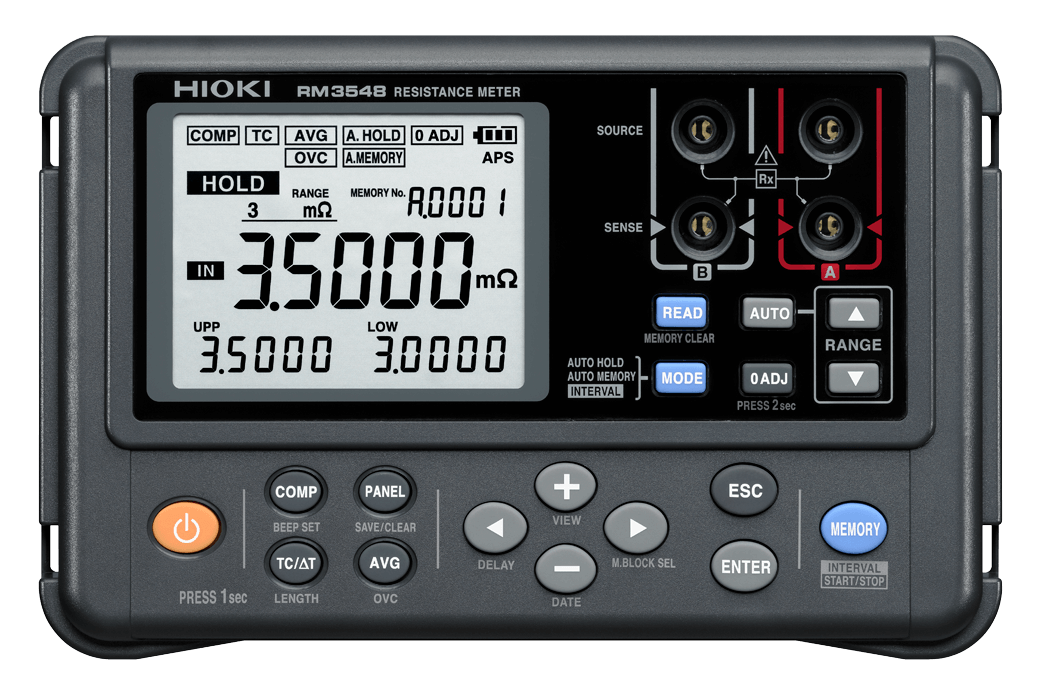

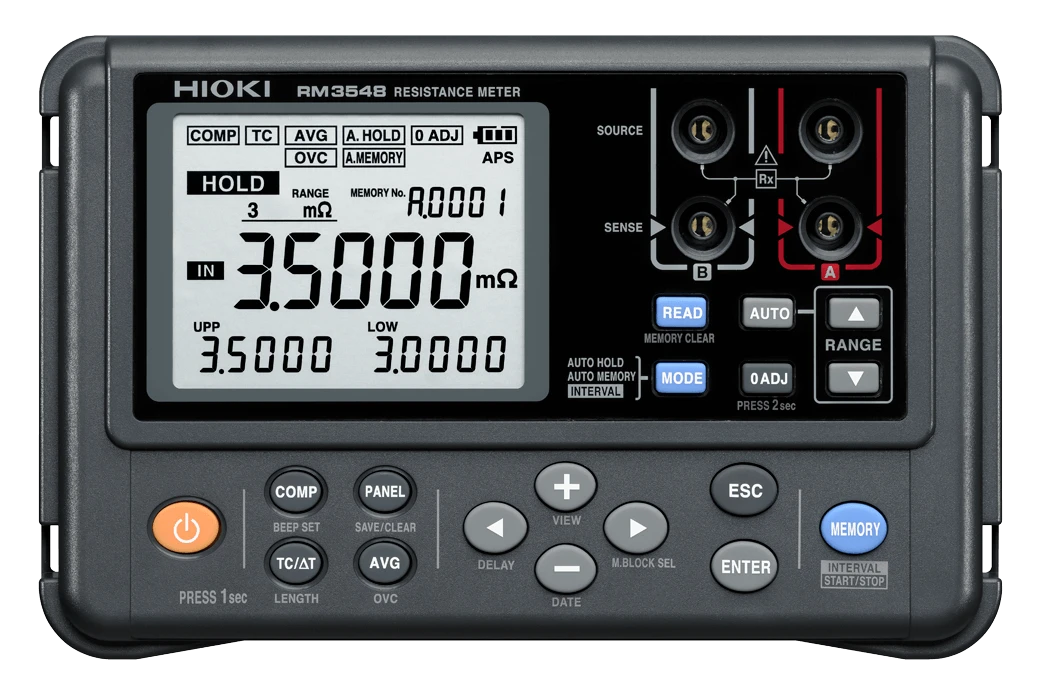

Hioki DC resistance meters measure a broad range of resistance values at a high level of precision. The RM3548 is a high-precision, portable resistance meter capable of measuring resistance levels from microohms to megaohms, and is ideal for the testing and maintenance of large equipment, for example, measuring the winding and weld resistances in large motors and stators for hybrid and electric vehicles.

Get accurate resistance measurements with the HIOKI RM3548. Ideal for industrial use, the HIOKI RESISTANCE METER RM3548 Price in Bangladesh offers great value with top-notch precision. This portable device ensures stable performance, making it a trusted choice for professionals in electrical testing and maintenance.

Key Features

  • 0.02 % basic accuracy, 0.1 μΩ max. resolution, 1A max. testing current
  • Measure from 0.0 μΩ (testing current 1 A) to 3.5 MΩ
  • Easily record up to 1,000 data points in memory simply by applying the instrument’s probes
  • Smoothly capture temperature-rise test data using interval measurement
  • Portable design is ideal for maintenance and testing of large equipment

Basic specifications

Accuracy guaranteed: 1 year

Resistance range 3 mΩ (3.5000 mΩ display Max., 0.1 µΩ resolution) to 3 MΩ range (3.5000 MΩ display Max., 100 Ω resolution), 10 steps
Measurement accuracy: ±0.020 % rdg. ±0.007 % f.s.
Testing current [at 3 mΩ range] 1 A DC to [at 3 MΩ range] 500 nA DC
Open-terminal voltage 5.5 V DC max.
Temperature measurement -10.0 to 99.9°C, accuracy: ±0.50°C (Temperature Sensor Z2002 and RM3548 combined accuracy)
Measurement speed Fixed
Display refresh rate Without OVC: approx. 100ms, With OVC: approx. 230ms
Functions Temperature correction, temperature conversion, offset voltage compensation (OVC), comparator (ABS/REF%), length conversion, judgment sound setting, auto hold, auto power save (APS),
Averaging, panel store/panel load, USB communication interface (RM3548 internal memory is recognized as a mass storage device when connected to a PC)
Memory storage Number of recordable data points: (manual/auto) Up to 1,000, (interval) Up to 6,000; Interval: 0.2 to 10.0s (0.2s steps); Acquisition of data from memory: display, USB mass storage (CSV, TXT files)
Power supply LR6 (AA) Alkaline batteries ×8, Continuous use: 10 hours (Under our company’s conditions), Rated power consumption: 5 VA max.
Dimensions and mass 192 mm (7.56 in) W × 121 mm (4.76 in) H × 55 mm (2.17 in) D, 770 g (27.2 oz)
Included accessories Clip type lead L2107 ×1, Temperature sensor Z2002 ×1, LR6 Alkaline battery ×8, Instruction manual ×1, USB Cable(A-to-mini B type) ×1, Strap ×1, Spare fuse ×1
Included accessories Clip type lead L2107 ×1, Temperature sensor Z2002 ×1, LR6 Alkaline battery ×8, Instruction manual ×1, USB Cable(A-to-mini B type) ×1, Strap ×1, Spare fuse ×1
Included accessories Clip type lead L2107 ×1, Temperature sensor Z2002 ×1, LR6 Alkaline battery ×8, Instruction manual ×1, USB Cable(A-to-mini B type) ×1, Strap ×1, Spare fuse ×1

Hioki DC resistance meters measure a broad range of resistance values at a high level of precision. The RM3548 is a high-precision, portable resistance meter capable of measuring resistance levels from microohms to megaohms, and is ideal for the testing and maintenance of large equipment, for example, measuring the winding and weld resistances in large motors and stators for hybrid and electric vehicles.

Get accurate resistance measurements with the HIOKI RM3548. Ideal for industrial use, the HIOKI RESISTANCE METER RM3548 Price in Bangladesh offers great value with top-notch precision. This portable device ensures stable performance, making it a trusted choice for professionals in electrical testing and maintenance.

Key Features

  • 0.02 % basic accuracy, 0.1 μΩ max. resolution, 1A max. testing current
  • Measure from 0.0 μΩ (testing current 1 A) to 3.5 MΩ
  • Easily record up to 1,000 data points in memory simply by applying the instrument’s probes
  • Smoothly capture temperature-rise test data using interval measurement
  • Portable design is ideal for maintenance and testing of large equipment

Basic specifications

Accuracy guaranteed: 1 year

Resistance range 3 mΩ (3.5000 mΩ display Max., 0.1 µΩ resolution) to 3 MΩ range (3.5000 MΩ display Max., 100 Ω resolution), 10 steps
Measurement accuracy: ±0.020 % rdg. ±0.007 % f.s.
Testing current [at 3 mΩ range] 1 A DC to [at 3 MΩ range] 500 nA DC
Open-terminal voltage 5.5 V DC max.
Temperature measurement -10.0 to 99.9°C, accuracy: ±0.50°C (Temperature Sensor Z2002 and RM3548 combined accuracy)
Measurement speed Fixed
Display refresh rate Without OVC: approx. 100ms, With OVC: approx. 230ms
Functions Temperature correction, temperature conversion, offset voltage compensation (OVC), comparator (ABS/REF%), length conversion, judgment sound setting, auto hold, auto power save (APS),
Averaging, panel store/panel load, USB communication interface (RM3548 internal memory is recognized as a mass storage device when connected to a PC)
Memory storage Number of recordable data points: (manual/auto) Up to 1,000, (interval) Up to 6,000; Interval: 0.2 to 10.0s (0.2s steps); Acquisition of data from memory: display, USB mass storage (CSV, TXT files)
Power supply LR6 (AA) Alkaline batteries ×8, Continuous use: 10 hours (Under our company’s conditions), Rated power consumption: 5 VA max.
Dimensions and mass 192 mm (7.56 in) W × 121 mm (4.76 in) H × 55 mm (2.17 in) D, 770 g (27.2 oz)
Included accessories Clip type lead L2107 ×1, Temperature sensor Z2002 ×1, LR6 Alkaline battery ×8, Instruction manual ×1, USB Cable(A-to-mini B type) ×1, Strap ×1, Spare fuse ×1

Included accessories Clip type lead L2107 ×1, Temperature sensor Z2002 ×1, LR6 Alkaline battery ×8, Instruction manual ×1, USB Cable(A-to-mini B type) ×1, Strap ×1, Spare fuse ×1

Included accessories Clip type lead L2107 ×1, Temperature sensor Z2002 ×1, LR6 Alkaline battery ×8, Instruction manual ×1, USB Cable(A-to-mini B type) ×1, Strap ×1, Spare fuse ×1
