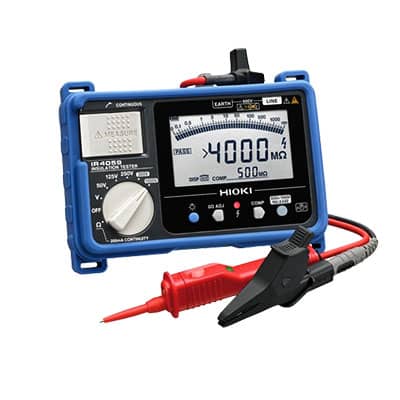

Hioki IR4059 INSULATION TESTER:
The IR4059 is a Bluetooth® compatible insulation tester. It has a 5-range, 50 V to 1000 V digital insulation resistance tester with a bar graph and delivers efficient functions and features to help shorten the work time associated with field insulation testing. Quick Response Comparator Offering Reading Stability in High-speed Digital Format.
Are you trying to find a good, Insulation Tester? Yes, this is the perfect moment and place for you. Tools Bangladesh is offering testing supplies and tools in Bangladesh. As a result, You could be able to purchase the desired tool from us in Bangladesh with the most affordable price and delivery options.
Key Features:
- 5-range testing voltage of 50 V/100 MΩ to 1000 V/4000 MΩ
- Digital bar graph
- Multi-functional test lead with remote switch improves work efficiency: flashlight, remote test start, LED light for PASS/FAIL notification.
- Stable and high-speed digital readings; 0.3 second response time for PASS/ FAIL judgment.
- Bright LED, luminous LCD, test lead (included accessory: L9788-10) with bright LED lamp to illuminate near hand.
- Continuity check via 200 mA testing
- Built in AC/DC voltage meter, useful for testing solar power generation systems and electric vehicles
- Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)
- Drop proof onto concrete from 1m (3.28 feet)
Specifications:
Accuracy guaranteed: 1 year
| Rated output voltage |
50 V DC |
125 V DC |
250 V DC |
500 V DC |
1000 V DC |
| Effective maximum indicated value |
100 MΩ |
250 MΩ |
500 MΩ |
2000 MΩ |
4000 MΩ |
Accuracy
1st effective measuring range MΩ |
±2 % rdg. ±2 dgt.
0.200 - 10.00 |
±2 % rdg. ±2 dgt.
0.200 - 25.0 |
±2 % rdg. ±2 dgt.
0.200 - 50.0 |
±2 % rdg. ±2 dgt.
0.200 - 500 |
±2 % rdg. ±2 dgt.
0.200 - 1000 |
| Lower limit resistance |
0.05 MΩ |
0.125 MΩ |
0.25 MΩ |
0.5 MΩ |
1 MΩ |
| Overload protection |
600 V AC (10s) |
660 V AC (10s) |
| DC voltage range |
4.2 V (0.001 V resolution) to 600 V (1 V resolution), 4 ranges,
Accuracy: ±1.3% rdg. ±4 dgt., Input resistance: 100 kΩ or higher |
| AC voltage range |
420 V (0.1 V resolution) / 600 V (1 V resolution), 2 ranges, 50/60 Hz,
Accuracy: ±2.3% rdg. ±8 dgt., Input resistance: 100 kΩ or higher, Average rectifier |
| Low resistance range |
For checking the continuity of ground wiring, 10 Ω (0.01 Ω resolution) to 1000 Ω (1 Ω resolution), 3 ranges, Basic accuracy: ±3 % rdg. ±2 dgt., testing current 200 mA or more (at 6 Ω or less) |
| Display |
Semi-transmissive FSTN LCD with back lighting, bar-graph indicator |
| Response time |
Approx. 0.3 second for PASS/FAIL decision (based on in-house testing) |
| Other functions |
Indicate MΩ measurement value after a lapse of one minute, Live circuit indicator, Automatic electric discharge, Automatic DC/AC detection, Comparator, Drop proof, Auto power save |
| Power supply |
LR6 (AA) alkaline batteries × 4, Continuous use: 20 hours (based on in-house testing)
Number of measurements: 1000 times (at 5 s ON, 25 s OFF cycle, insulation measurement of lower limit resistance value to maintain nominal output voltage) |
| Dimensions and mass |
160 mm (6.30 in) W × 98 mm (3.86 in) H× 46 mm (1.81 in) D, 536 g (18.9 oz) (including batteries, excluding test leads) |
| Included accessories |
Connection cable L4930 ×1, Alligator clip set L4935 ×1, Test pin set L4938 ×1, Neck strap ×1, Test lead set with remote switch
(Red) LR9788-10×1, Protector Z5042×1, Instruction manual ×1, LR6 (AA) alkaline batteries ×4 |
