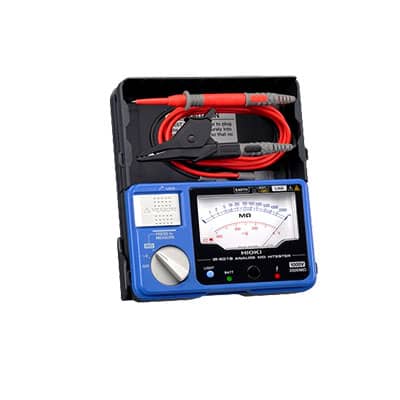

Hioki insulation testers or megohmmeters feature all-in-one designs including built-in rugged cases and test lead storage compartments. The IR4018-20 is a single-range, 1000V/2000MΩ analog insulation resistance tester with efficient functions and features to help shorten work time associated with field insulation testing.
Features
Hioki IR4018 ANALOG MΩ HiTESTER
- Single range testing voltage of 1000 V
- Test insulation resistance up to 2000 MΩ
- Built tough to withstand a 1-meter drop onto a concrete floor
- Bright LED luminous scale
- Check for live circuits and battery status
- Integrated hard case for quick and easy storage without disconnecting the leads
Specifications
Hioki IR4018 ANALOG MΩ HiTESTER
Rated output voltage |
1000 V DC |
Effective maximum indicated value |
2000 MΩ |
Accuracy 1st effective measuring range |
±5 % of indicated value 2 to 1000 MΩ |
Lower limit resistance |
1 MΩ (measurement resistance value to maintain testing voltage) |
Overload protection |
1200 V AC (10 sec.) |
AC voltage range |
0 to 600 V (50/60 Hz), ±5 % of maximum scale value accuracy, 500 kΩ or more input resistance |
Other functions |
Bright LED luminous scale, Drop proof (on concrete, 1 m/1 time), Battery check, Live circuit check, Auto discharge |
Power supply |
LR6 (AA) alkaline batteries ×4, Continuous use: 15 hours (no load) |
Dimensions and mass |
159 mm (6.26 in) W × 177 mm (6.97 in) H × 53 mm (2.09 in) D, 610 g (21.5 oz), (including battery, excluding test lead) |
Includes
Hioki IR4018 ANALOG MΩ HiTESTER
- Hioki IR4018 ANALOG MΩ HiTESTER
Accessories
Hioki IR4018 ANALOG MΩ HiTESTER
Accessories |
Test Lead L9787 ×1, LR6 (AA) alkaline batteries ×4, Instruction manual ×1, Shoulder strap ×1 |
